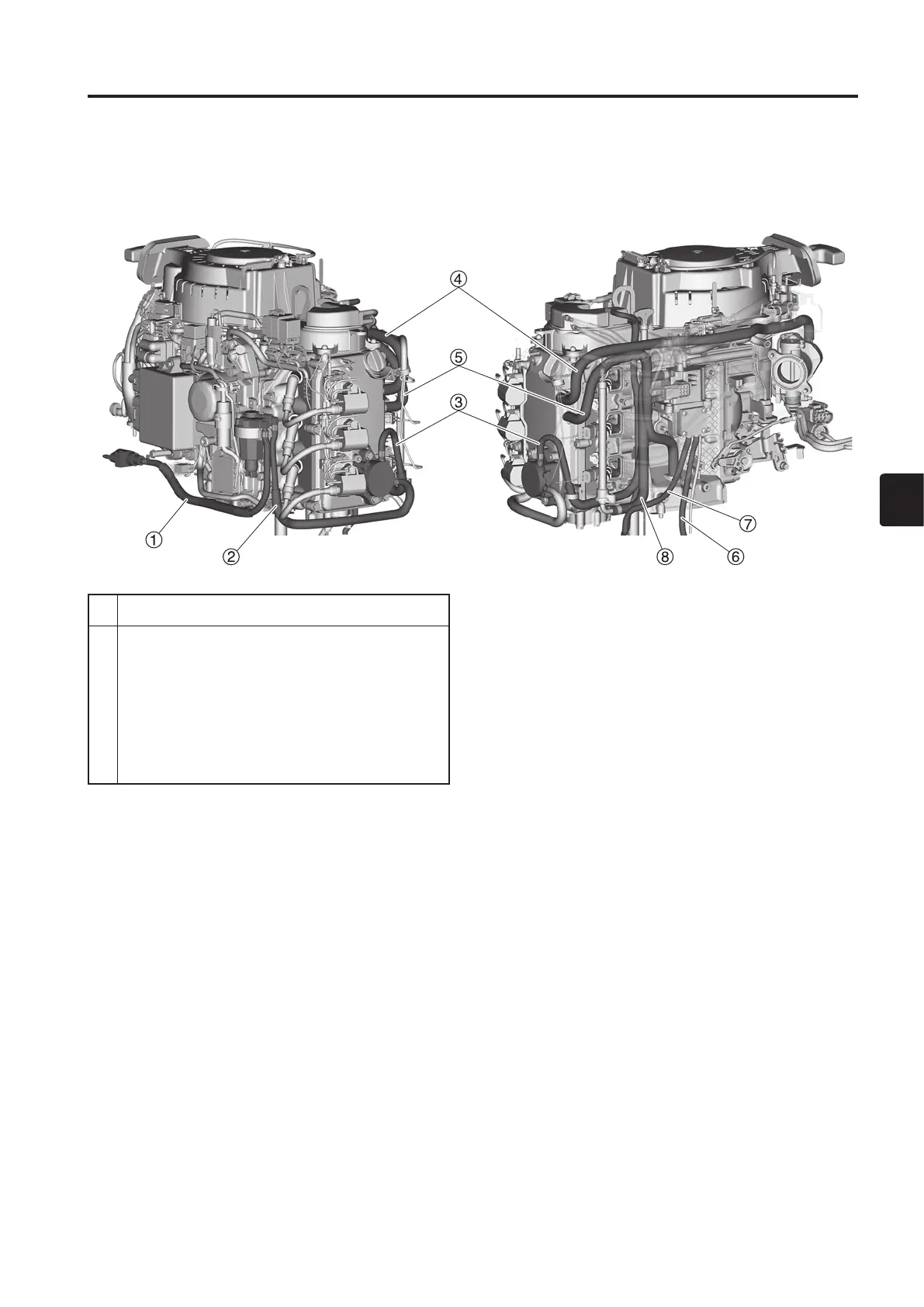

Piping Arrangement Diagram
Fuel Hose, Vent Hose, Breather Hose, Cooling Water Hose
Ref.
No.
Parts Name
1
Fuel Hose (Fuel Connector ¤ Fuel Filter)
2
Fuel Hose (Fuel Filter ¤ Fuel Pump)
3
Fuel Hose (Fuel Pump ¤ Vapor Separator)
4
Breather Hose (Cylinder Head ¤ Intake Silencer)
5
Breather Hose (Cylinder Head ¤ Cylinder Block)
6
Cooling Water Hose (Engine Base ¤ Fuel Cooler)
7
Cooling Water Hose (Fuel Cooler
¤
Cooling Water Check Port)
8
High Pressure Fuel Hose (Vapor Separator ¤ Fuel Rail)
To Next Page
