Bracket
7-28
4st 25/30 2022

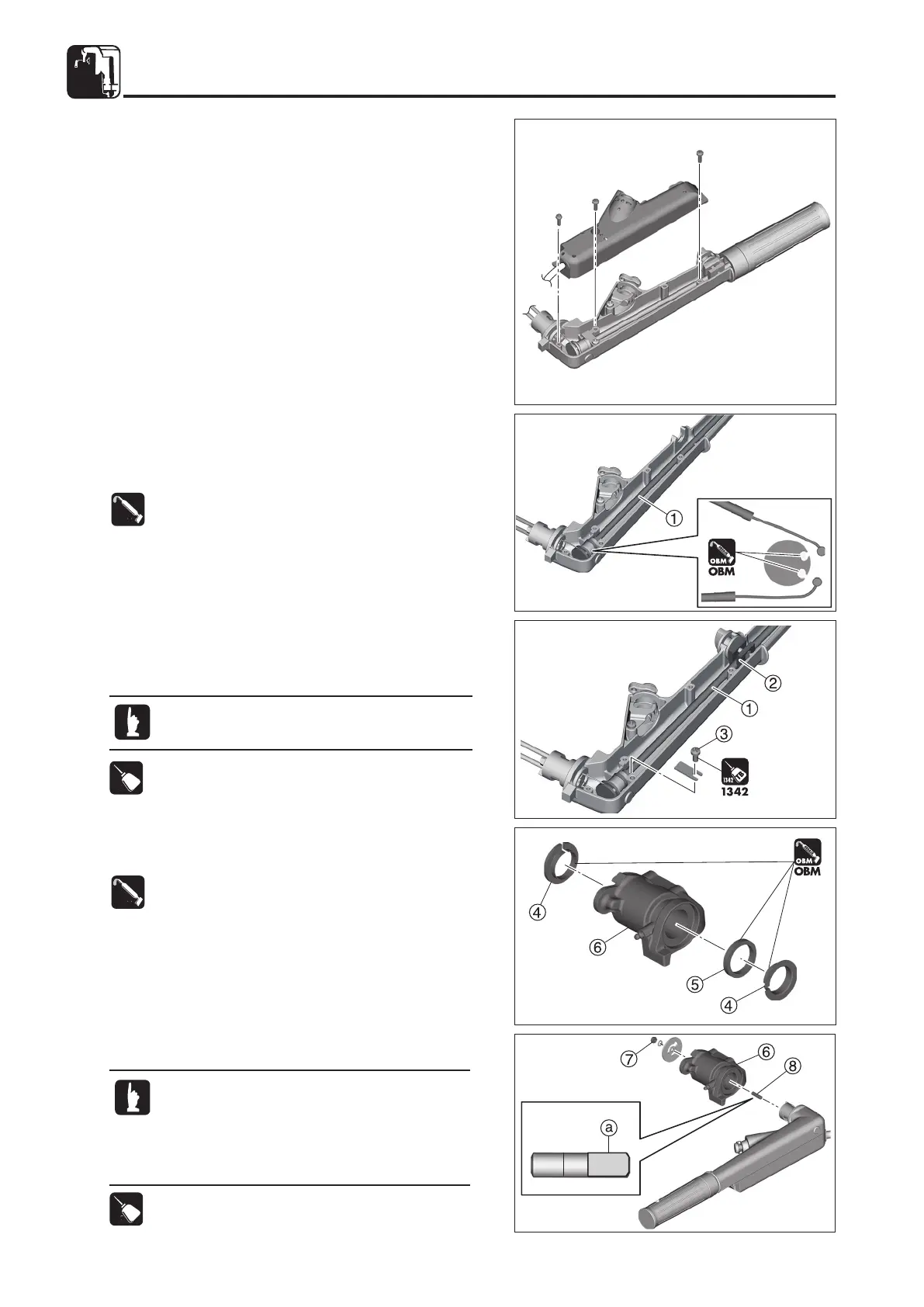

3. Inspection Items
1) Inspection of Throttle Cable and
Shift Cable
1. Check the operation of the throttle cable and shift cable.
2. Remove the tiller handle cover and check the cable inner
wire and outer wire for bending or damage. Replace if
necessary.
3. Operate the throttle fully closed and fully opened to check
whether the throttle drum is fully closed or fully opened.
GREASE
OBMOBM
OBM
2) Installation of Tiller Handle
1. Attach the cables to the throttle shaft 1 as shown in the
diagram.
3. Install the bushings 4 and washer 5 to the steering
bracket 6.
GREASE
OBMOBM
OBM
4. Attach the tiller handle assy to the steering bracket 6 and
tighten the nut 7 to the specified torque.
2. Install the throttle shaft 1 with the cable attached to the
tiller handle. Pay attention to the installation position of the
throttle friction 2.
TB
13421 342
1342
TB
13421 342
1342
Apply screw locking agent (ThreeBond 1342) to
the throttle shaft screw 3.
•
Apply a screw locking agent (ThreeBond 1342)
to the section a of the stud bolt 8.
•
Attach the section a of the stud bolt to the tiller
handle side.
•
Arrange the throttle cable as shown.
