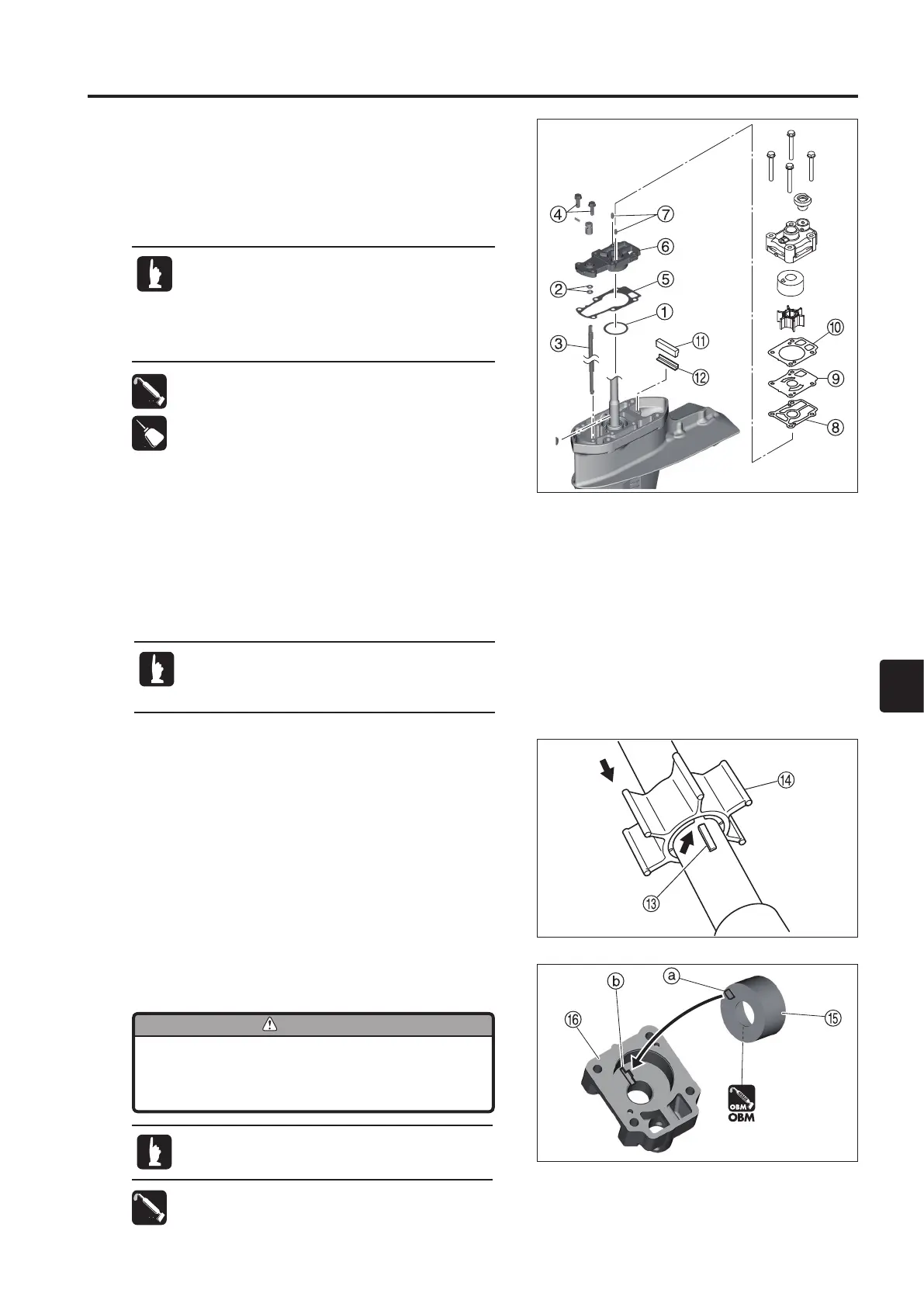

34) Installation of Pump Case
1. Install the adjusted shim 1.
2. Install the O-ring 2, cam rod 3, and bolts 4 to the pump
case (lower).
3. Install the gasket 5 and pump case (lower) 6 to the gear
case.
4. Install the dowel pin 7 to the pump case (lower), and
install the pump case guide plate gasket 8, pump case
guide plate 9, pump case gasket 0, water seal rubber q,
and water seal rubber plate w.
5. Install the water pump impeller key e to the drive shaft,
align the position with the key groove on the water pump
impeller r side, and install the impeller.
•
Apply OBM grease to the O-ring of the pump
case (lower).
•
Pay attention to the orientation of the cam rod.
•
Apply ThreeBond 1342 to the threads of the
pump case lower installation bolts.
Do not forget to install the water seal rubber and
the water seal plate. Failure to install these parts
results in a risk of insufficient cooling water.
6. Attach the water pump liner t to the pump case (upper)
y.
GREASE
OBMOBM
OBM
CAUTION
Align the protrusion
a
of the pump liner
with the recessed area
b
of the pump case
(upper)
y
.
Apply OBM grease to the inner side of the water
pump liner.
TB
13421 342
1342
