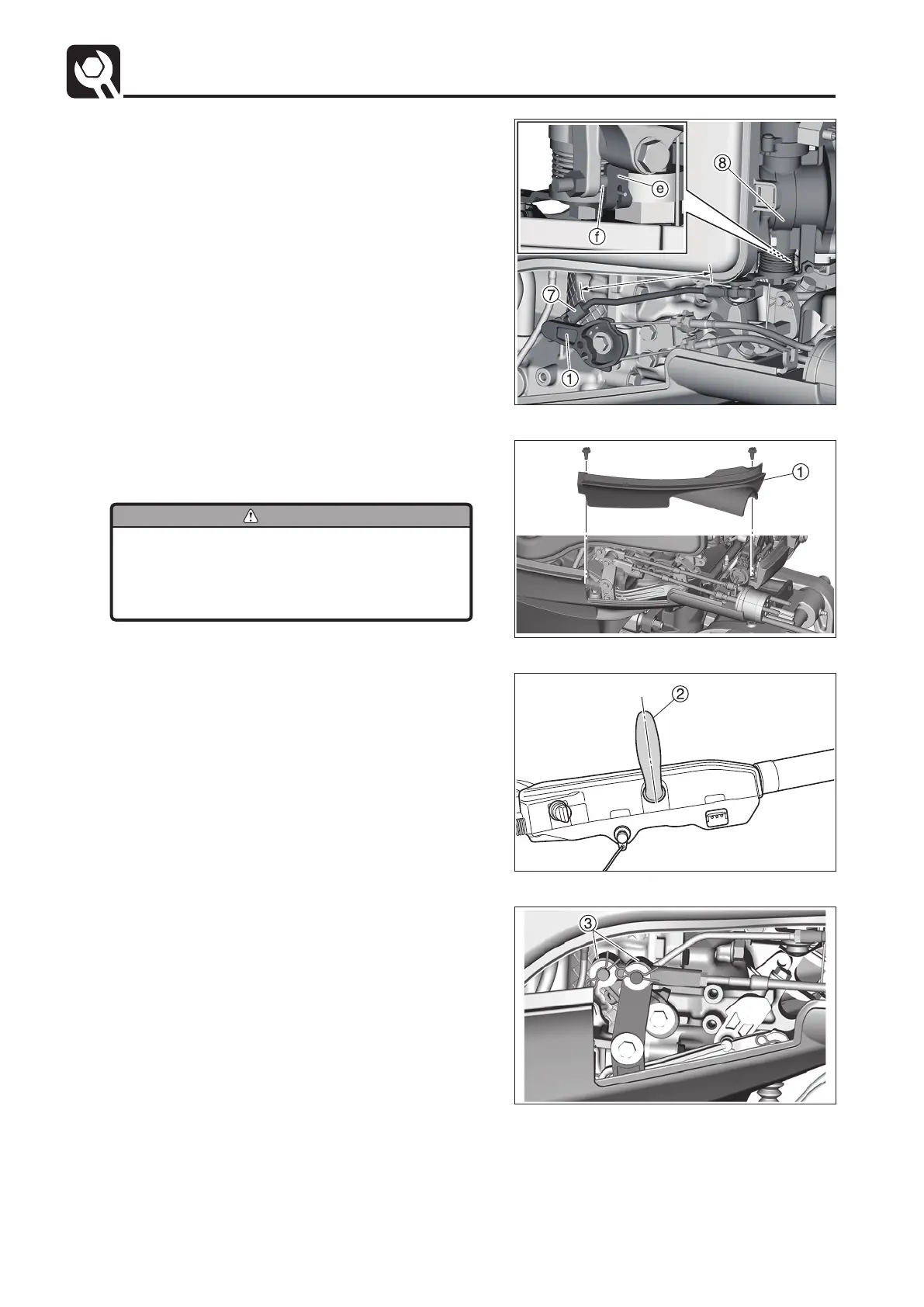

17) Adjustment of Shift • Throttle Cable
(Multi-Function Tiller Handle Model)
1. Remove the top cowl and remove the stay cover
1
.
2. Turn the shift lever
2
to the neutral position.
3. Remove cable joint
3
.
Shift operations cannot be carried
out unless the throttle is fully closed.
Operating it incorrectly may cause
damage.
N
6. Turn the throttle grip to its fully open and fully closed
positions several times to check.
5. Install the throttle link 7 on the throttle drum. Check that
the stopper e of the throttle valve contacts the stopper f
of the throttle body 8.
If not contacting, check standard length of throttle link.
To Next Page
