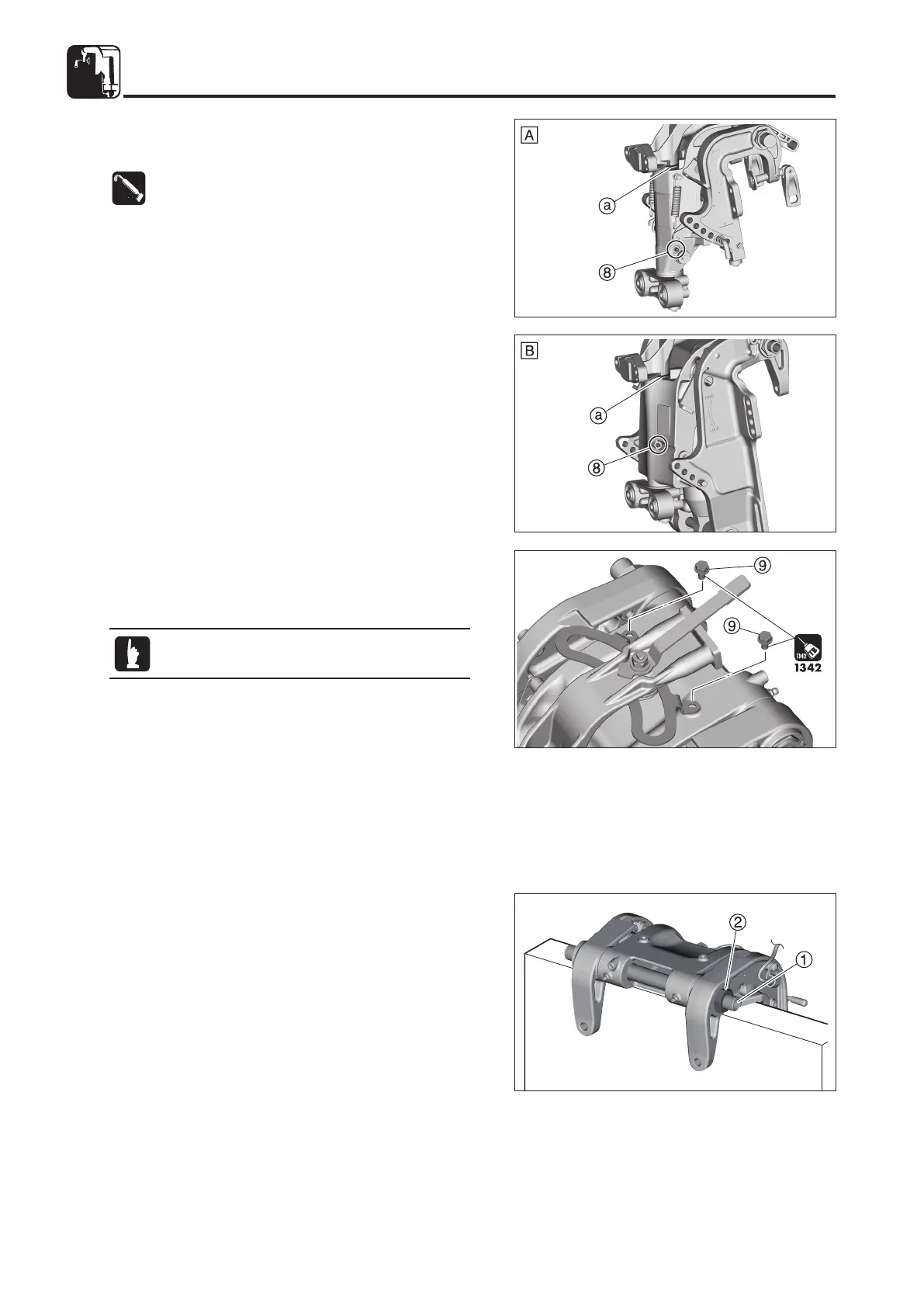

Bracket
7-36
4st 25/30 2022
10)
Disassembly of Clamp Bracket
(Power Tilt Model, Gas Assist Model)
1. Remove the drive shaft housing, steering shaft, and
friction lever before beginning this procedure.
2. Loosen the swivel bracket shaft 1 and the nut 2.
3. Remove the pin 3 and thrust rod 4.
A Power Tilt Model
B Gas Assist Model
4. Remove the C-ring 5, and then remove the cylinder pin
(lower) 6.
5. Pull out the swivel bracket shaft, and remove the clamp
bracket 7 from the swivel bracket 8.
6. Check the swivel bracket shaft and other parts for
abnormality, and replace if necessary.
5. Pour OBM grease into the bushing a through the grease
nipple 8 until it overflows.
A Manual Tilt Model
B Power Tilt Model, Gas Assist Model
GREASE
OBMOBM
OBM
6. Install the friction plate bolts 9 and adjust the friction
lever. (Basic Tiller Handle / Multi-Function Tiller Handle
Models only)
Apply screw locking agent (ThreeBond 1342) to
the thread area of the friction plate bolts.
