7-35
4st 25/30 2022
7

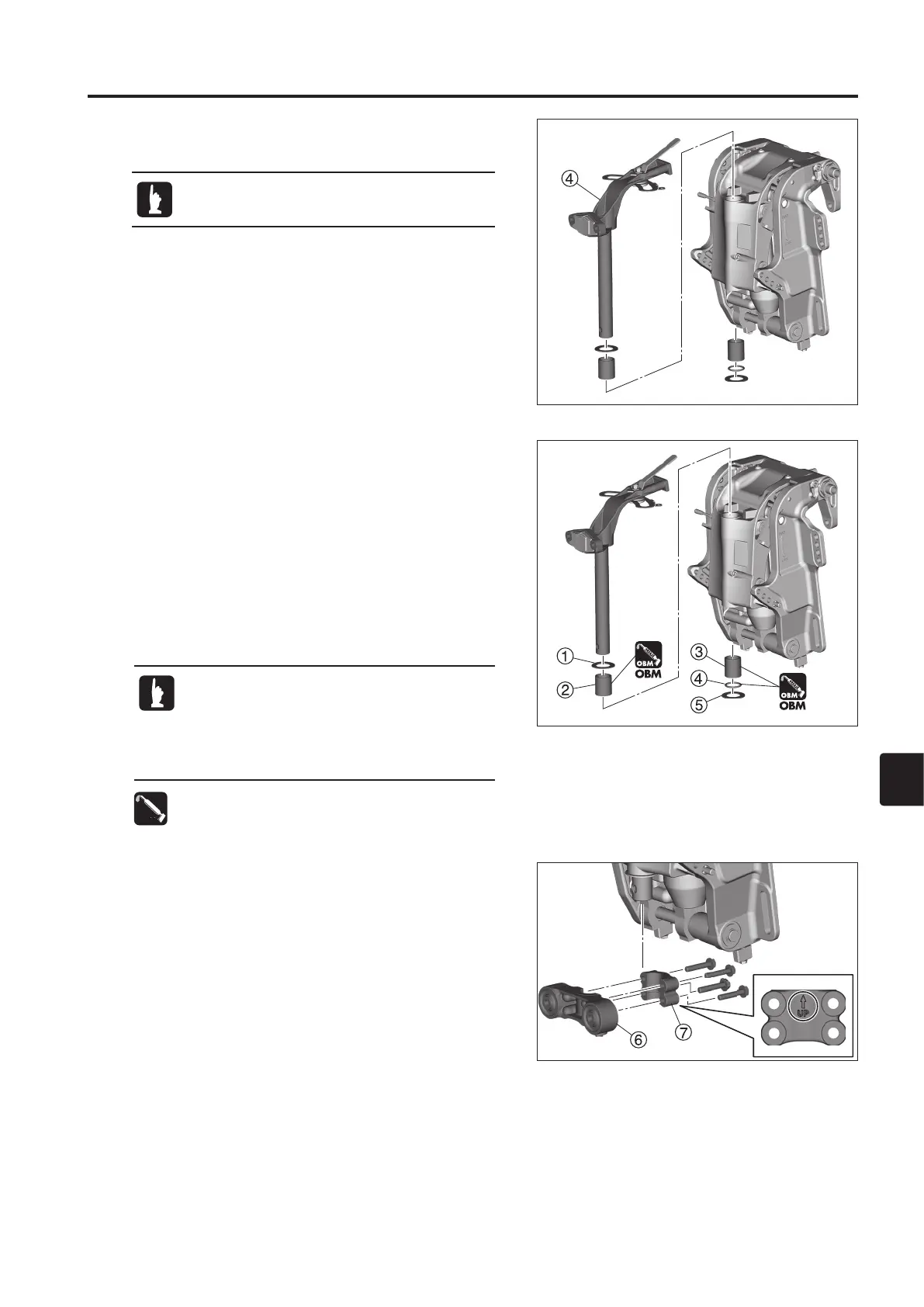

4. Pull out the steering shaft 4 from the swivel bracket assy
to remove.
5. Check the individual parts.
Remove the washer and then remove the O-ring
and collar from the steering bracket.
9) Installation of Steering Shaft
1. Attach the thrust plate 1 and bushing 2 to the steering
shaft.
2. Stand the swivel bracket assy vertically, and insert the
steering shaft into the swivel bracket assy.
3. Attach the bushing 3, new O-ring 4, and thrust plate 5
to the swivel bracket.
•
Push the bushing by using a flathead screw
driver until it stops.
•
Insert the O-ring until it contacts the bushing.
•
Securely install the bushing and O-ring in the
swivel bracket.
GREASE
OBMOBM
OBM
4. Install the lower rubber mount 6 and mount bracket 7.
To Next Page
