6
6-29
4st 25/30 2022

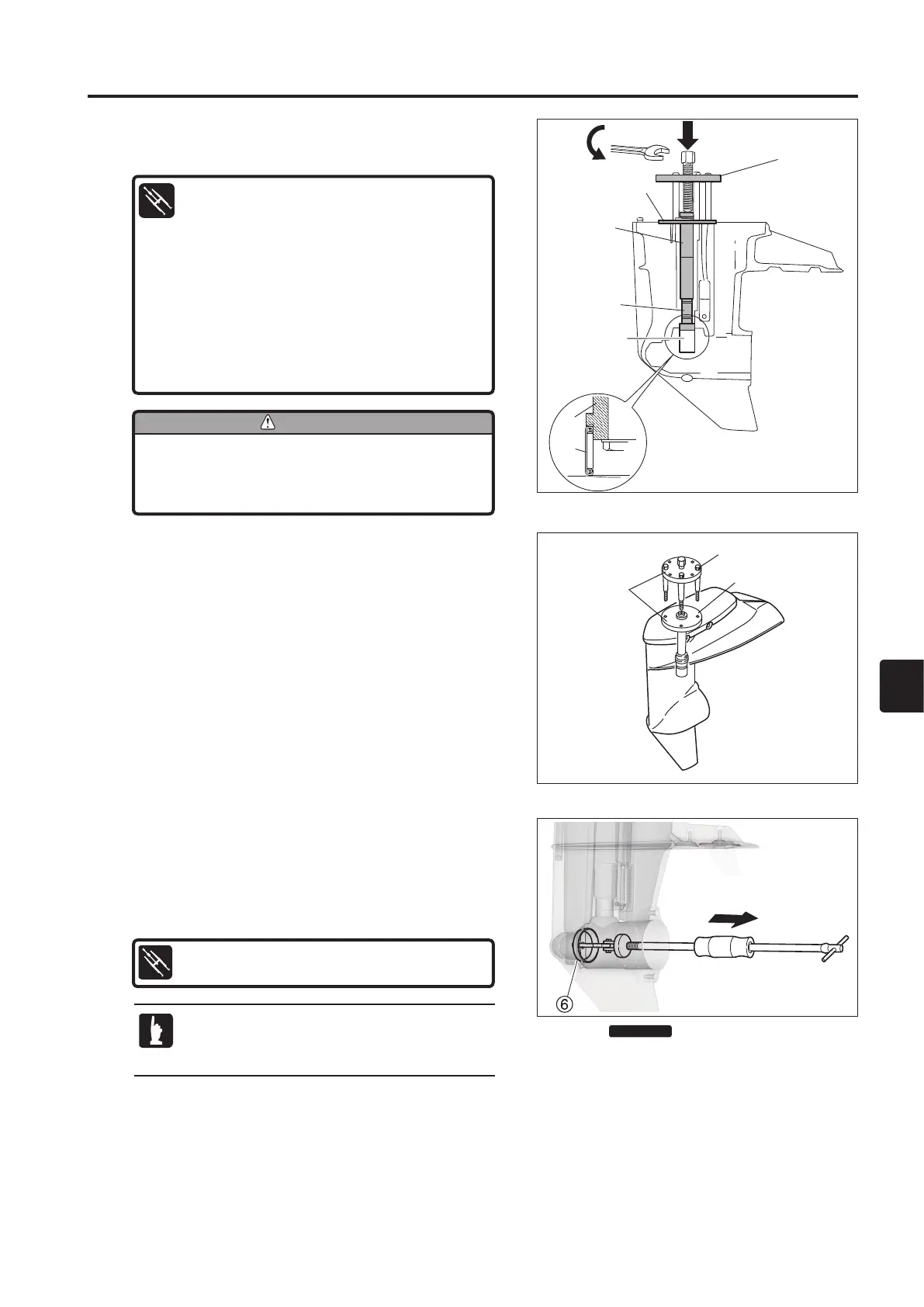

28) Disassembly of Gear Case
1. Use the tools below to remove the roller bearing 1.
Roller Bearing Press Kit:
P/N. 3AC-72900-3
Roller Bearing Outer Press Flange
2:
P/N. 3AC-72900-2
Roller Bearing Outer Press Guide 3:
P/N. 3AC-72765-2
Roller Bearing Press Rod 4:
P/N. 3RS-72769-0
Roller Bearing Press 5:
P/N. 3VS-72770-0
When installing the flange
2
and guide
3
,
be sure that the “F” mark is in the forward
direction.
1 Roller Bearing
2
3
4
1
1
5
5
&
&
@@&
2. Remove the outer race
6
of the taper roller bearing.
Place the slide hammer inside the gear case, hook the
claws of the slide hammer onto the outer race to secure
the hammer, and slide the hammer to pull out the outer
race.
Slide Hammer Kit:
P/N. 3AC-99080-0
Check the positions of the insertion grooves at
the rear of the outer race position and insert the
claws of the slide hammer into them.
6
Outer Race
Do not reuse.
To Next Page
