Bracket
7-38
4st 25/30 2022

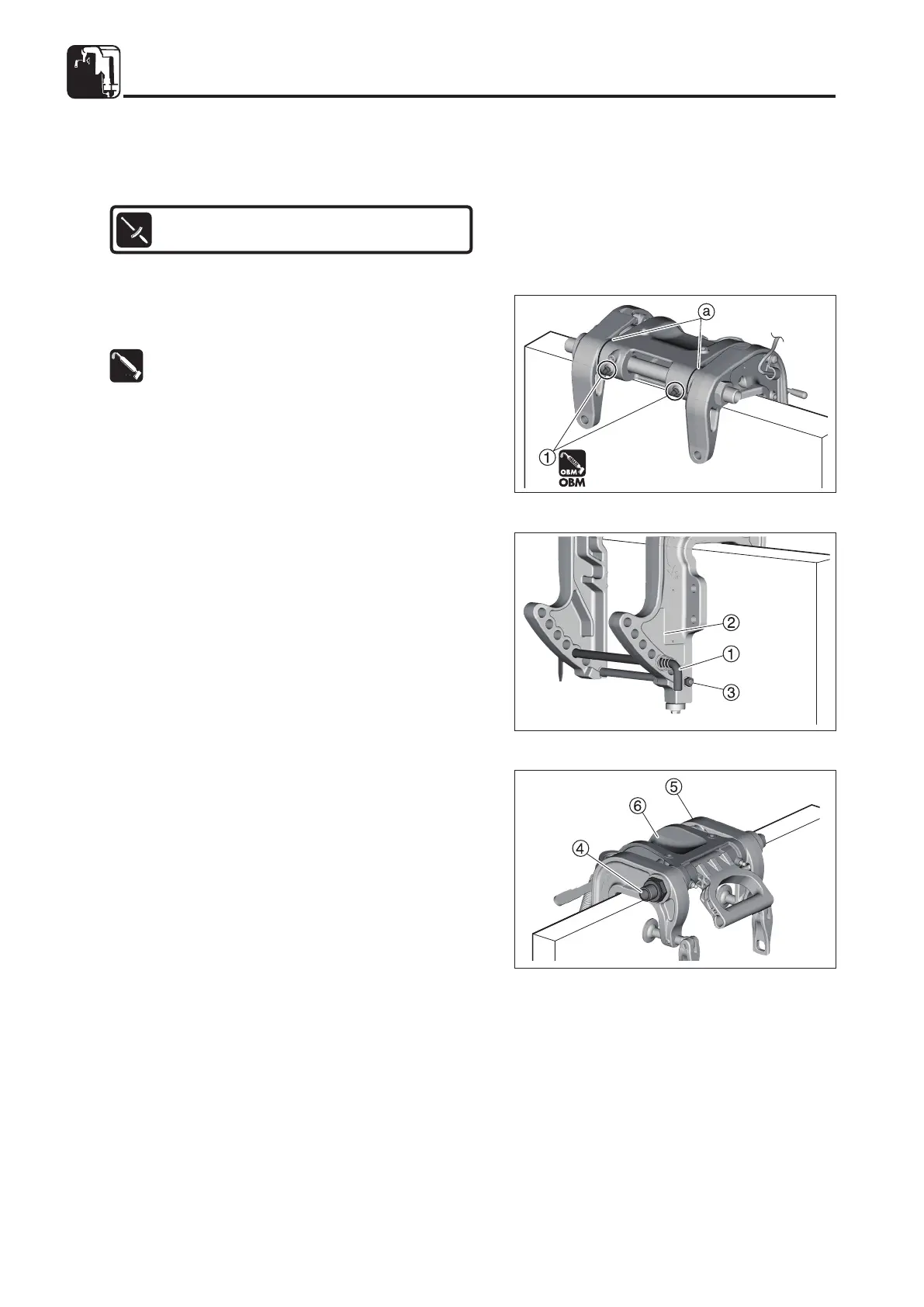

11) Installation of Clamp Bracket
(Power Tilt Model, Gas Assist Model)
1. Install the clamp bracket in the reverse order of removal.
Nylon Nut:
24 N · m (17 lb · ft) [2.4 kgf · m]
2. Pour grease into the bushings a through the grease
nipples 1 until it overflows.
GREASE
OBMOBM
OBM
12) Disassembly of Clamp Bracket
(Manual Tilt Model)
1. Remove the thrust rod 1 from the clamp bracket 2.
2. Remove the distance piece nut 3.
3. Loosen and remove the nut of the swivel bracket shaft 4.
Pull out the swivel bracket shaft and remove the clamp
bracket 5 from the swivel bracket 6.
4. Remove the distance piece 7.
To Next Page
