6
6-27
4st 25/30 2022

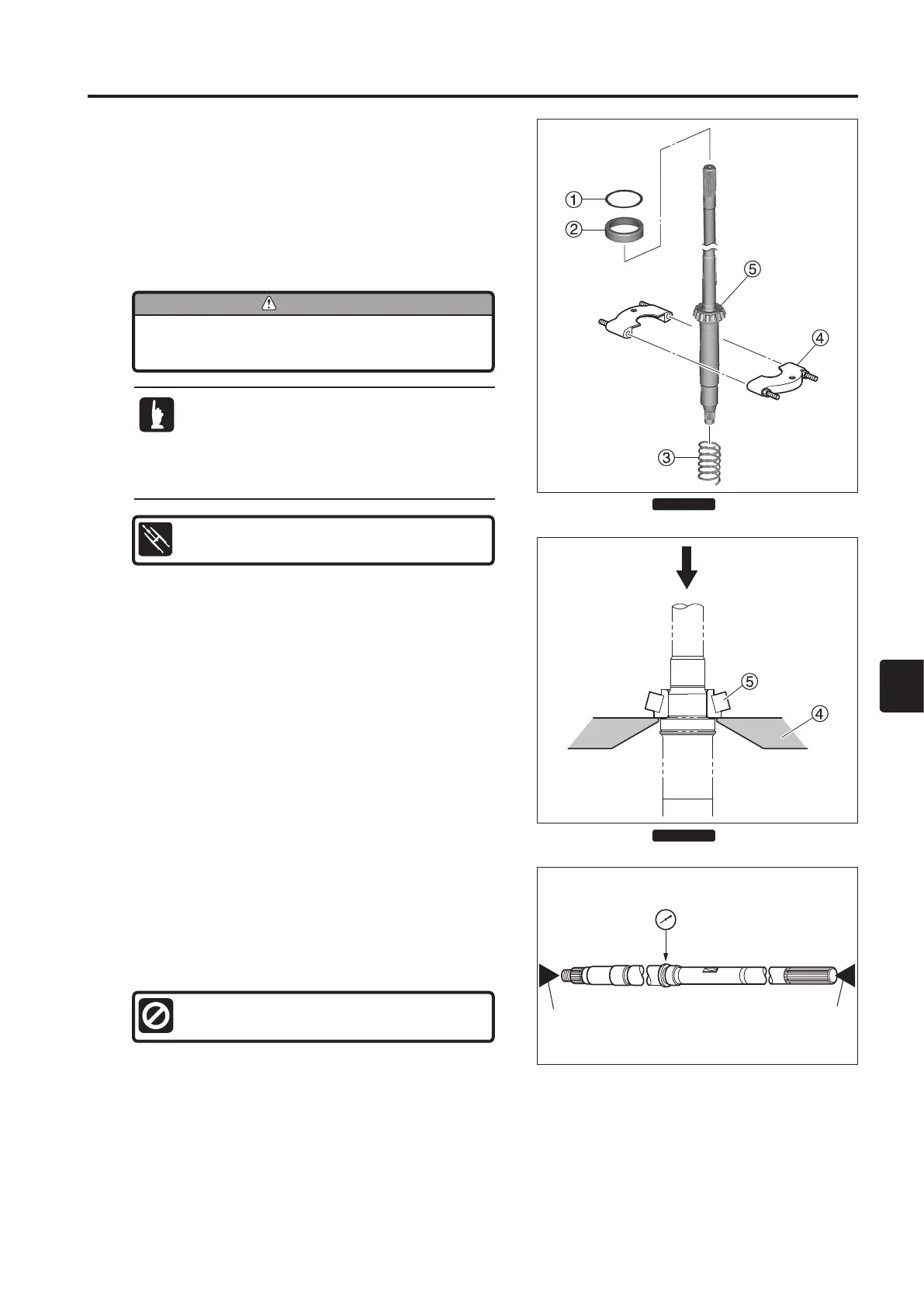

25) Inspection of Drive Shaft
1. Check the drive shaft for bends and wear.
Replace if necessary.
2. Measure the drive shaft runout.
Runout Limit:
0.5 mm (0.020 in)
a Support Points
24) Disassembly of Drive Shaft
1. Remove the shim
1
and outer race
2
.
2. Remove the drive shaft spring 3.
3. Use the universal puller plate 4 to remove the taper roller
bearing
5
with a press.
Universal Puller Plate 4:
P/N. 3AC-99750-0
•
Check the bearing for play or deflection before
removal, and replace if necessary.
•
When applying the universal puller plate to the
bearing, hook the tip of the puller claw onto the
inner race of the bearing correctly.
Do not reuse the removed bearing.
Be sure to replace it with a new one.
5
Taper Roller
Bearing
Do not reuse.
5
Taper Roller
Bearing
Do not reuse.
To Next Page
