9. Installation of the Trim
Sensor

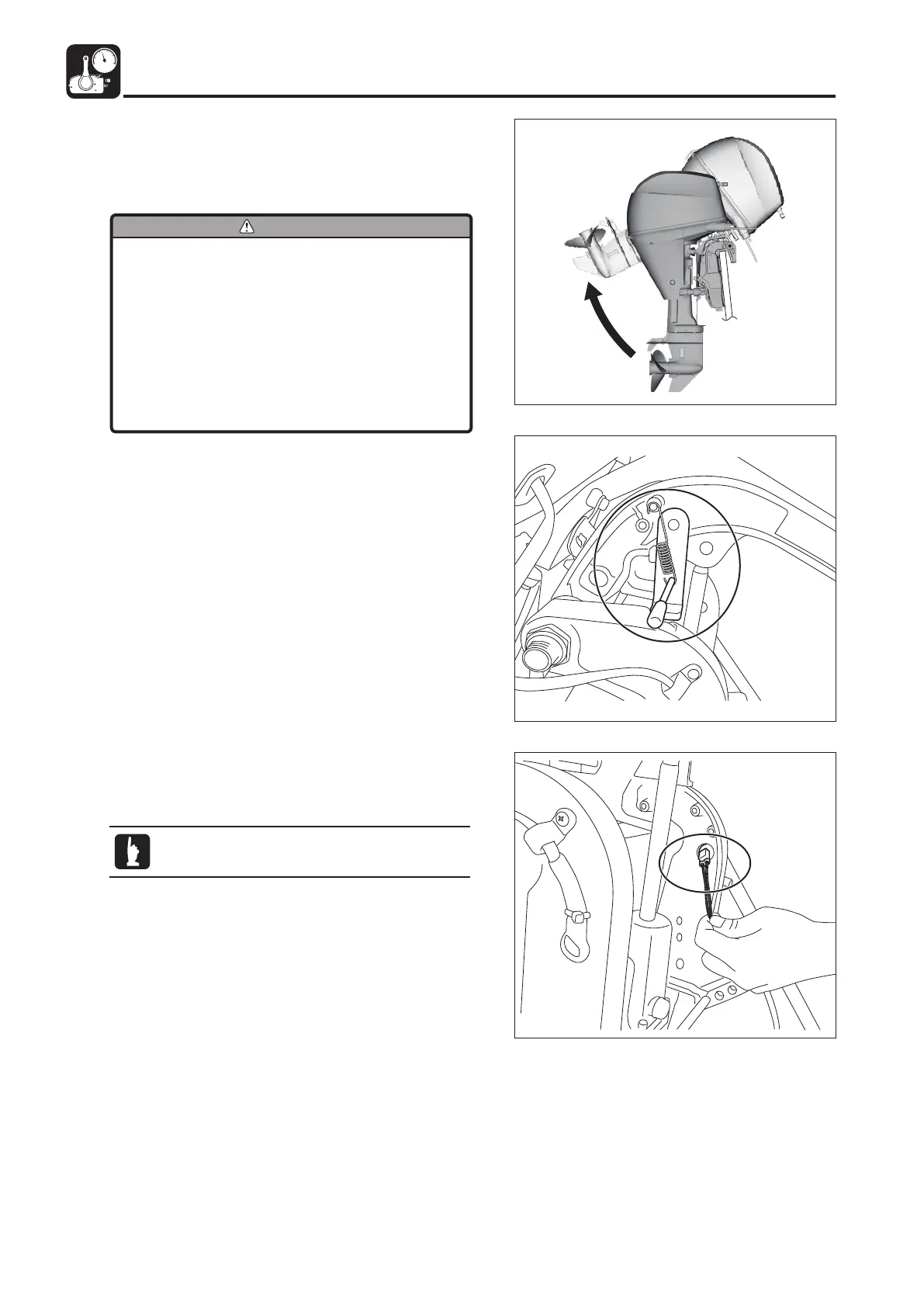

1. Tilt the engine up fully and secure it with the tilt stopper.
2. Pass the trim sensor wiring through the hole in the clamp
bracket and attach the trim sensor to the clamp bracket
using 2 bolts.
•
Do not insert your hand or finger between
the outboard motor and the clamp
bracket while working.
•
When attaching or detaching the PT
unit without removing the power unit,
suspend and support the outboard
motor with a hoist etc. If not, it may be
dangerous as the outboard motor may fall
down.
The trim sensor is easier to install if it is held in
place with a tie wrap.
