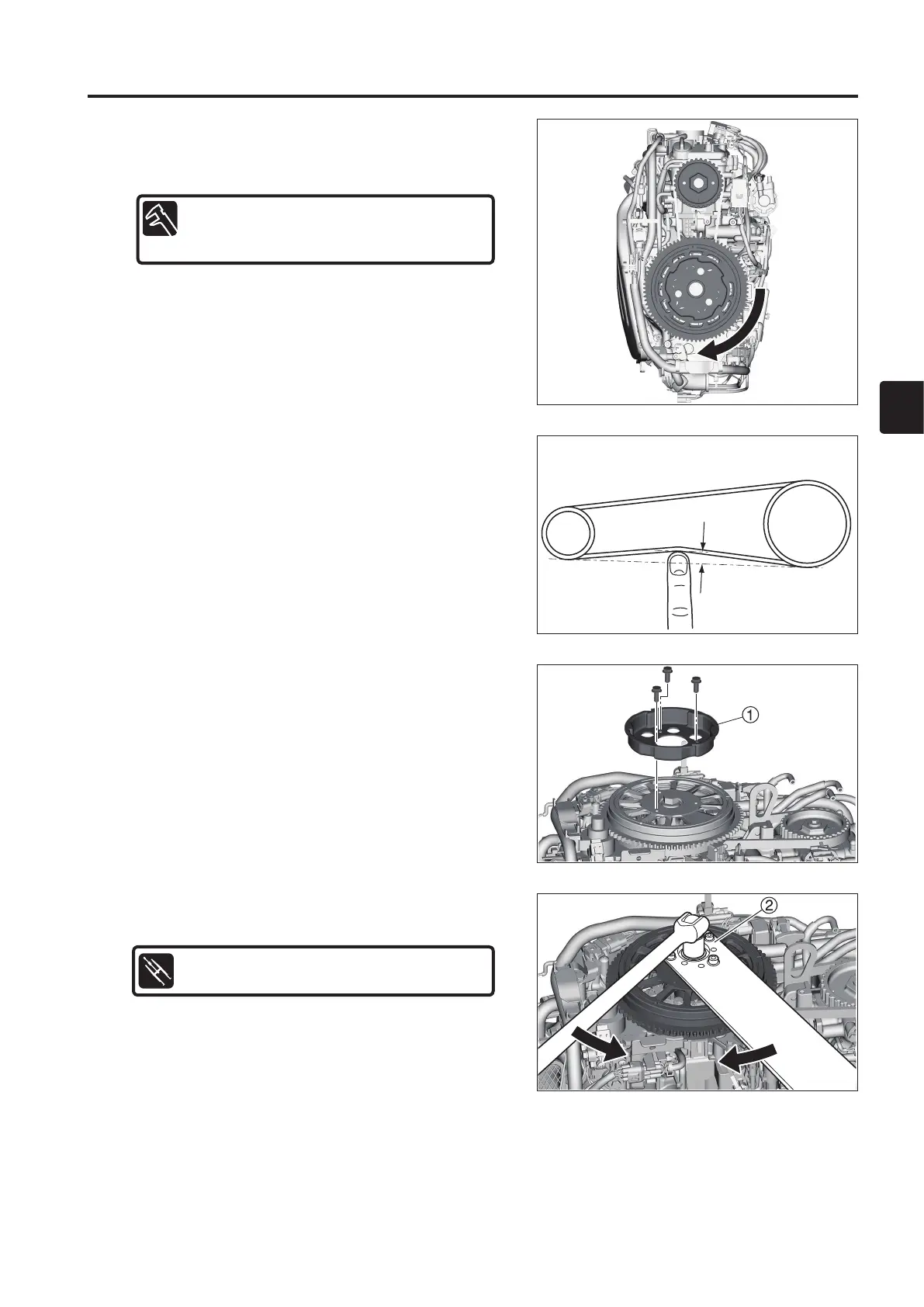

3. Check the timing belt inner and outer surfaces for cracks,
damage, and wear while rotating the flywheel clockwise
with your hands. Replace if necessary.
Bend limit a:
Push the belt center as shown. Replace the
belt if it deflects by 10 mm or more.
12) Replacement of Timing Belt
1. Remove the recoil starter and belt cover.
2. Remove the starter pulley 1.
3. Using the flywheel puller kit 2, loosen the flywheel bolt
and remove it.
Flywheel Puller Kit 2:
P/N. 3T1-72211-4
