4
4-37
4st 25/30 2022

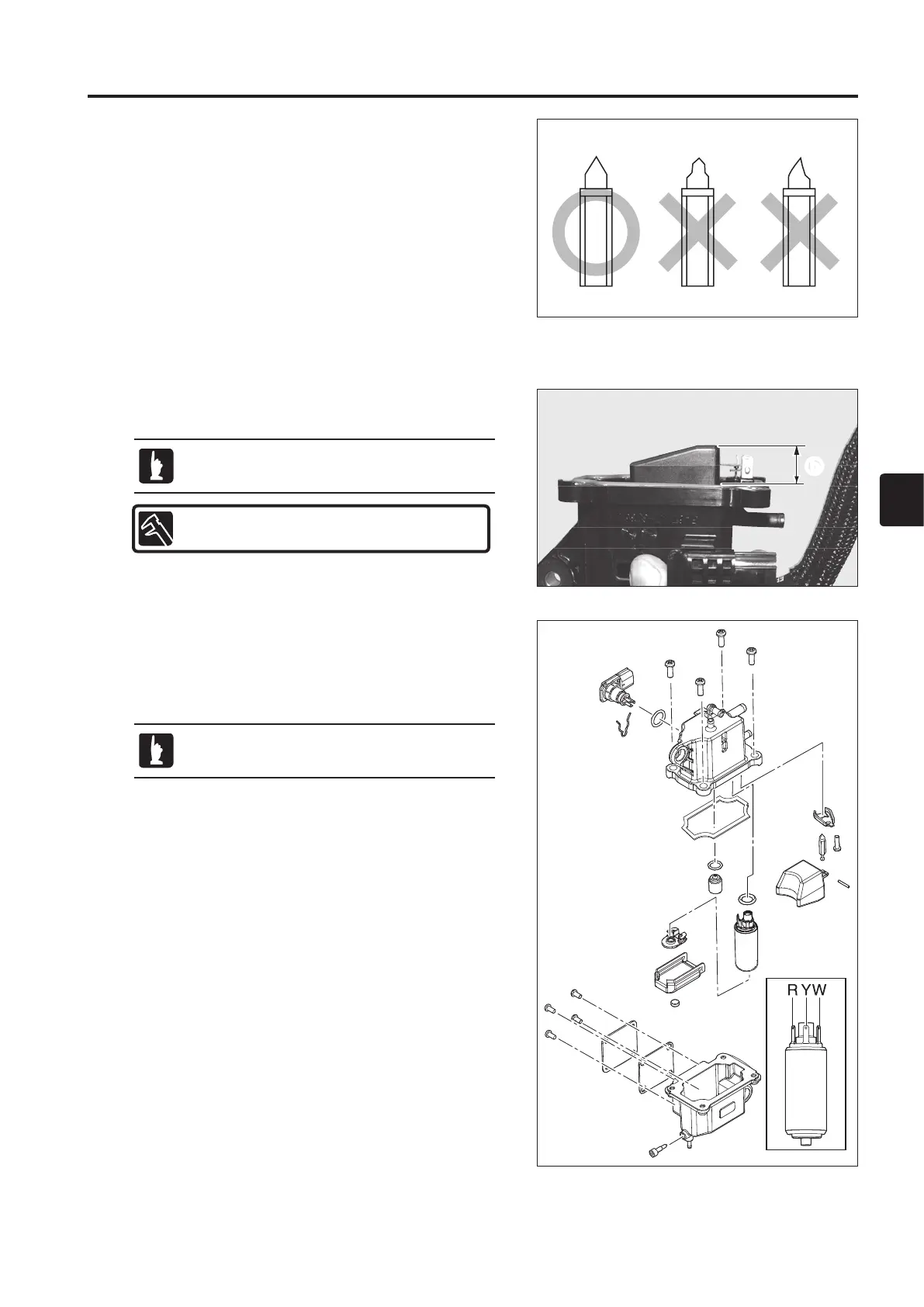

8) Inspection of Vapor Separator
1. Check the needle valve for bend and wear. Replace if
necessary.
2. Check the float for deformation. Replace if necessary.
3. Check the filter for dirt and clogging. Clean if necessary.
5. Check the float height b as shown. Replace the float or
needle valve if the height is out of the specified range.
Float Height b:
15.2 mm (0.598 in)
Do not press the needle valve with the float.
4. Reinstall the needle valve, float and float pin, and check
that the parts moves smoothly.
9) Reassembly of Vapor Separator
1. Attach the float chamber to the vapor separator.
2. Reassemble all parts that were removed.
Check that the hose is reconnected correctly.
