6-18
Lower Unit
4st 25/30 2022
14)

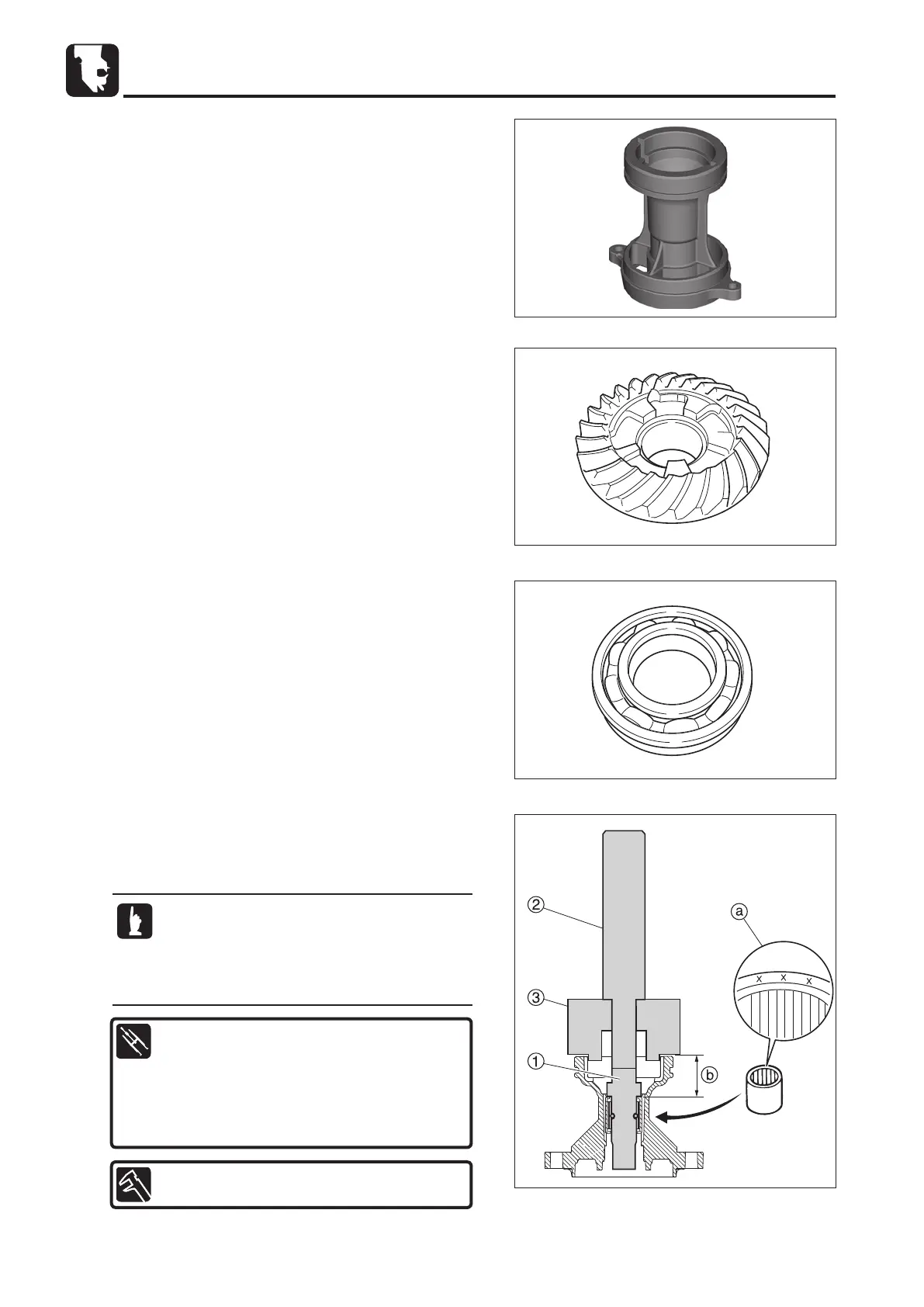

Inspection of Propeller Shaft Housing
1. Clean the propeller shaft housing, and check it for cracks
or damage.
Replace if necessary.
2. Check the teeth and dog sections of the bevel gear C for
cracks and abnormal wear.
Replace if necessary.
3. Check the bearing for abnormalities.
Roller Bearing Attachment 1:
P/N. 3AC-99710-0
Driver Rod 2:
P/N. 3AC-99702-0
Center Plate 3:
P/N. 3VS-99701-0
Assembled Depth b:
14 ± 0.2 mm (0.5512 ± 0.0079 in)
15)
Assembly of Propeller Shaft Housing
1. Use a press to install a new roller bearing in the propeller
shaft housing to the specified depth.
•
Assemble the roller bearing with the
manufacturer mark a on the bevel gear C side.
•
Gently screw in the roller bearing attachment
1 by hand, making sure a gap does not occur
between the attachment and the driver rod 2.
To Next Page
