21) Inspection of Bevel Gear Assy A
1. Check the bevel gear assy A teeth and clutch claws for
cracks, damage, or wear.
Replace if necessary.

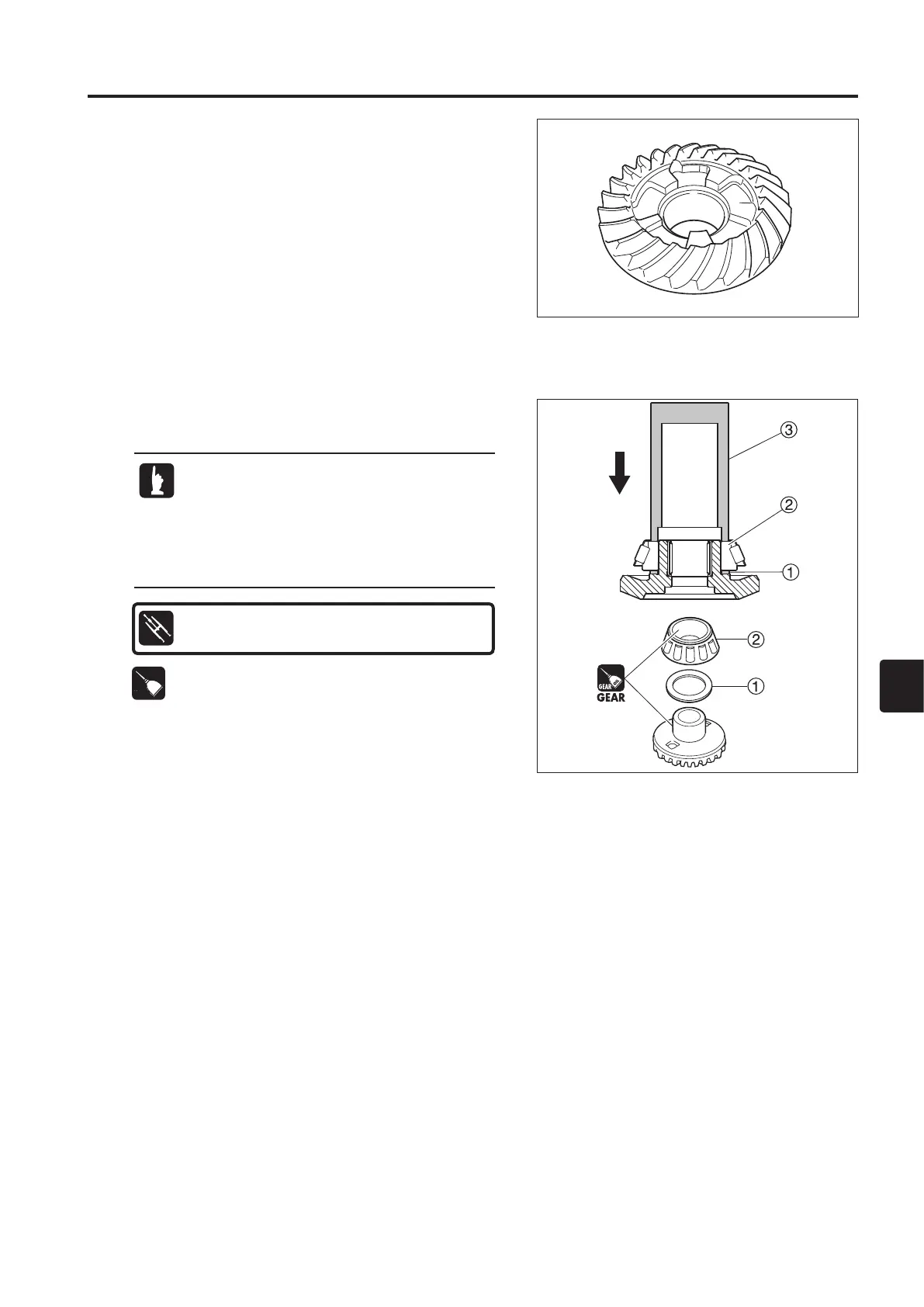

22) Assembly of Bevel Gear Assy A
1. Install the shim 1 removed during disassembly and install
the taper roller bearing
2
using a press.
Bevel Gear A Bearing Installation Tool 3:
P/N. 346-72719-0
•
Replace the shim with a new one of the same
thickness if any deformation or damage is
found.
•
Apply gear oil to the contact surface of the taper
roller bearing when installing the taper roller
bearing.
OIL
GEARGEAR
GEAR
