Fuel System (Fuel Injection)
4-30
4st 25/30 2022
7. Outline of Fuel Injection System
1) Air Intake System
The air intake system consists of components including the intake manifold 1 (air intake passage to cylinders that
are linked to a common air chamber), throttle position sensor 2, throttle body/shutter 3, ISC (idle speed control)
valve 4, and T-MAP (manifold pressure and temperature) sensor 5.
The fuel rail and fuel injector are installed in the intake manifold 1.

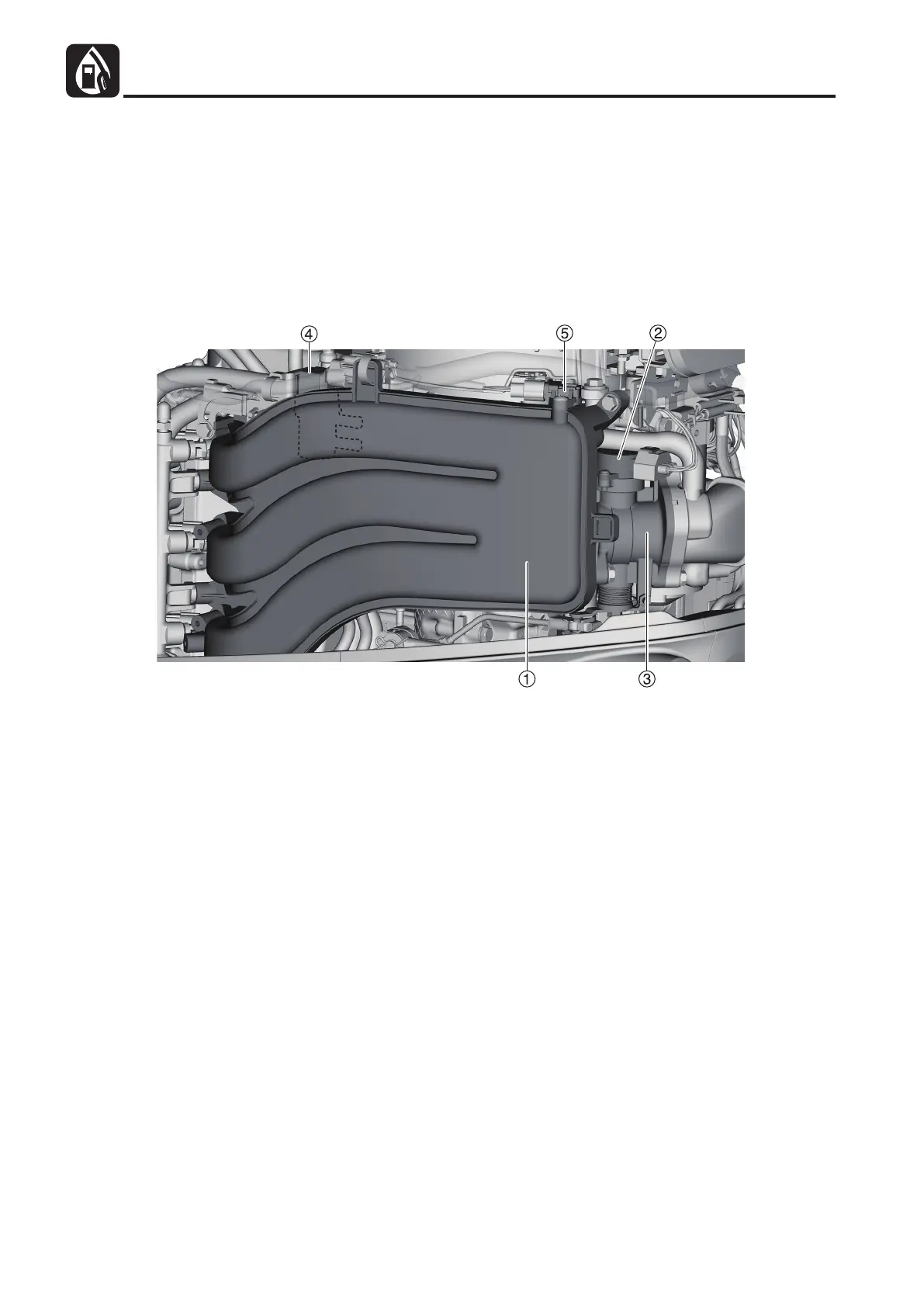

1 Intake Manifold
2 Throttle Position Sensor
3 Throttle Body/Shutter
4 ISC (Idle Speed Control) Valve
5 T-MAP (Manifold Pressure and Temperature) Sensor
