6
6-11
4st 25/30 2022

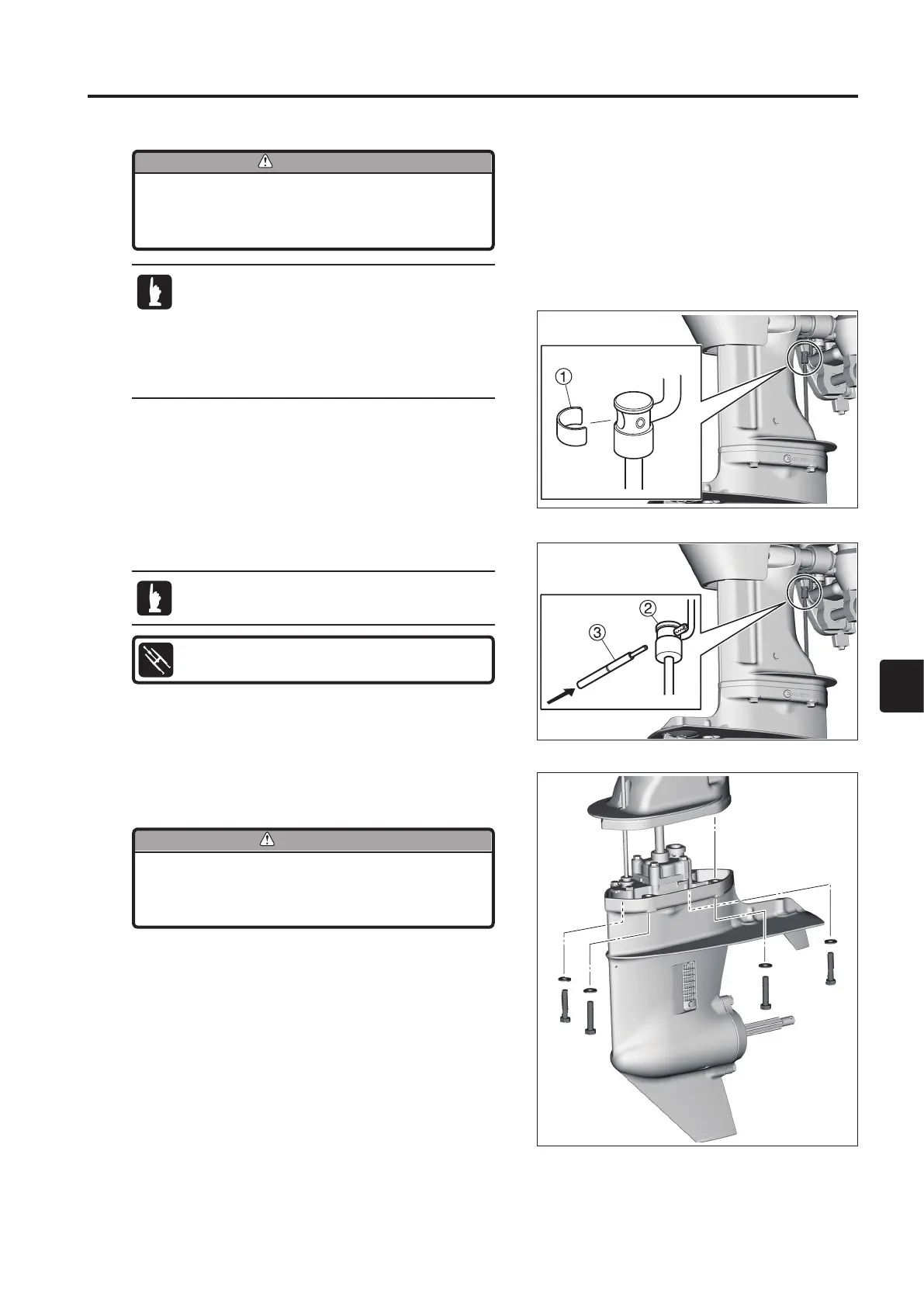

3) Removal of Lower Unit
4. Remove the lower unit installation bolts (four), and pull
down the lower unit assy.
When working with the outboard motor in
the tilt up position, be sure to lock it with
the tilt stopper.
1. Shift the gear into Forward (F) to pull up the shift rod.
2. Remove the shift rod joint retainer 1.
3. Remove the spring pin and disconnect the shift rod.
Remove the shift rod joint 2.
•
Removal of the lower unit does not require the
power unit to be removed from the outboard
motor.
•
When removing the lower unit from the outboard
motor, tilt up the outboard motor to make the
work easier.
•
Use the spring pin tool A 3 to remove it.
•
Do not reuse the removed spring pin.
Hold the lower unit during removal to
prevent the unit from dropping onto the
floor.
Spring Pin Tool A 3:
P/N. 345-72227-0
To Next Page
