3-29
3
4st 25/30 2022

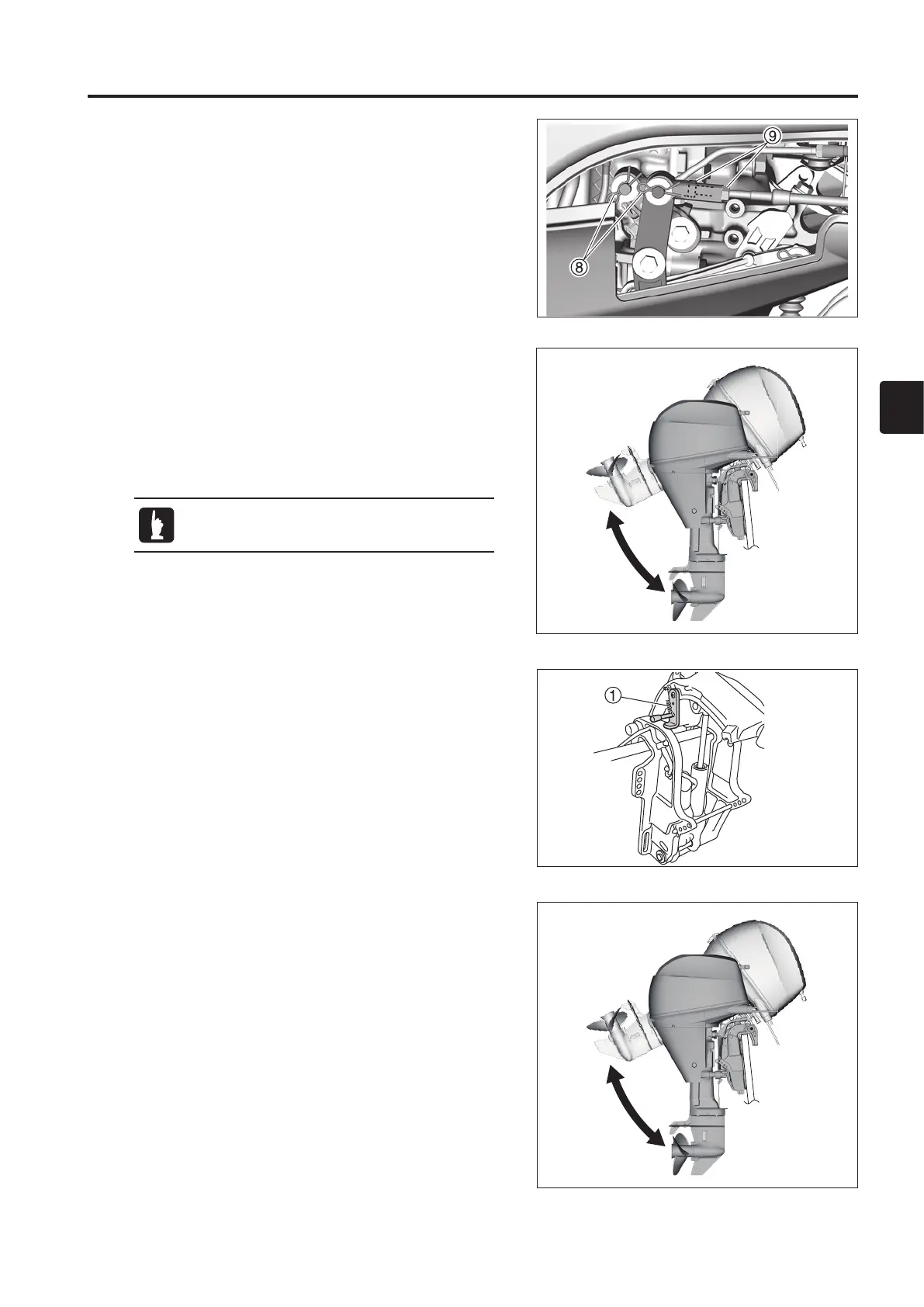

8. Connect the cable joint, attach the washer and R pin 8,
and tighten the lock nut 9. (Multi-Function Tiller Handle
Control Model, Remote Control Model)
9. Check if the gear shifts smoothly, and repeat Steps 2 to 6
where necessary.
2. Fully tilt up the outboard motor and support it with the tilt
stopper 1 to check whether the locking mechanism of the
tilt stopper is working normally.
20) Inspection of PT Unit Operation
1. Tilt up and down the outboard motor several times to
check that the manual tilt operates smoothly throughout
the entire range. Check the PT fluid level where
necessary. Refer to "Inspection of PT Fluid Quantity"
described in the next page.
Check that the PT motor produces a smooth
rotating sound.
21) Inspection of Gas Shock Absorber
Operation
1. Tilt up and down the outboard motor several times to
check that the manual tilt operates smoothly throughout
the entire range.
2. Fully tilt up the outboard motor and support it with the tilt
stopper 1 to check whether the locking mechanism of the
tilt stopper is working normally.
