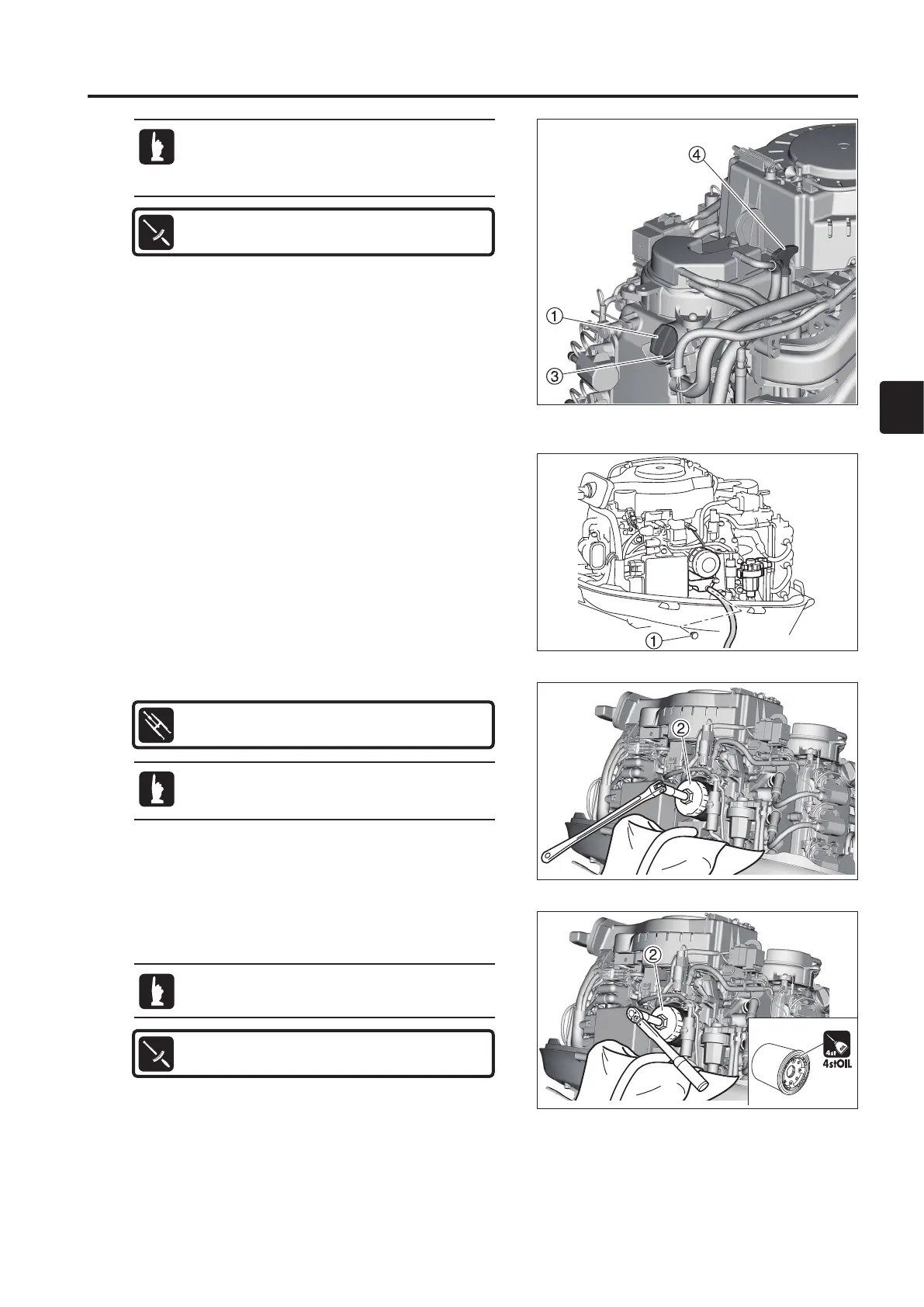

5. Pour the specified amount of new engine oil into the
oil inlet 3 while checking the amount using the oil
level gauge 4.
6. Install the oil filler cap 1 as well as the oil level
gauge and start the engine to warm up for 5 minutes.
7. Check if there are any oil leaks and stop the engine.
•
Apply engine oil on the sealing areas of the
engine oil drain bolt.
•
Use a new gasket.
Engine Oil Drain Bolt:
24 N · m (18 lb · ft) [2.4 kgf · m]
6) Replacement of Oil Filter
1. Drain engine oil.
2. Remove the yellow plug 1 of the oil drip tray under the
oil filter and attach the hose to the nipple of the tray (hose
inner diameter: 12.0 to 12.7 mm). Set a drain oil pan on
the opposite side of the hose.
3. Using the oil filter wrench, which is a special tool, turn the
oil filter counterclockwise to remove it.
Oil Filter Wrench
2
:
P/N. 3AC-99090-0
Replace the oil filter after 5 minutes or more after
stopping the engine.
Apply a thin coat of engine oil on the O-ring of the
oil filter before installing it.
4. Install the oil filter and tighten it to the specified torque
using the oil filter wrench.
5. Completely wipe off the spilled oil and attach the plug of
the oil drip tray.
Oil Filter:
18 N · m (13 lb · ft) [1.8 kgf · m]
