Bracket
7-32
4st 25/30 2022

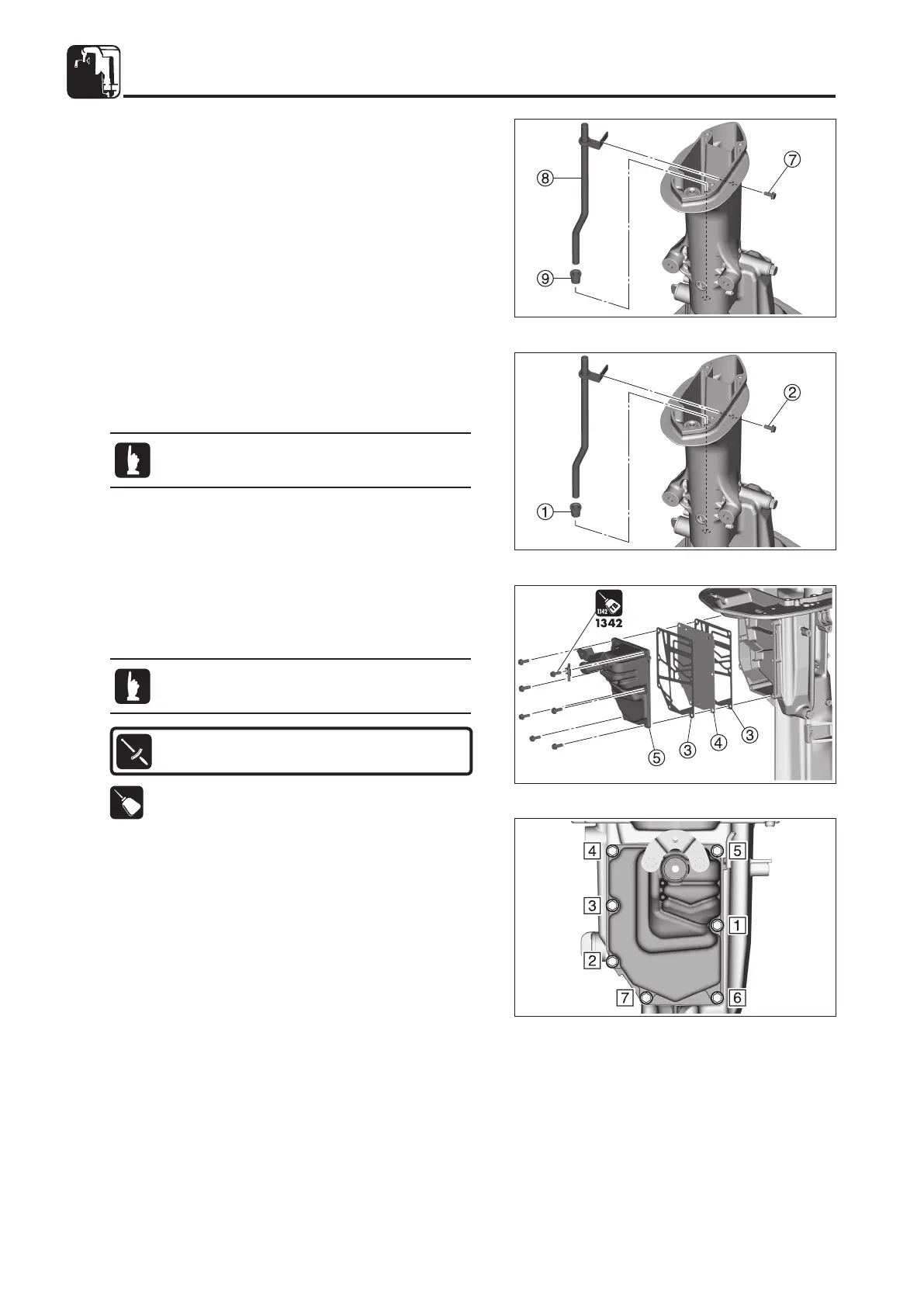

3. Attach the new gasket 3, plate 4, and idle exhaust port
cover 5, and tighten the idle exhaust port cover bolts in
the order shown in the diagram.
2. Tighten the bolt 2 and secure the water pipe.
Idle Exhaust Cover Bolt:
6 N · m (4 lb · ft) [0.6 kgf · m]
6) Assembly of Drive Shaft Housing
1. Install the water pipe seal 1 onto the water pipe, and the
assembly into the drive shaft housing.
Do not apply grease when installing the water
pipe seal onto the water pipe.
Apply screw locking agent (ThreeBond 1342) to
the bolts.
TB
13421 342
1342
5. Remove the bolt 7, and then remove the water pipe 8
from the drive shaft housing. Check the water pipe seal 9
for abnormalities such as cracks.
