2) Drag Link

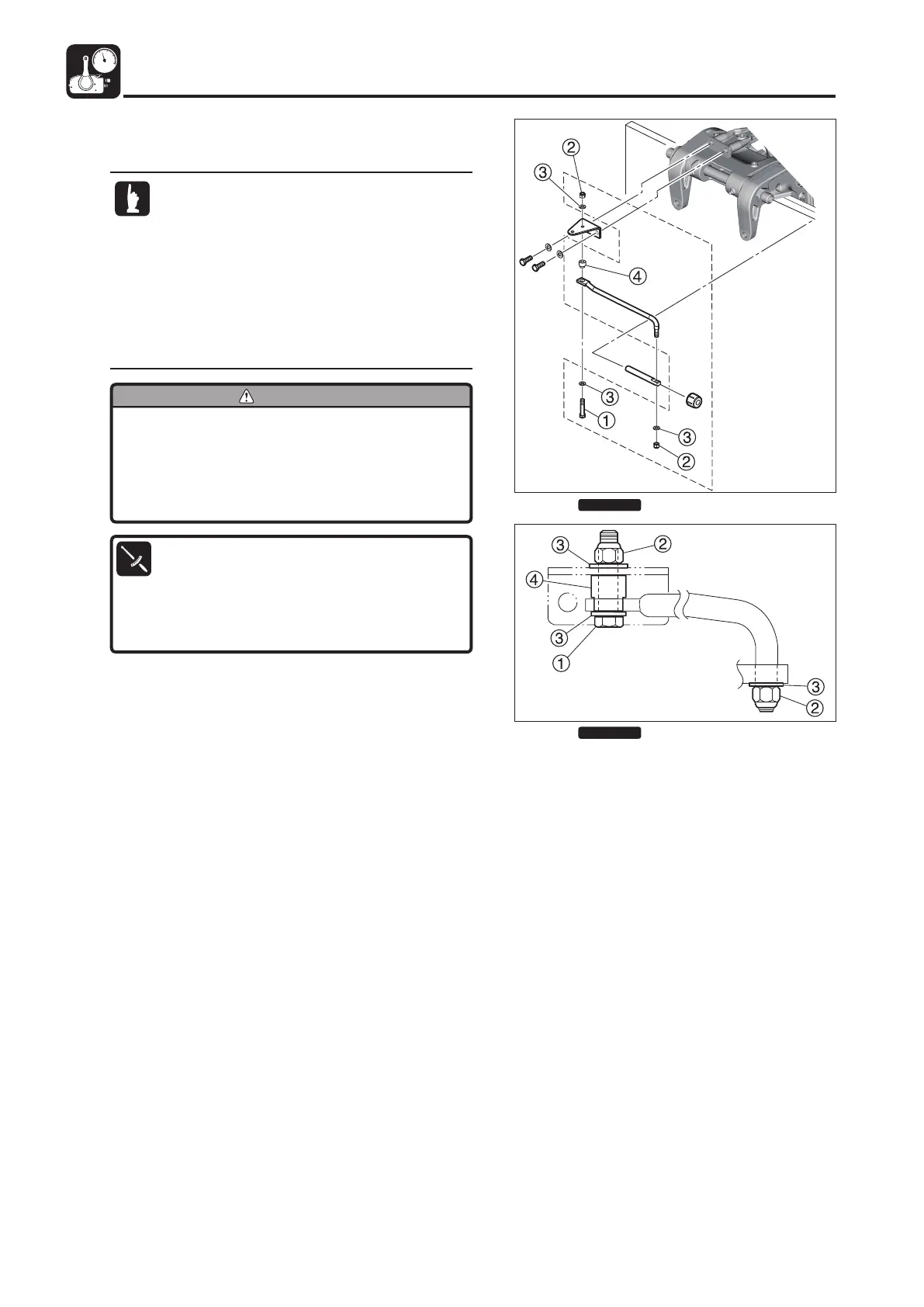

1. Install the drag link as shown in the diagram.
•
Be sure to use a special bolt 1, nylon nuts
2
,
washers 3, and a spacer 4 to install the drag
link connecting the engine and the steering
cable. Do not replace these bolts and nuts with
ordinary bolts and nuts (non-locking type) as
the drag link may get loose or detached due to
vibration etc.
•
Do not reuse nylon nut
2
. Be sure to replace
them with new ones.
If the drag link becomes detached, it may
result in the boat making a sharp turn. As a
result, the passengers may be ejected out
of the boat, resulting in serious injuries or
even death.
Washer
3
Spacer
4
Bolt
1
:
27 N·m (20 lb·ft) [2.7 kgf·m]
Nylon nut
2
:
Tighten until contact is made, then loosen
1/4 of a turn.
2
Nylon nut
Do not reuse
2
Nylon nut
Do not reuse
