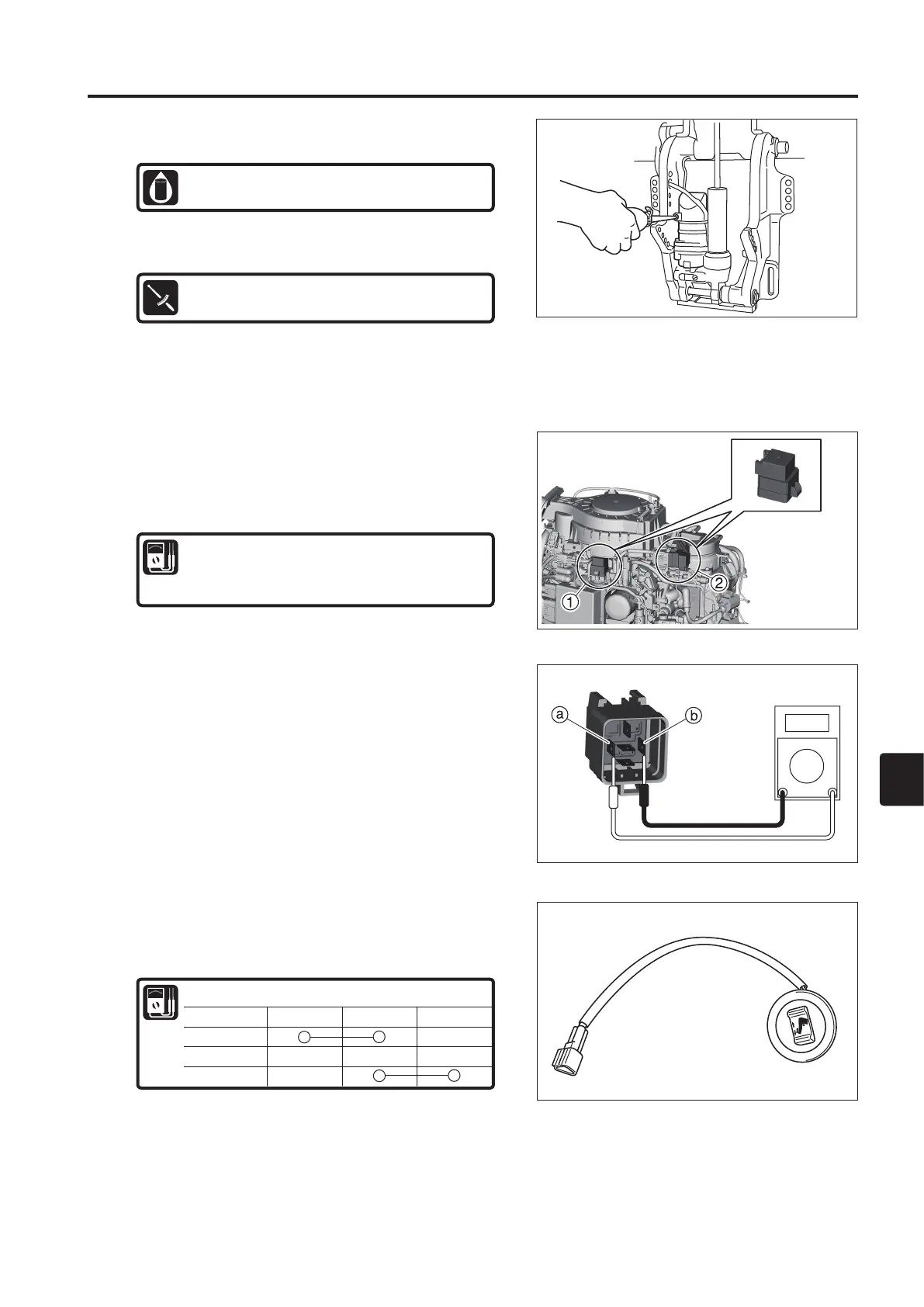

7-51
4st 25/30 2022
7
Lead Wires
Switch Position Sky Blue (Sb) Red (R) Pink (P)
UP (Tilt Up)
Free
DOWN (Tilt Down)
10. If the amount of PT fluid is insufficient, replenish the PT
fluid to the specified level.
Reserve Tank Cap:
1.5 N·m (1.1 lb·ft ) [0.15 kgf·m]
11. Install the reserve tank cap and tighten to the specified
torque.
12. Repeat steps 5 through 12 until the PT fluid reaches the
specified level.
Recommended PT Fluid:
ATF DEXRON III
OIL
27) Inspection of PT Solenoid
1. Check the resistance values of the PT solenoid (up side)
1 and the PT solenoid (down side) 2. Replace the PT
solenoid if other than the specified value.
Resistance Between Terminals
(Terminal a
– Terminal b):
Nїʝ>ʞ@
28) Inspection of PT Switch
1. Check the electrical conductivity of the PT switch. Replace
if other than the specified value.
