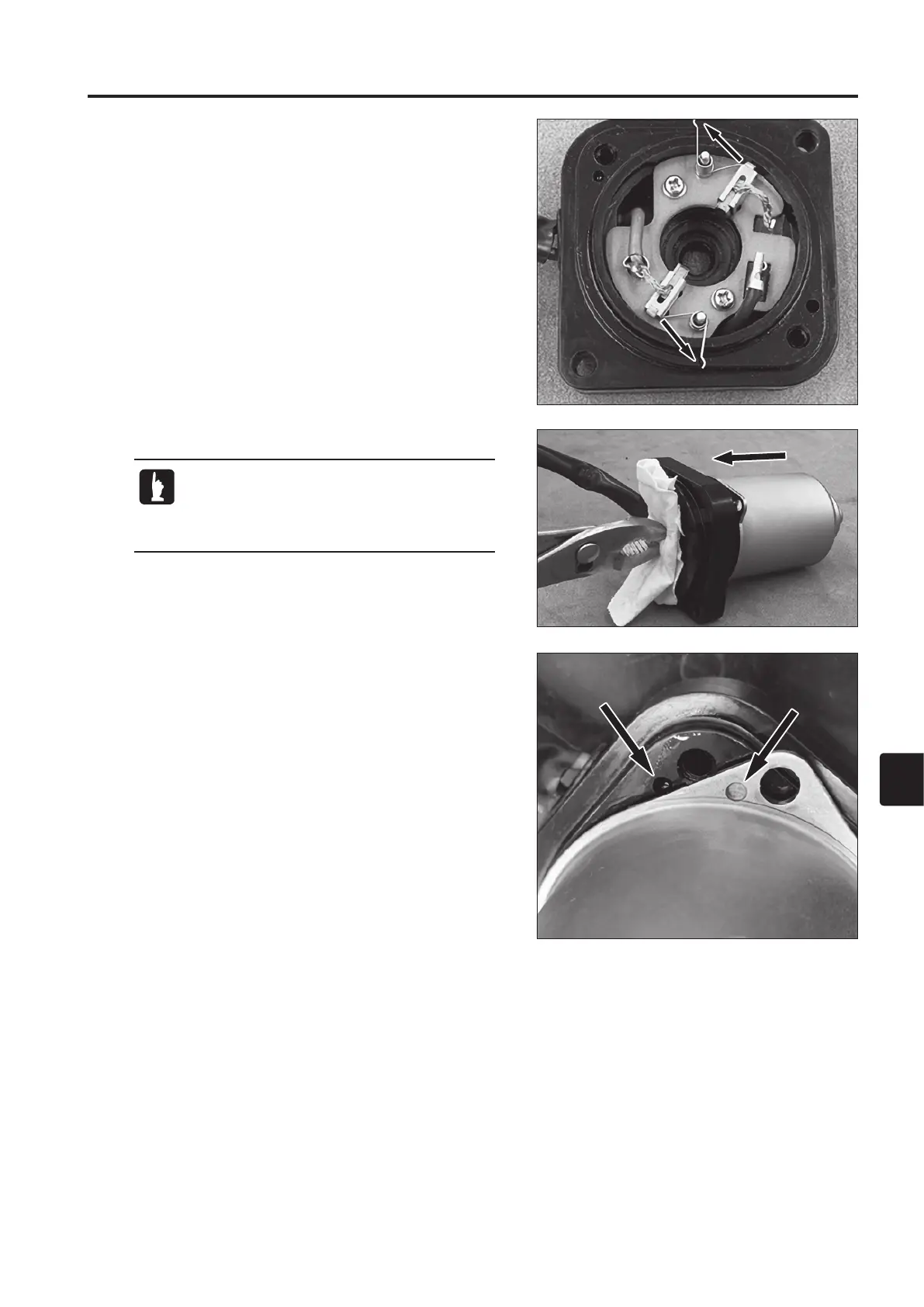

17) Assembly of PT Motor
1. Unlock the brush spring, push the brushes into the brush
holders, and install the armature.
Lock the brush spring.
2. Check the O-ring and replace if necessary.
3. Install the yoke assy to the motor base.
4. Align the knock and tighten the screw.
Cover the end of the armature shaft with a clean
cloth, hold the shaft with a pair of pliers, and
carefully install the armature so that it does not
get detached from the brushes.
