6-32
Lower Unit
4st 25/30 2022

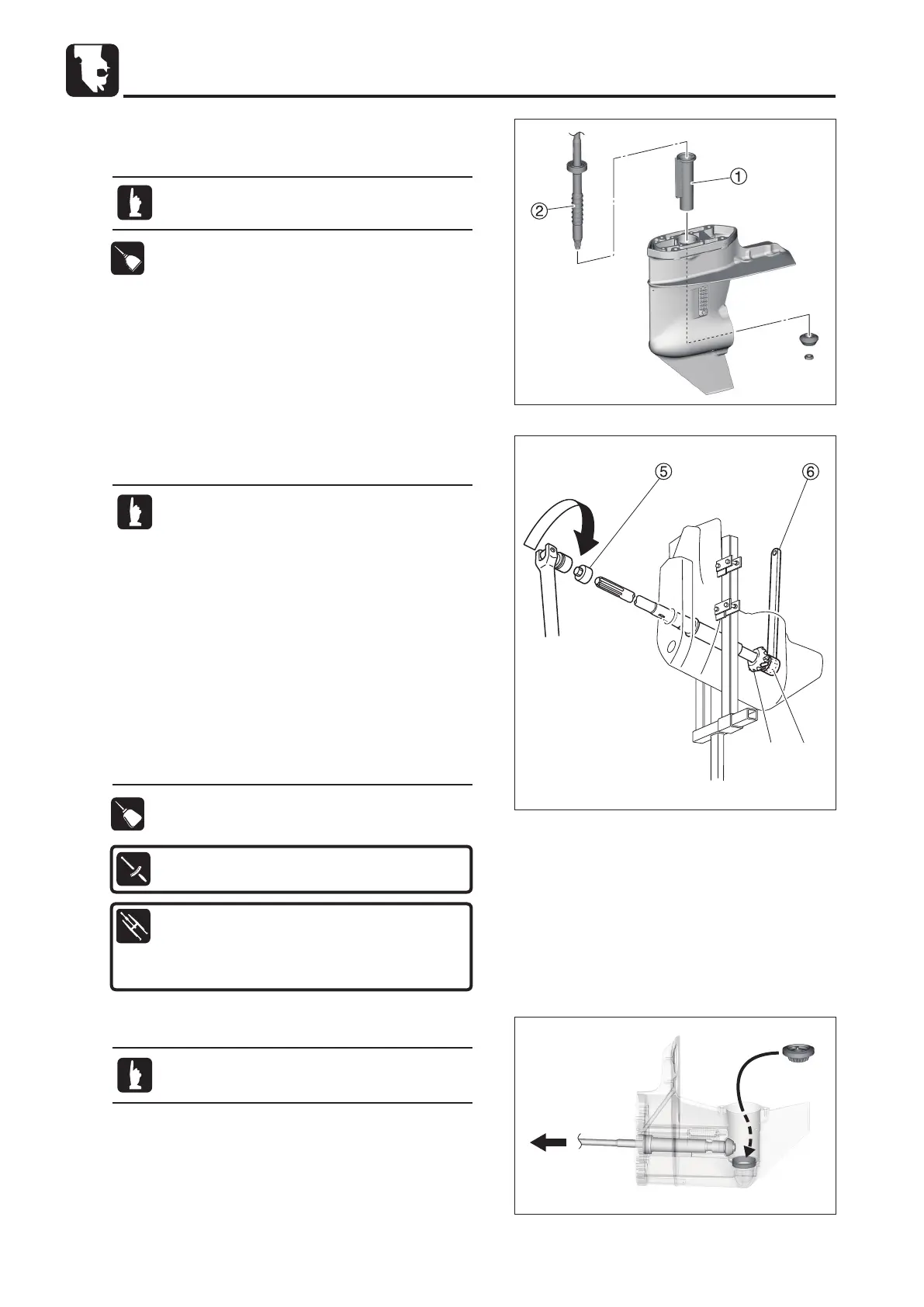

31) Assembly of Bevel Gear B
1. Install the drive shaft spring guide
1
and drive shaft
2
.
OIL
GEARGEAR
GEAR
Apply gear oil to the bearing section of the drive
shaft.
2. Install the bevel gear B 3 and tighten the bevel gear B nut
4 to the specified torque.
Bevel Gear B Nut Socket 5:
P/N. 346-72232-0
Bevel Gear B Nut Wrench 6:
P/N. 346-72231-0
Bevel Gear B Nut 4:
35 N·m (26 lb·ft) [3.5 kgf·m]
Tighten the nut by rotating the drive shaft
socket
5
in the clockwise direction with a
wrench. Cover the bevel gear B nut wrench
6
with a rag or the like to prevent it from hitting
the gear case directly.
This work can be made easier when the
opening of the gear case of the propeller shaft
side is faced upward and fixed horizontally with
a vice or other holder.
Degrease the tapered section of the bevel gear
B mounting on the drive shaft and the threaded
section of the gear nut completely.
Apply ThreeBond 1373B to the threaded
section when tightening the bevel gear B nut.
3 4
TB
1373B1373B1 373B
1373B
3. Install the bevel gear assy A.
Install the bevel gear assy A while pulling the
drive shaft in the direction shown in the diagram.
