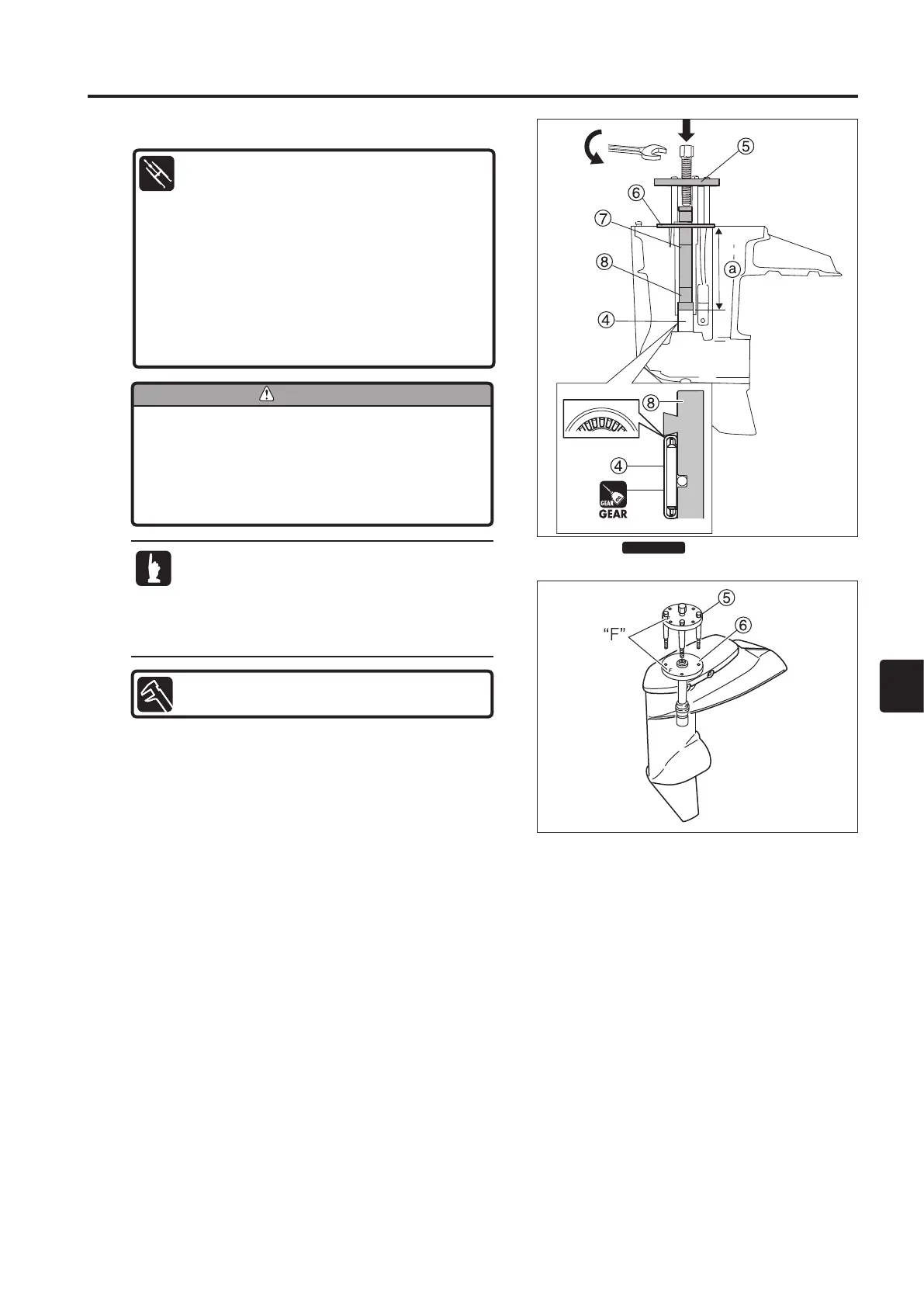

6. Install the roller bearing 4 using the tools below.
•
When installing the guide 6 and flange 5,
be sure that the “F” mark is in the forward
direction.
•
Install the bearing with the marked side
facing upward.
•
When installing the roller bearing, clean the
installation surface of the bearing and apply
gear oil before insertion.
•
Do not reuse the roller bearing. Use a new
bearing.
4 Roller Bearing
Do not reuse.
Installation Depth a:
165.5 - 165.8 mm (6.516 - 6.528 in)
Roller Bearing Press Kit:
P/N. 3AC-72900-3
Roller Bearing Outer Press Flange
5:
P/N. 3AC-72900-2
Roller Bearing Outer Press Guide 6:
P/N. 3AC-72765-2
Roller Bearing Press Rod 7:
P/N. 3RS-72769-0
Roller Bearing Press 8:
P/N. 3VS-72770-0
T
L
A
2
5
2
6
Z
