7-49
4st 25/30 2022
7

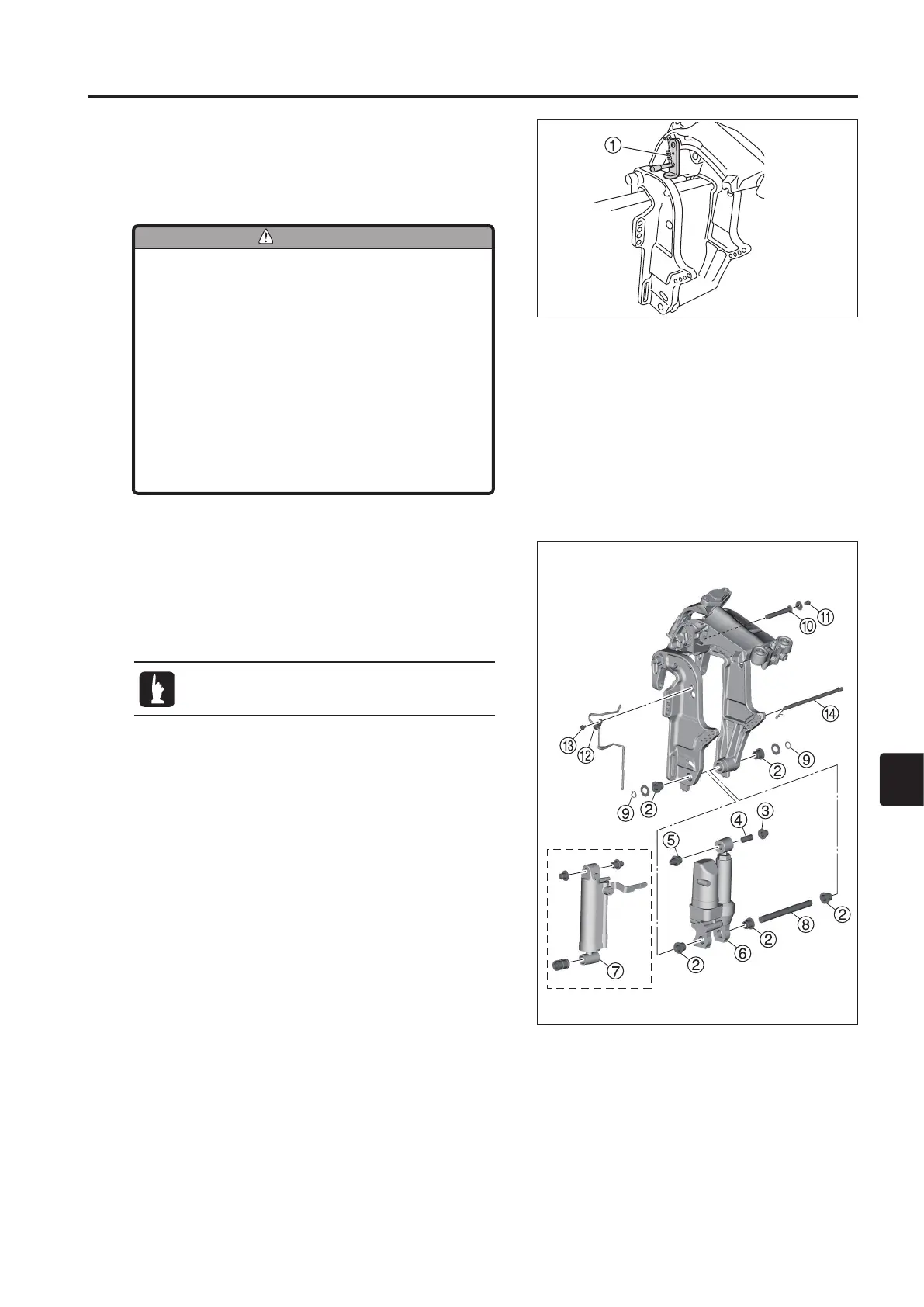

25) Installation of PT Unit / Gas Shock
Absorber
1. Fully tilt up the outboard motor and lock it with the tilt
stopper 1.
2. Install the bushings 2, 3, 4, and 5 in their original
positions.
3. Install the PT unit 6 or gas shock absorber 7, then install
the cylinder shaft (lower) 8.
4. Attach the C-ring 9.
5. Connect the tilt rod to the battery and apply current to fully
extend the tilt rod.
6. Install the cylinder shaft (upper) 0, and tighten the bolt q.
7. Pass the PT motor lead wire through the hole and secure
it with the clamp w and screw e.
8. Install the thrust rod r.
Keep the tilt rod slightly retracted.
WARNING
Be sure to lock the outboard motor
with the tilt stopper after it is tilted up.
Leaving the outboard motor up without
locking may lead to accidental descent
due to the reduction of PT unit hydraulic
pressure, which is dangerous.
When removing and installing the PT unit
without removing the power unit, suspend
and support the outboard motor with a
hoist. The outboard motor may fall, which
is dangerous.
