8
8-21
4st 25/30 2022
4) Inspection of the Exciter Coil and
ECU Charge Coil
1. Disconnect the exciter coil coupler and ECU charge coil(6
pin).
2. Measure the exciter coil resistance. Replace it if the value
is not as specified.
ECU Charge Coil Resistance:
Between White (W) and White (W) terminals
WRїDW&
Exciter Coil Resistance:
Black (B) to Red (R) or Blue (L)
WRїDW&
This test can be conducted without removing the
part.

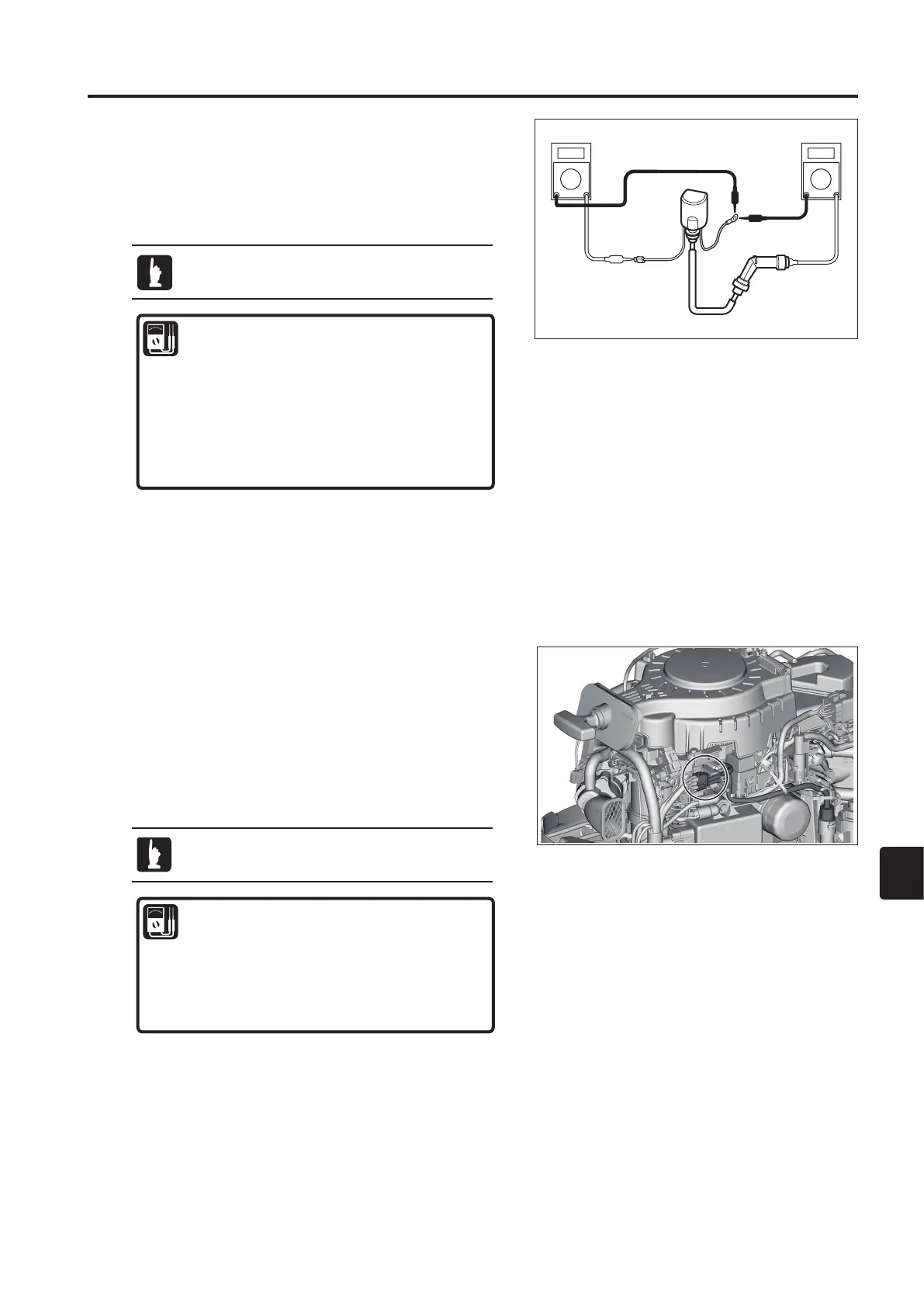

3) Inspection of the Ignition Coil
1. Disconnect the ignition coil coupler.
2. Measure the ignition coil resistance. Replace it if the value
is not as specified.
Ignition Coil Resistance:
Primary coil: between White (W) and Black (B)
WRїDW&
Secondary coil: between high tension cable and
Black (B)
WRNїDW&
Secondary coil: between plug cap and Black (B)
WRNїDW&
3. Install the plug cap on the high tension cable by turning it
clockwise.
4. Connect the plug cap to the spark plug.
This test can be conducted without removing the
part.
