4-33
4st 25/30 2022

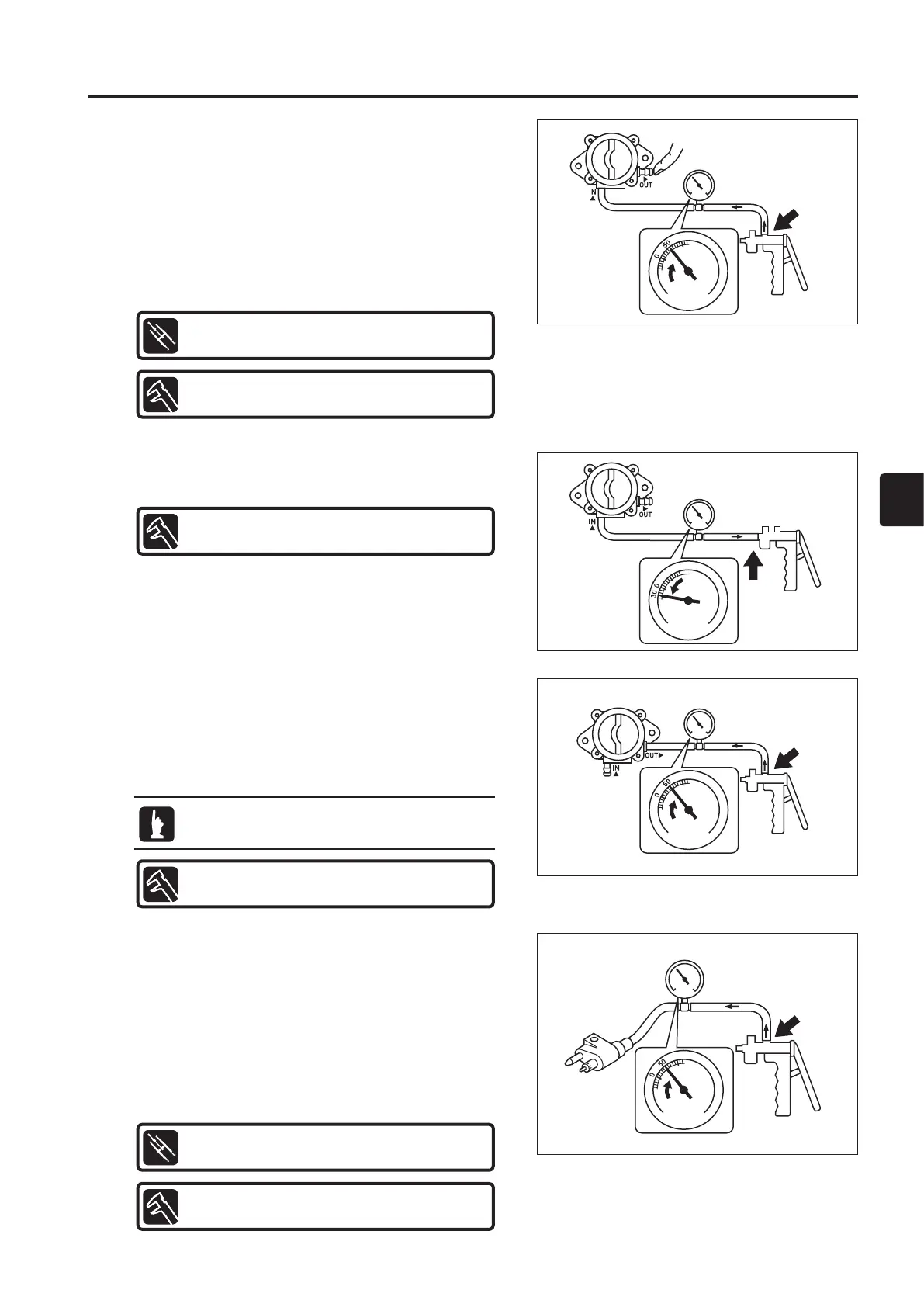

3) Inspection of Fuel Pump
1. Remove the fuel hoses (2 pcs.) from the fuel pump.
2. Connect the vacuum/pressure gauge to the inlet of the fuel
pump.
3. Close the fuel pump outlet with your finger and apply the
specified pressure. Make sure there are no air leaks.
4. With the outlet closed, apply the specified vacuum
pressure to check that there are no air leaks.
5. Connect the vacuum/pressure gauge to the outlet of the
fuel pump.
6. Apply the specified pressure to make sure that there are
no air leaks. Replace if necessary.
Specified Pressure:
0.05 MPa (7 psi) [0.5 kgf/cm
2
]
Specified vacuum pressure:
ï03DïSVL>ïNJIFP
2
]
Specified Pressure:
0.05 MPa (7 psi) [0.5 kgf/cm
2
]
Vacuum/Pressure Gauge:
P/N. 3AC-99020-1
The air-tightness of the fuel pump can be increased
by wetting the inside of the fuel pump with gasoline.
4) Inspection of Fuel Connector
1. Check fuel connector for crack and damage.
2. Connect vacuum/pressure gauge to outlet of fuel
connector.
3. Apply the specified pressure, and check if the pressure is
maintained for 10 seconds. Replace if necessary.
Vacuum/Pressure Gauge:
P/N. 3AC-99020-1
Specified Pressure:
0.029 MPa (4 psi) [0.3 kgf/cm
2
]
