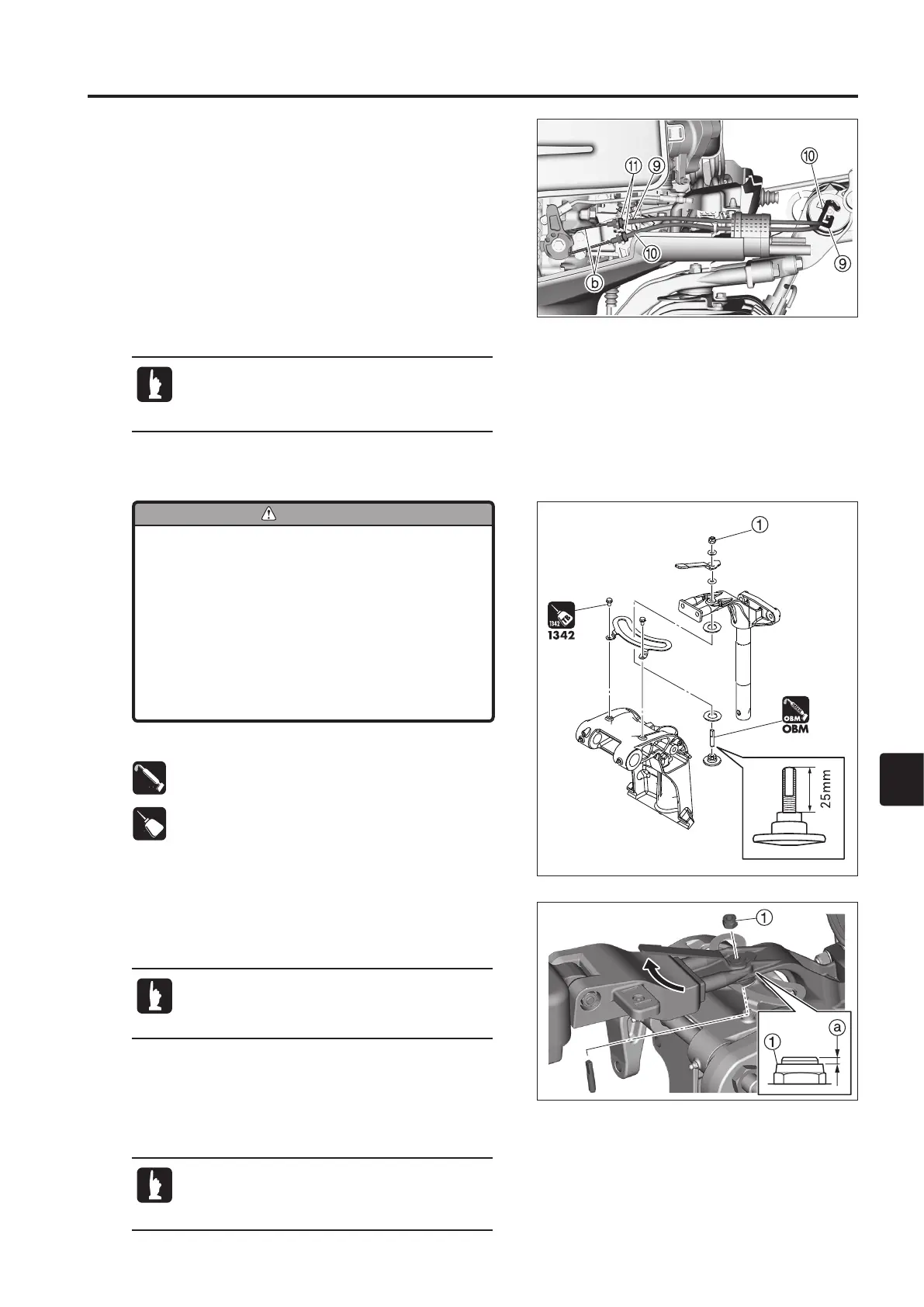

5. Install the cable 9 of the inner wire b that stretches when
the throttle grip is set to the fully closed position.
6. Next, install the other cable 0 (of the inner wire b that
stretches when the throttle grip is set to the fully open
position).
7. Adjust the position of the lock nuts q of the throttle cable
so that the throttle grip can reach the fully open and fully
close positions.
Adjust the cable tension so that the cable moves
approximately 1 mm when pushed lightly with a
finger.
•
The friction lever is not for locking the
steering handle in place. Do not release
your hands from the handle while
operating the outboard motor.
•
The weight of the steering handle exerts
a direct impact on the operation of
the outboard motor. Never tighten the
adjusting nut too tightly as this may lead
to an accident.
1. Install the friction plate and tiller handle assy.
4. Move the friction lever to the right to slide it to the
release position to check that the outboard motor can be
moved smoothly. If not, repeat steps 2 to 4 to make fine
adjustments.
To prevent the nylon nut from falling, tighten the
bolt until 1 ridge a of the screw thread can be
seen above the nylon nut upper end.
Tighten the nylon nut 1 to approximately 5 N ·
m (4 lb · ft) [0.5 kgf · m] and check the steering
operation.
GREASE
OBMOBM
OBM
TB
13421 342
1342
3) Adjustment of Friction Lever
2. Move the friction lever to the left to slide it to the tightening
position.
3. Tighten the nylon nut 1 until the steering operation
becomes heavy.
