5. Remote Control Components

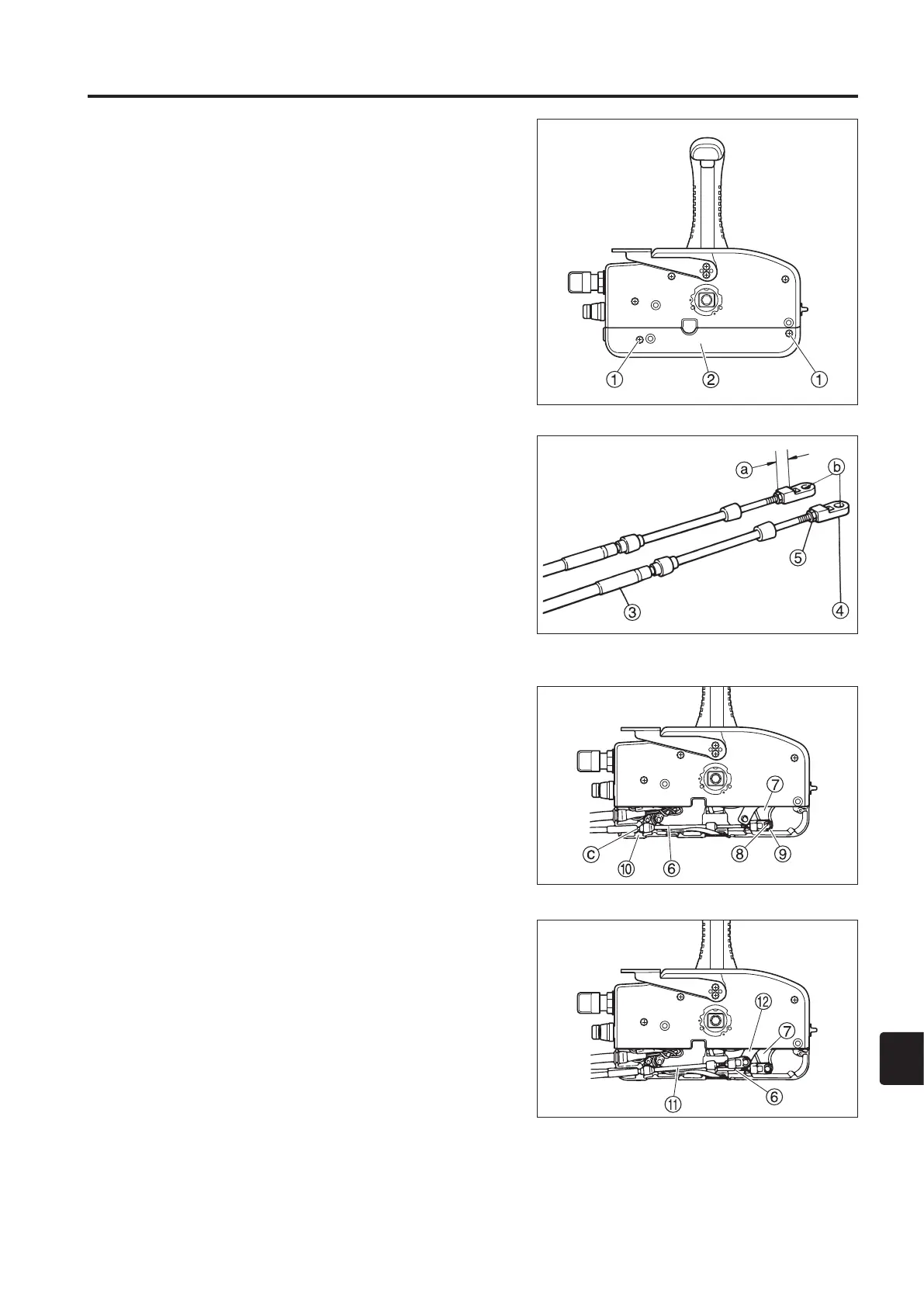

1) Installation of the Remote Control
Cable (Remote Controller Side)
1. Loosen the screws
1
on the rear panel and remove the
rear panel
2
.
2. Screw about 11 mm (0.43 in) of the enclosed terminal
eye
4
into the threaded section at the end of the remote
control cable
3
and secure it with a nut
5
. Then, apply
grease on the mounting hole b of the terminal eye end.
5. Follow the same procedure as the remote control cable for
the shift to install the remote control cable for the throttle
q in the throttle arm w.
3. Insert the outer groove c of the remote control cable for
the shift
6
into the clamp groove of the housing. Next,
insert the terminal eye into the pin
8
at the end of the shift
arm
7
and secure it with the E-ring
9
.
4. Insert the enclosed grommet
0
into the clamp groove.
a Approx. 11 mm (0.43 in)
6
Remote control cable for the shift
7 Shift arm
6. Fix the rear panel securely with 2 screws.
