3-23
3
4st 25/30 2022
NN
R
R
F
F

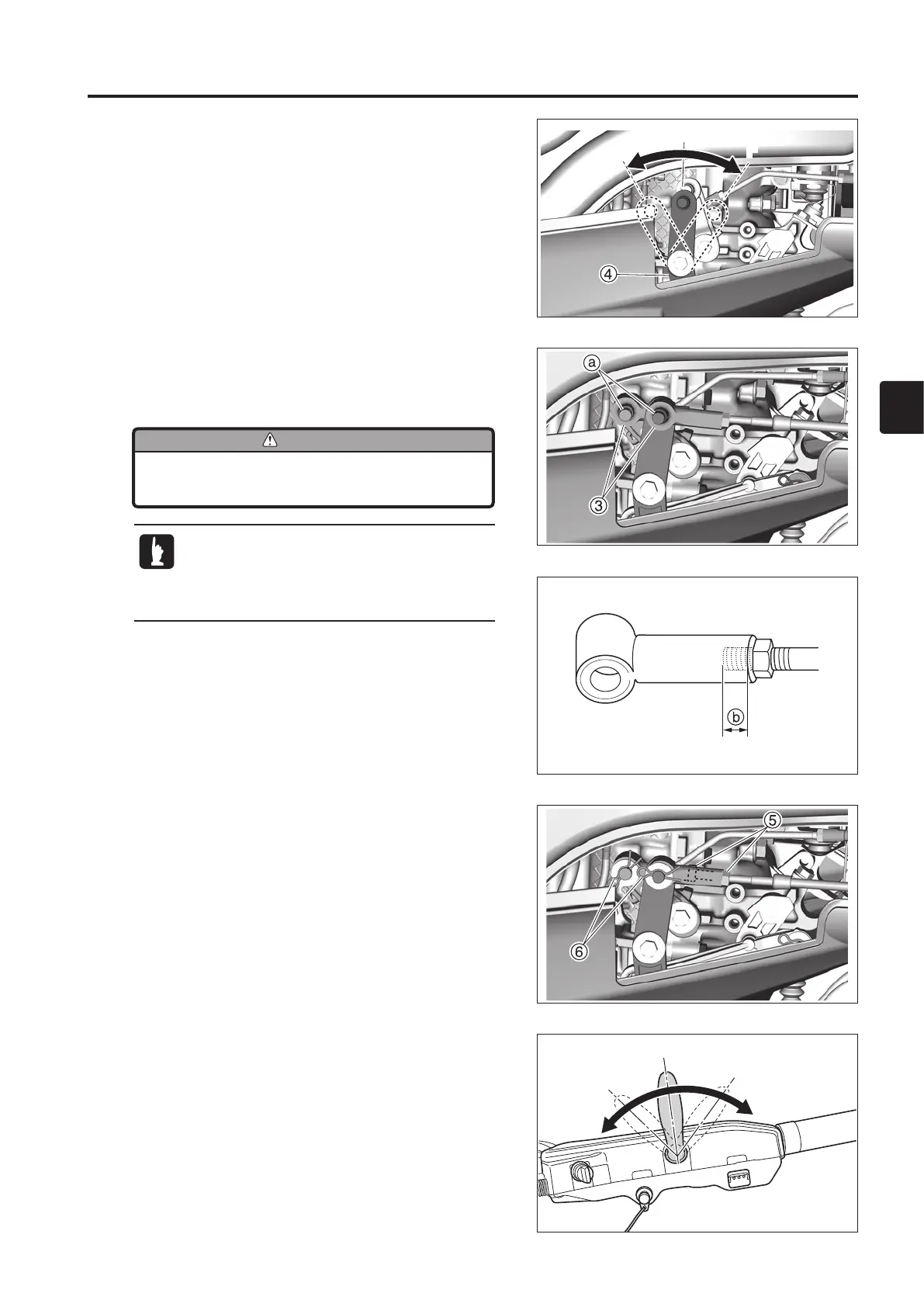

4. Turn the shift arm
4
to the Forward (F), Neutral (N)
or Reverse (R) position, then turn it to the Neutral (N)
position after confirming the position.
6. Tighten the nut
5
and install the cable joint on the pin
before securing it with a washer and R pin
6
.
7. Operate the shift lever
2
and check whether it moves to
the Forward (F), Neutral (N) and Reverse (R) positions.
R
F
N
5. Adjust the screw-in amount of the cable joint
3
so that the
hole of the cable joint is aligned with the throttle arm and
shift arm pin
a
.
Screw in a minimum of 10 mm (0.39 in)
b
of
the cable joint.
•
The cable joint is shipped together with the
outboard motor in the packing box.
•
When adjusting the cable joint, adjust it with the
cable fully pushed in.
