6-20
Lower Unit
4st 25/30 2022

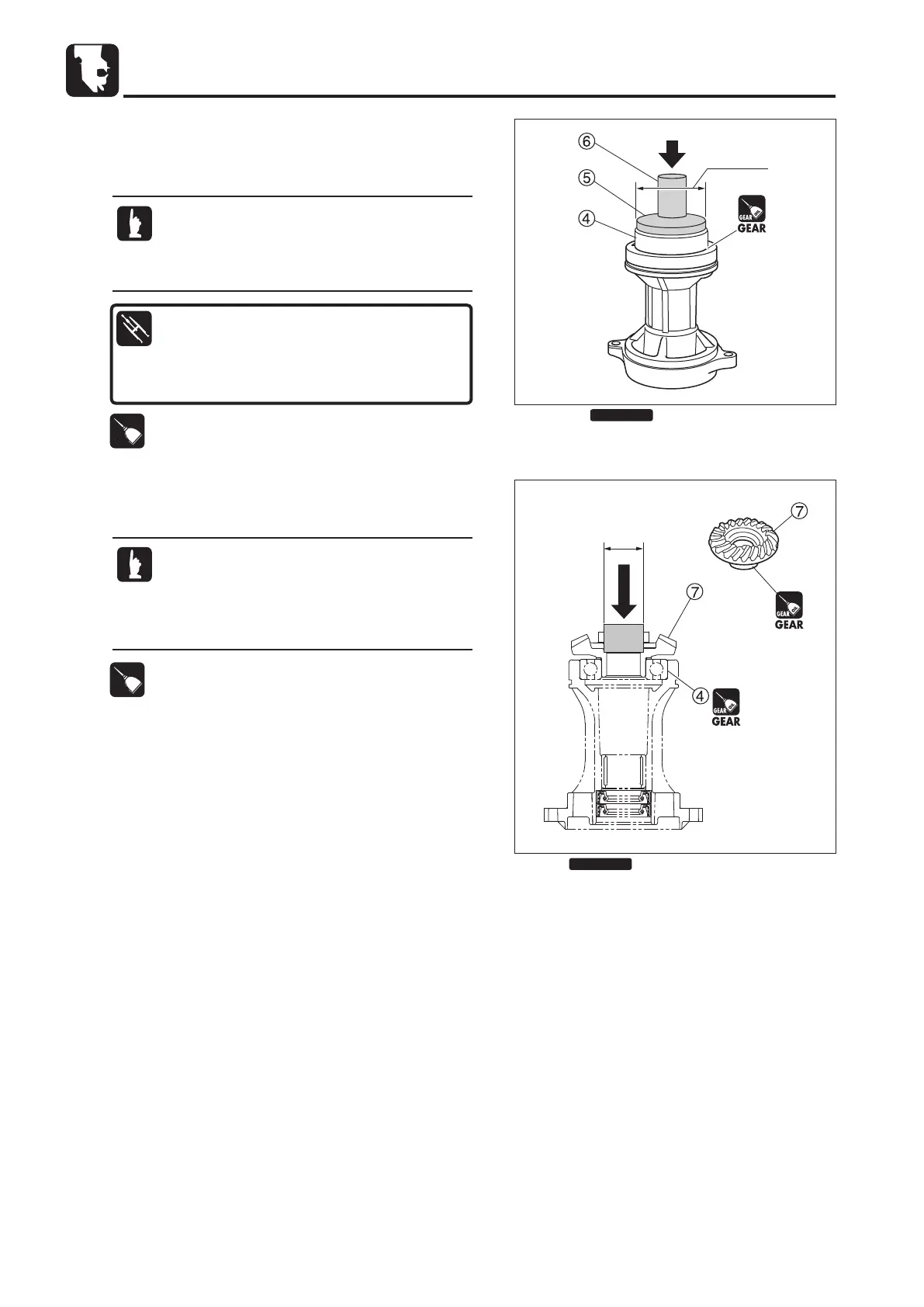

3. Install the ball bearing 4.
Use the C gear bearing press tool 5 to assemble a new
bearing to the propeller shaft housing.
•
Clean the bearing installation surface and apply
gear oil before installation.
•
Install the bearing with the mark facing the tool
side.
•
Clean the bearing installation surface of
the bevel gear C and apply gear oil before
installation.
•
Use a mandrel that contacts the inner face of
the bevel gear (not the clutch face).
OIL
GEARGEAR
GEAR
OIL
GEARGEAR
GEAR
4 Ball Bearing
Do not reuse.
4 Bearing
Do not reuse.
51.5 mm
ÒÑÖË
23.9 mm
4 . Assemble the bevel gear C 7 to the bearing using a press
and an appropriate mandrel.
C Gear Bearing Press Tool 5:
P/N. 3AC-99905-0
Driver Rod 6:
P/N. 3AC-99702-0
To Next Page
