3. Power Tilt/Gas-Assist Type

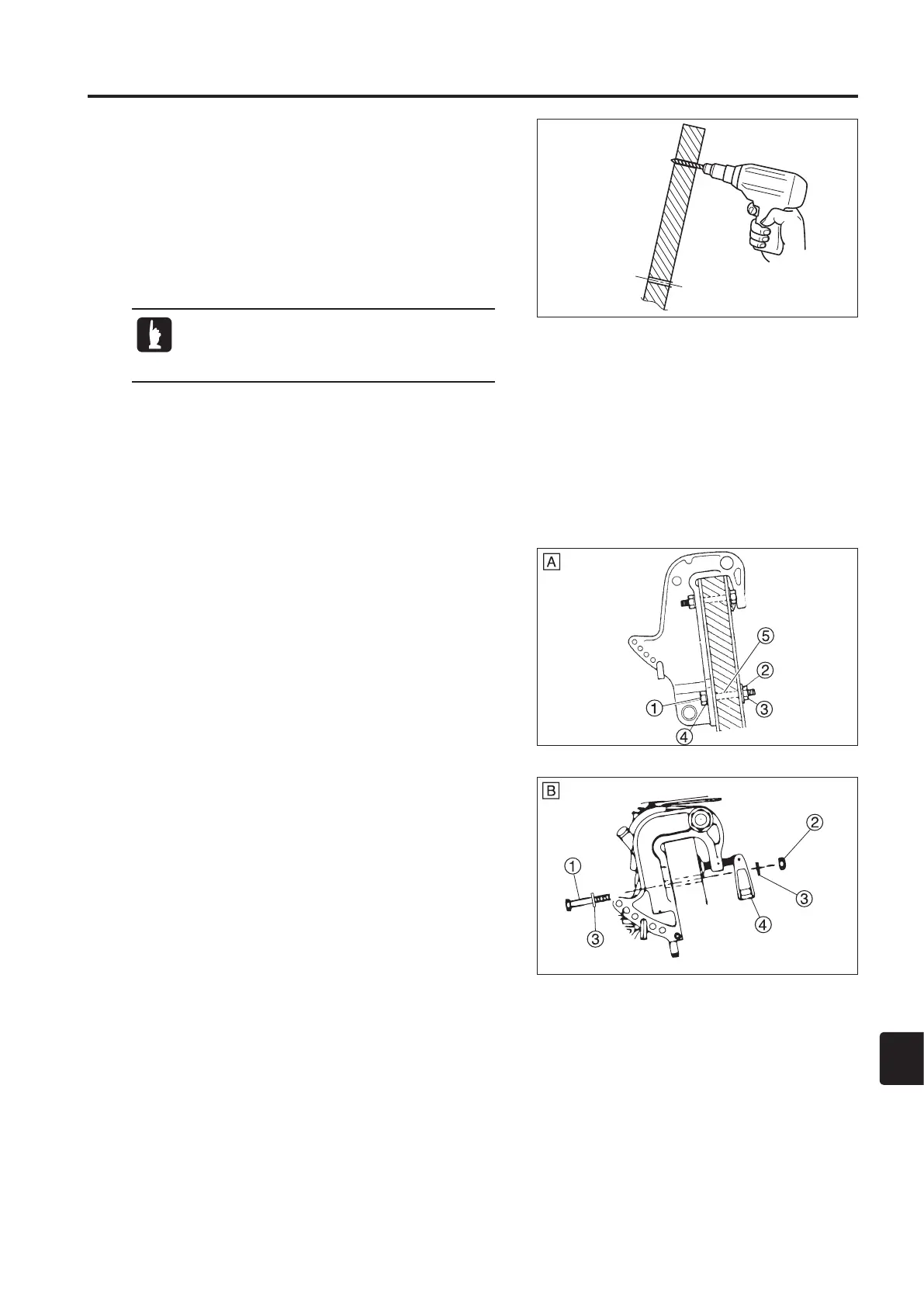

Mark the mount holes and drill 4 holes with a diameter of
12.5 mm (0.49 in).
Manual Tilt Type
Decide the mounting location and firmly tighten the clamp
screw handle. Mark the mount holes and drill 2 holes with
a diameter of 9.0 mm (0.35 in).
To align correctly with the positions of the holes
in the outboard motor's transom bracket, make
holes that are perpendicular to the transom.
4. Refer to "Installation Dimensions" and install the outboard
motor at the recommended height.
5. Secure the outboard motor with the enclosed mounting
bolts and nuts as shown in the diagram.
A Power Tilt/Gas-Assist Type
1: Bolt 12 x 105 mm (0.47 x 4.13 in), (4pcs)
2: Flat washer large (4pcs)
3: Nylon nut (4pcs)
4: Flat washer small (4pcs)
5: Marine sealing agent: Apply, avoiding the threaded
section of the bolt.
B Manual Tilt Type
1: Bolt 8 x 85 mm (0.31 x 3.35 in), (2pcs)
2: Nylon nut (2pcs)
3: Flat washer (4pcs)
4: Clamp screw
