TOHATSU MFS 25d Service Manual

2-25
2
4st 25/30 2022
AB

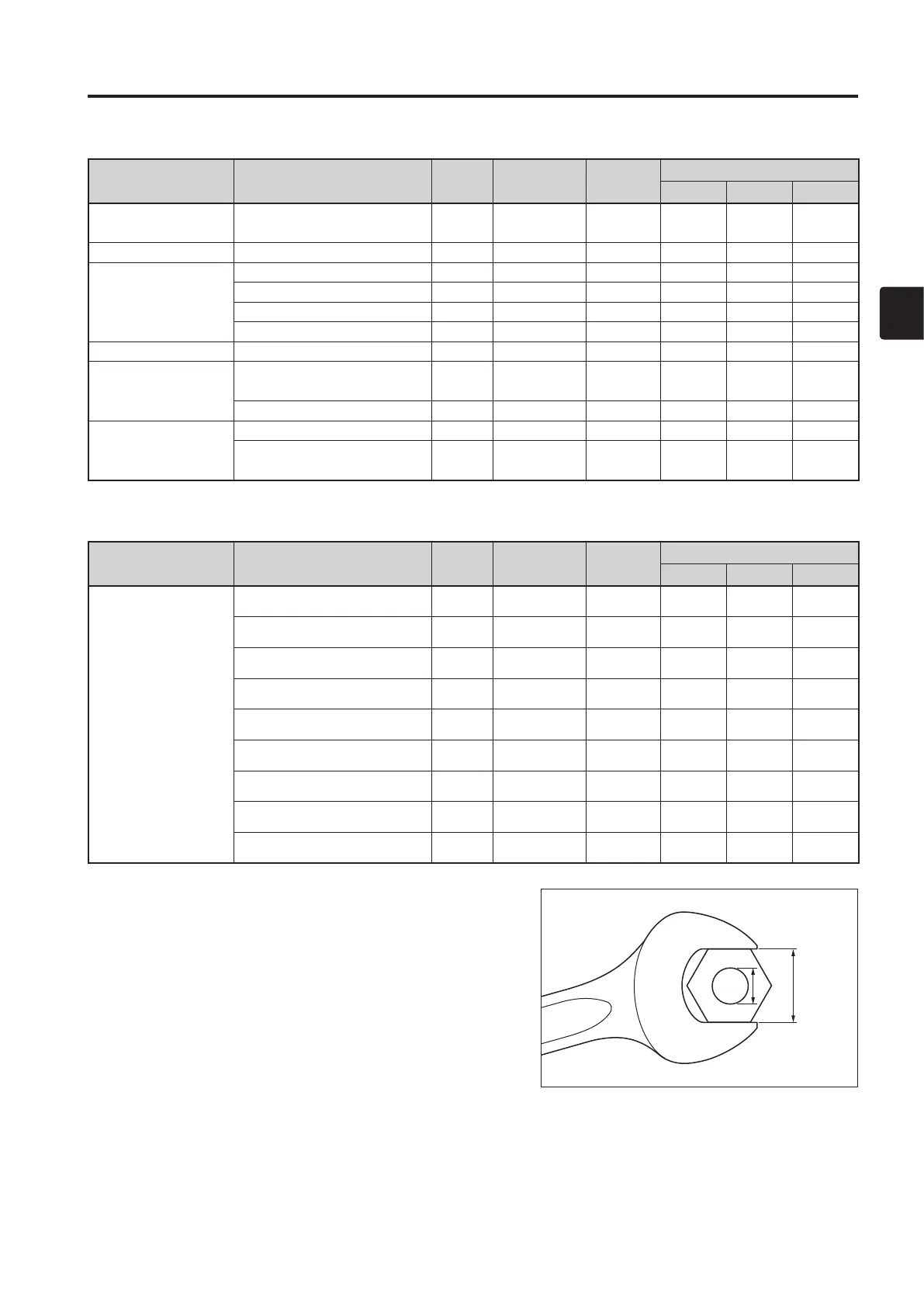

Fastened Components Wrench A Screw B x Pitch
Type of
Fastener
Tightening Torque
N · m lb · ft kgf · m
Clamp Bracket
Tilt Tube 32
7/8-14
UNF-2B
Nylon Nut 24 18 2.4
PT Assy
Manual Valve - M12 Special 1.8 1.3 0.18
Gear Case
Bevel Gear B Nut 17 M12 x 1.0 Nut 35 26 3.5
Propeller Nut 19 M12 x 1.5 Nut 25 18 2.5
Oil Plug - M8 x 1.25 Special 4 3.0 0.4
Extension Housing Mounting Bolt M8 x 1.25 Bolt 19 1.4 1.9
Steering Bracket
Steering Shaft Arm M10 x 1.25 Bolt 43 32.4 4.4
Tiller Handle Cover
Buzzer/Push Switch Holding Plate
Mounting Screw
-6 x 12
Tapping
Screw
3.5 2.6 0.35
Installation of Main Switch Assy M16 x 1.5 Resin nut 3.5 2.6 0.35
Tiller Handle
Installation of Stop Switch M16 x 1.5 Resin nut 3.5 2.6 0.35
Tiller Handle Cover Mounting
Screw
- M5 x 0.8
Cross-head
screw
1.5 1.1 0.15
Fastened Components Wrench A Screw B x Pitch
Type of
Fastener
Tightening Torque
N · m lb · ft kgf · m
Standard Tightening
Torque
M4
- M4x0.7 Bolt, Nut 1.5 1.1 0.15
M5 8 M5x0.8 Bolt, Nut 3 2.2 0.3
M6 10 M6x1.0 Bolt, Nut 6 5 0.6
M8 13 M8x1.25 Bolt, Nut 13 10 1.3
M10 17 M10x1.25 Bolt, Nut 27 20 2.7
M4 - M4x0.7 Screw 1.5 1.1 0.15
M5 - M5x0.8 Screw 2.5 1.8 0.25
M6 - M6x1.0 Screw 3.5 2.5 0.35
M8
- M8x1.25 Screw 4.5 3.3 0.5
