D

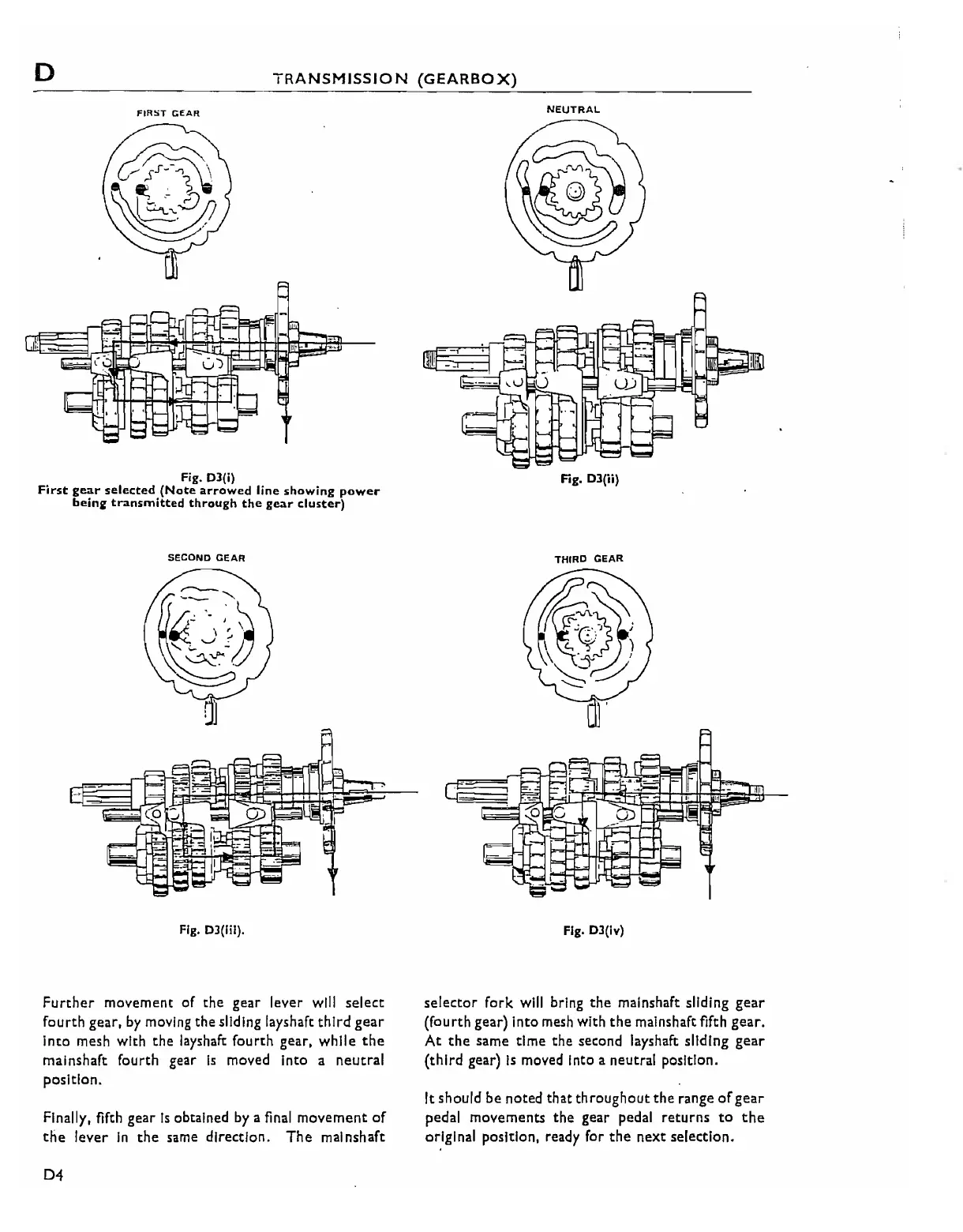

FIR~T GEAR
TRANSMISSION (GEARBOX)
NEUTRAL
Fig.03(i)
First gear selected (Note al"l"owed line showing power
beini transmitted through the gear cluster)
seCOND GEAR
Fig. 03(H)
THIRD GEAR
Fig. 03(1iI). Flg.03(lv)
ill
Further movement of the gear lever will select
fourth gear, by moving the sliding layshaft third gear
Into mesh with the layshaft fourth gear, while the
malnshaft fourth gear Is moved Into a neutral
position.
Finally, fifth gear Is obtained by a final movement of
the lever In the same direction. The malnshaft
04
selector fork will bring the malnshaft sliding gear
(fourth gear) Into mesh with the malnshaft fifth gear.
At the same time the second layshaft sliding gear
(third gear) Is moved Into a neutral position.
It should
be noted that throughout the range of gear
pedal movements the gear pedal returns to the
original position. ready for the next selection.
