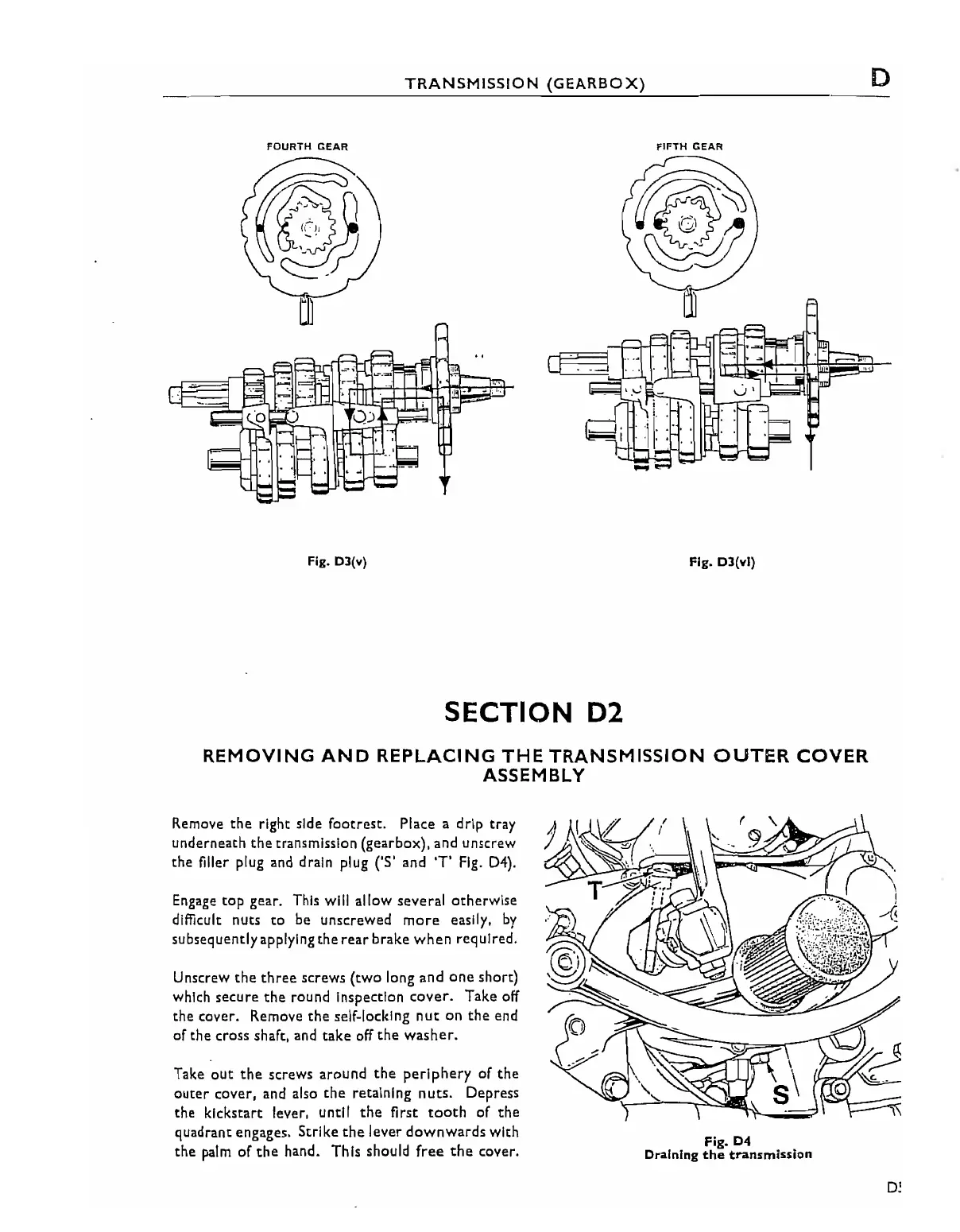

FOURTH
GEAR
Fig. 03(v)
TRANSMISSION
(GEARBOX)
FIFTH
GEAR
~~.-~.~
-I
'"
>,'"
Fig.
03(vl)
SECTION
02
D
REMOVING
AND
REPLACING
THE
TRANSMISSION
OUTER
COVER
ASSEMBLY
Remove
the
right side footrest. Place a drip tray
underneath
the
transmission (gearbox), and unscrew
the filler plug and drain plug ('5' and 'T' Fig. D4).
Engage
top
gear. This will allow several
otherwise
difficult nuts
to
be unscrewed
more
easily.
by
subsequently applying the
rear
brake
when
required.
Unscrew
the
three
screws
(two
long
and
one
short)
which secure
the
round Inspection
cover.
Take off
the cover. Remove
the
self-locking
nut
on
the
end
of the cross shaft, and
take
off
the
washer.
Take
out
the
screws around
the
periphery
of
the
outer cover,
and
also
the
retaining nuts. Depress
the klckstart lever, until
the
first
tooth
of
the
quadrant engages. Strike
the
lever
downwards
with
the
palm of
the
hand. This should
free
the
cover.
Fig.
04
Draining
the
transmission
D5
