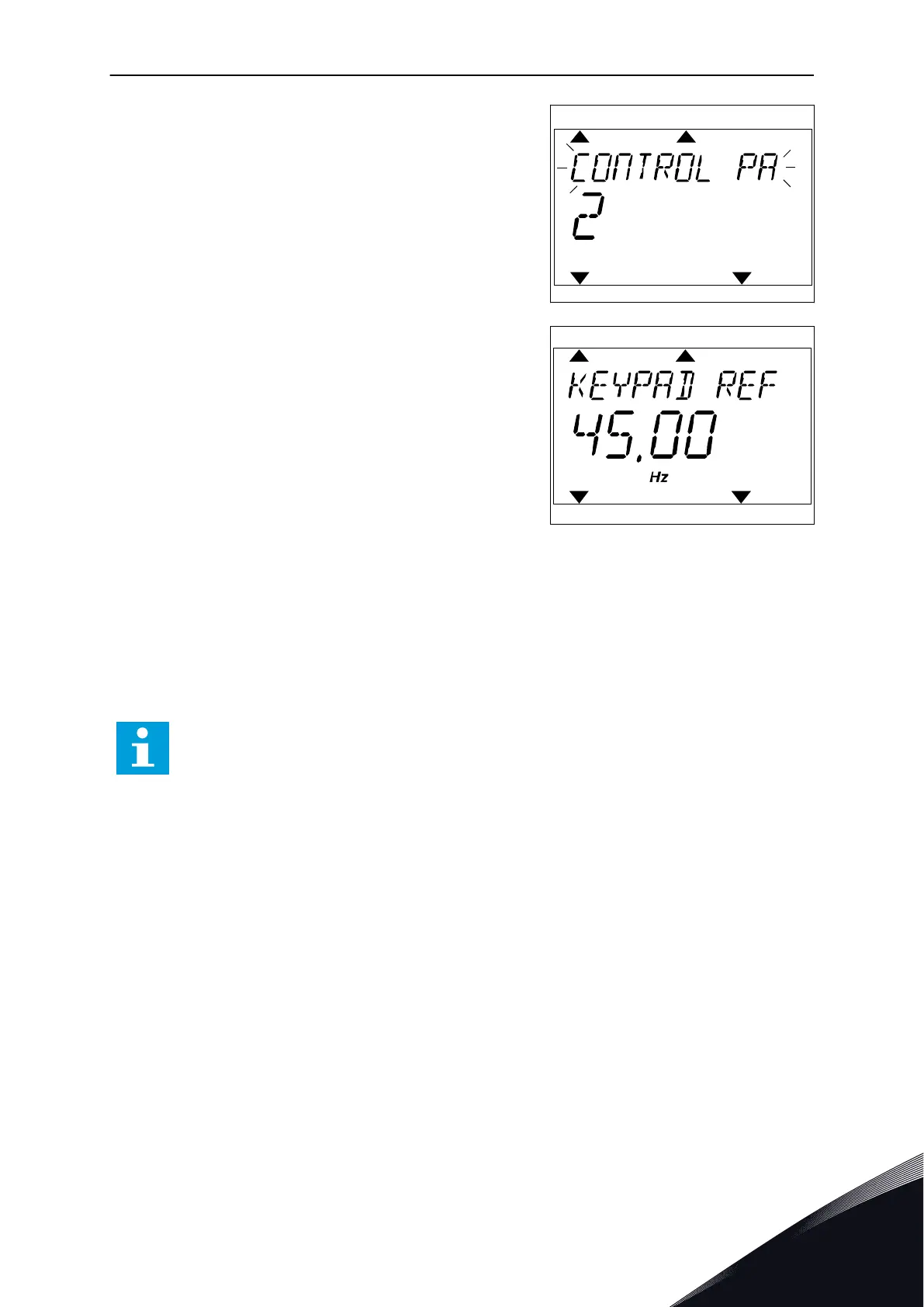

2 To make a selection of the Control page, push the
arrow buttons Up and Down. Go in with the OK
button. The control page opens.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
I/O
REV
FWD
BUS
3 If you use the Local control place and the keypad
reference, you can set P3.3.1.8 Keypad Reference
with the OK button.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
I/O
REV
FWD
BUS
See more information about the Keypad Reference in 5.3 Group 3.3: References). If you use
other control places or reference values, the display shows the frequency reference, which
you cannot edit. The other values on the page are Multimonitoring values. You can make a
selection of the values that show up here (see instructions in 4.1.1 Multimonitor).
CHANGING THE ROTATION DIRECTION
You can change the rotation direction of the motor quickly with the FUNCT button.
NOTE!
The command Change direction is available in the menu only if the current control
place is Local.
1 Anywhere in the menu structure, push the FUNCT
button.
2 To make a selection of the Change direction, push
the arrow buttons Up and Down. Push the OK
button.
3 Make a selection of a new rotation direction. The
current rotation direction blinks. Push the OK
button. The rotation direction changes immediately,
and the arrow indication in the status field of the
display changes.
THE QUICK EDIT FUNCTION
With the Quick edit function, you can have a quick access to a parameter by typing the ID
number of the parameter.
USER INTERFACES VACON · 107
