Vacon 100 flow Applications Manual

STOP
READY I/O
Main Menu
A B C D E
F
H
G
Quick Setup
( 17 )
Monitor
( 5 )
Parameters
( 12 )
M1ID:

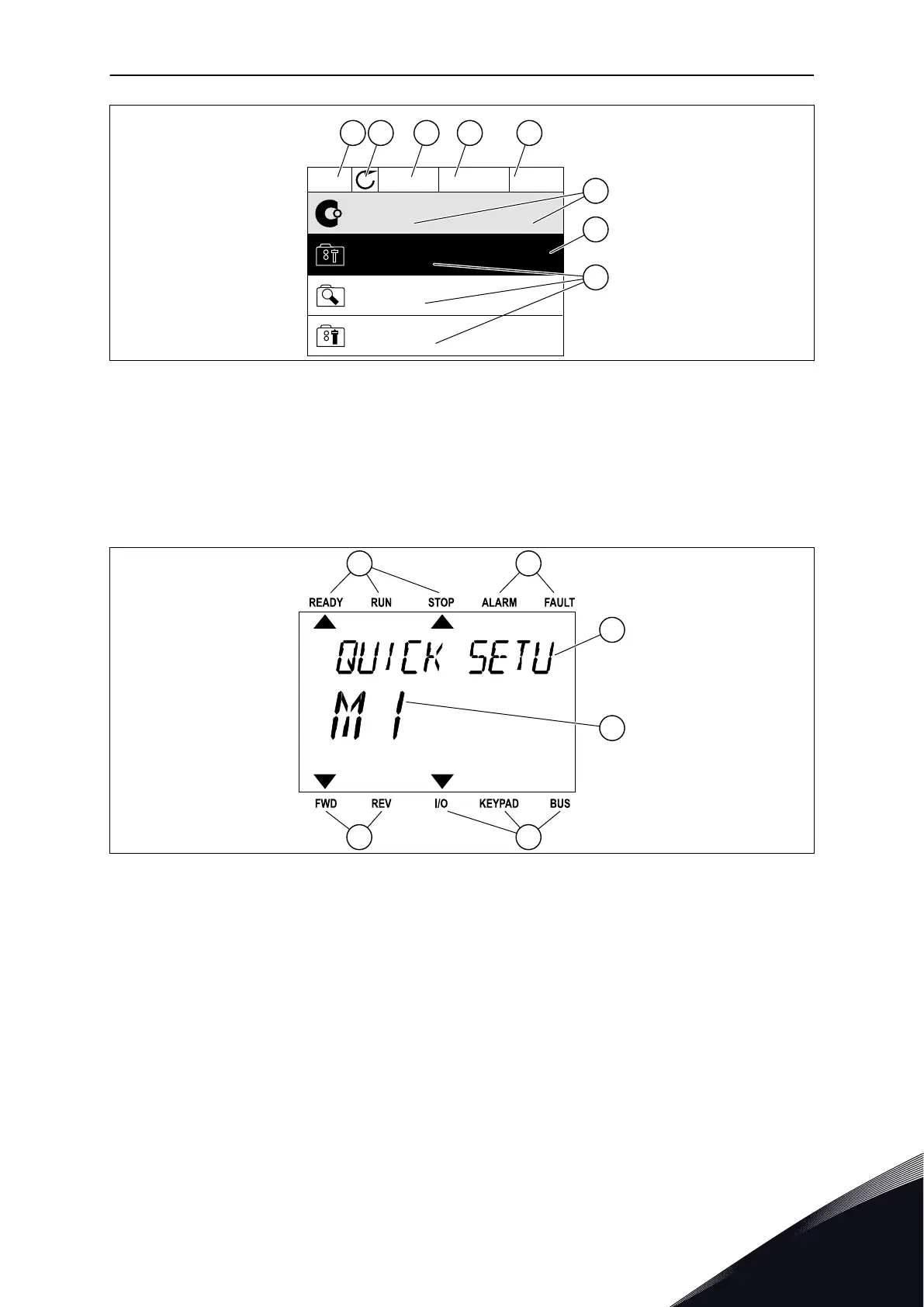

Fig. 2: The graphical display
A. The first status field: STOP/RUN
B. The rotation direction of the motor
C. The second status field: READY/NOT
READY/FAULT
D. The alarm field: ALARM/-
E. The control place field: PC/IO/KEYPAD/
FIELDBUS
F. The location field: the ID number of the
parameter and the current location in
the menu
G. An activated group or item
H. The number of items in the group in
question
A B
F
C
D
E
Fig. 3: The text display. If the text is too long to show, the text scrolls automatically on the display.
A. The indicators of status
B. The indicators of alarm and fault
C. The name of the group or item of the
current location
D. The current location in the menu
E. The indicators of the control place
F. The indicators of the rotation direction
1.3 FIRST STARTUP
After you do power-up of the drive, the Startup wizard starts.
The Startup wizard tells you to give necessary data for the drive to control your procedure.
QUICK STARTUP GUIDE VACON · 13
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
1

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
