SAVING THE PARAMETERS TO THE CONTROL PANEL

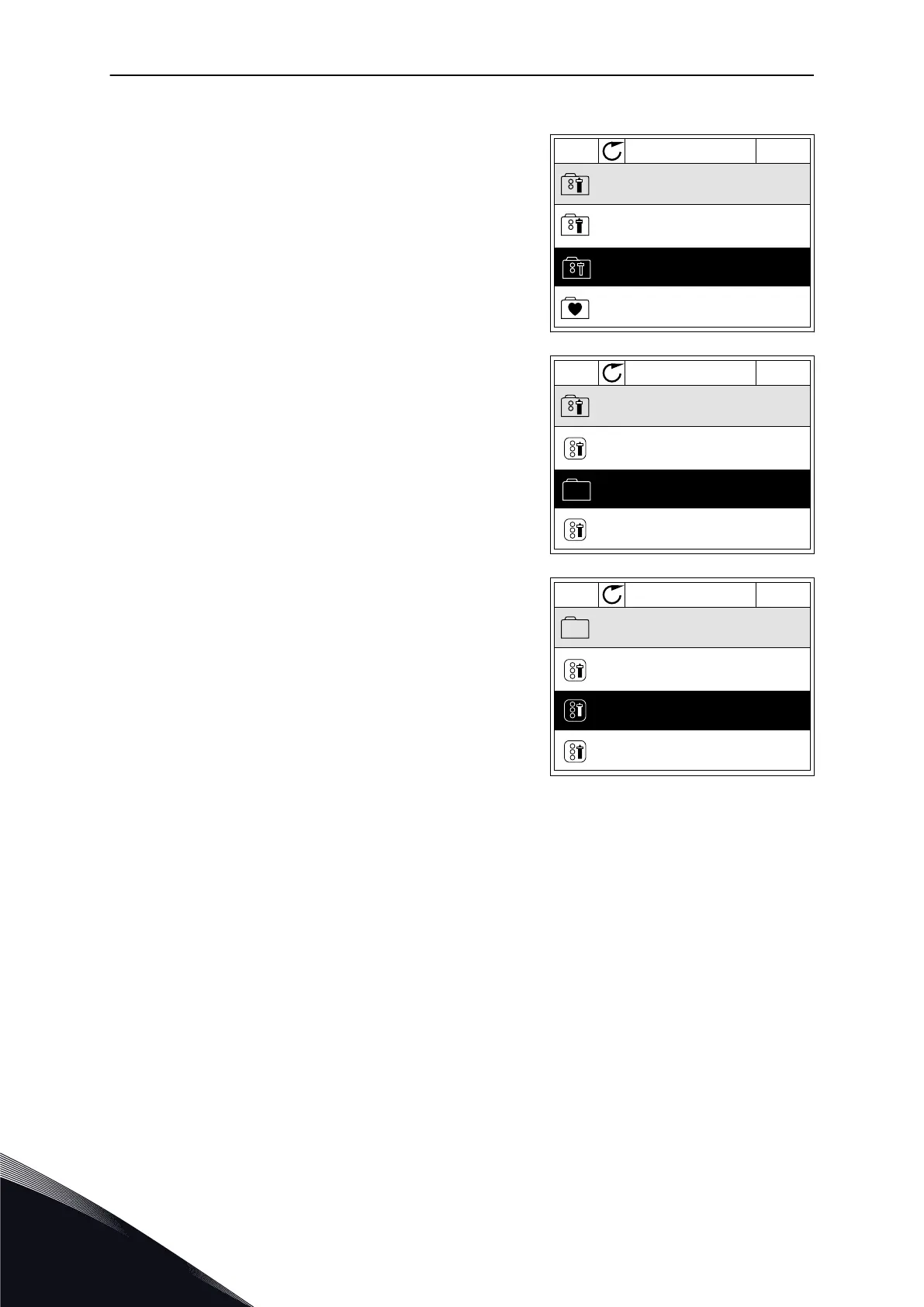

1 Go into the User settings menu.
STOP
READY Keypad
ID: M6
Main Menu
I/O and Hardware
( 9 )
User settings
( 4 )
Favourites
( 0 )
2 Go into the Parameter backup submenu.
STOP
READY Keypad
ID: M6.5
User settings
Language selection
English
Parameter backup
( 7 )
Drive name
Drive
3 Use the arrow buttons Up and Down to make a
selection of a function. Accept the selection with
the OK button.
STOP
READY Keypad
ID: M6.5.1
Parameter backup
Restore factory defaults
Save to keypad
Restore from keypad
The command Restore factory defaults brings back the parameter settings that were made
at the factory. With the command Save to keypad you can copy all the parameters to the
control panel. The command Restore from keypad copies all the parameters from the
control panel to the drive.
3.2.5 COMPARING THE PARAMETERS
With this function, you can compare the current parameter set with 1 of these 4 sets.
•
Set 1 (P6.5.4 Save to Set 1)
•
Set 2 (P6.5.6 Save to Set 2)
•
The defaults (P6.5.1 Restore Factory Defaults)
•
The keypad set (P6.5.2 Save to Keypad)
See more about these parameters in Table 114 The parameter backup parameters in the user
settings menu.
