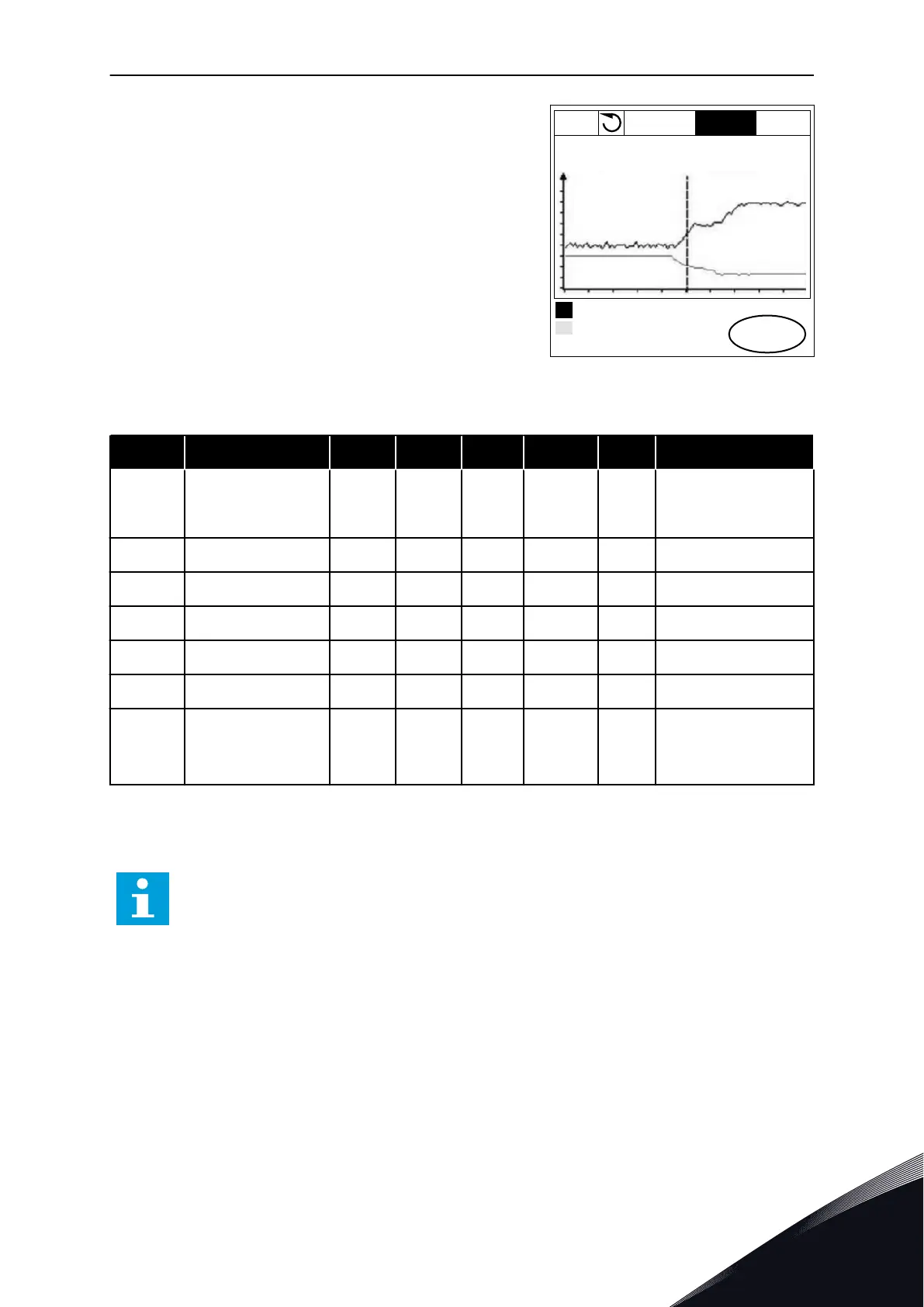

Vacon 100 flow Applications Manual

4 To move the line to see the values of some other
location, use the arrow buttons Left and Right.
RUN
READY ALARM I/O
Motor Current
Motor Speed
0.01A
-254rpm
Table 15: The trend curve parameters
Index Parameter Min Max Unit Default ID Description
M2.2.1 View Trend curve
Go into this menu to
monitor values in a
curve form.
P2.2.2 Sampling interval 100 432000 ms 100 2368
P2.2.3 Channel 1 min -214748 1000 -1000 2369
P2.2.4 Channel 1 max -1000 214748 1000 2370
P2.2.5 Channel 2 min -214748 1000 -1000 2371
P2.2.6 Channel 2 max -1000 214748 1000 2372
P2.2.7 Autoscale 0 1 0 2373
0 = Disabled
1 = Enabled
4.1.3 BASIC
You can see the basic monitoring values and their related data in the next table.
NOTE!
Only the standard I/O board statuses are available in the Monitor menu. You can
find the statuses of all the I/O board signals as raw data in the I/O and Hardware
menu.
Do a check of the statuses of the expander I/O board in the I/O and Hardware menu when the
system asks you to do it.
MONITORING MENU VACON · 117
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
4

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
