Vacon 100 flow Applications Manual

** = For the DIP switch configurations in VACON
®
100 X, see the VACON 100
®
X Installation
manual.
A
B
C

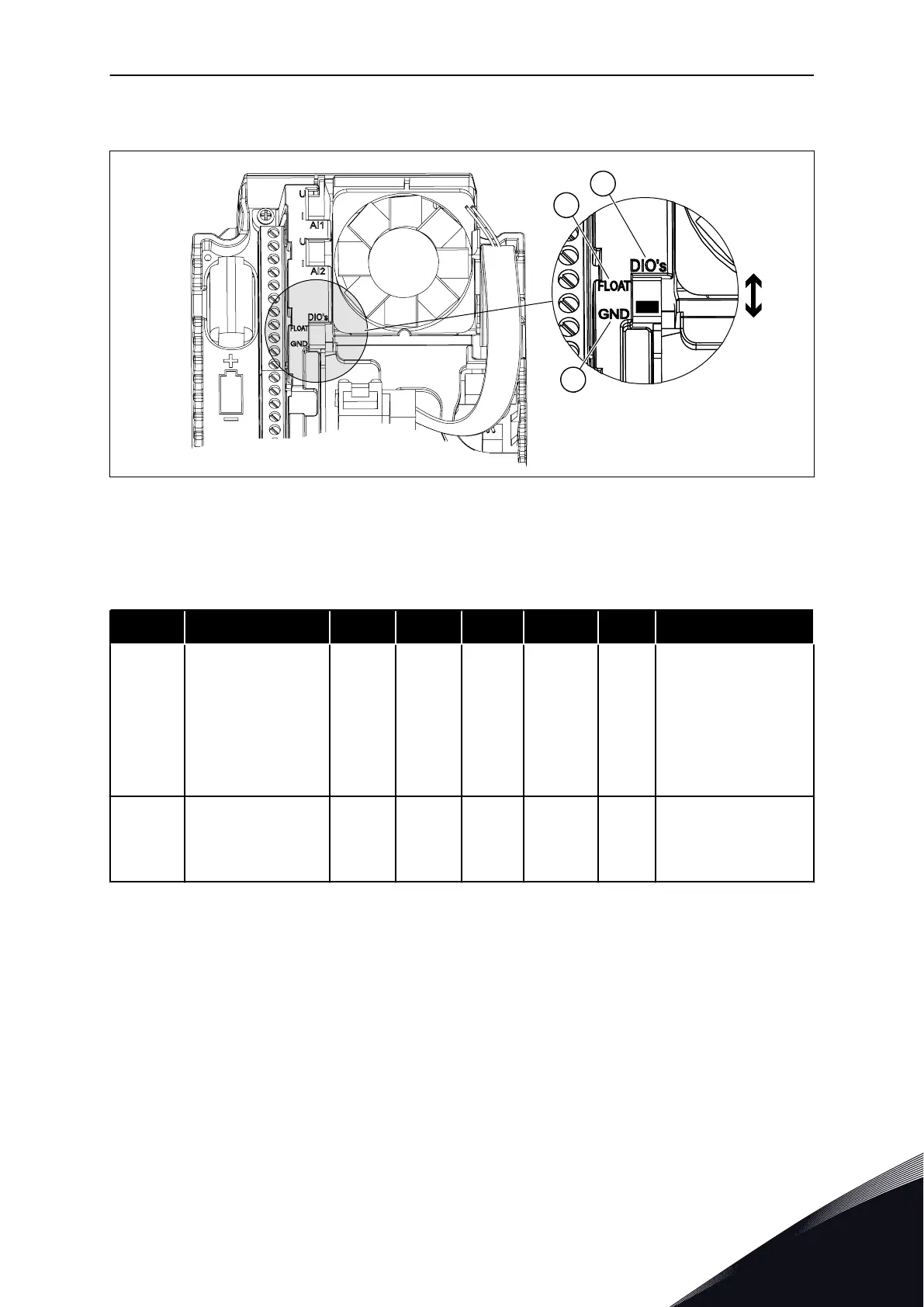

Fig. 5: The DIP switch
A. Digital inputs
B. Float
C. Connected to GND (default)
Table 2: M1.1 Wizards
Index Parameter Min Max Unit Default ID Description
1.1.1 Startup Wizard 0 1 0 1170
0 = Do not activate
1 = Activate
The selection Activate
starts the Startup wiz-
ard (see Table 1 The
Startup wizard).
1.1.2 Fire Mode Wizard 0 1 0 1672
The selection Activate
starts the Fire mode
wizard (see 2.6 Fire
mode wizard).
QUICK STARTUP GUIDE VACON · 17
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
1

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
