Vacon 100 flow Applications Manual

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 30 A B
21 22 23 24 25 26 33 34
Slot A
Slot B
C
A
B
D
E
A.1
G
F
A.2 A.1 A.2 A.3 A.4 A.5 A.6

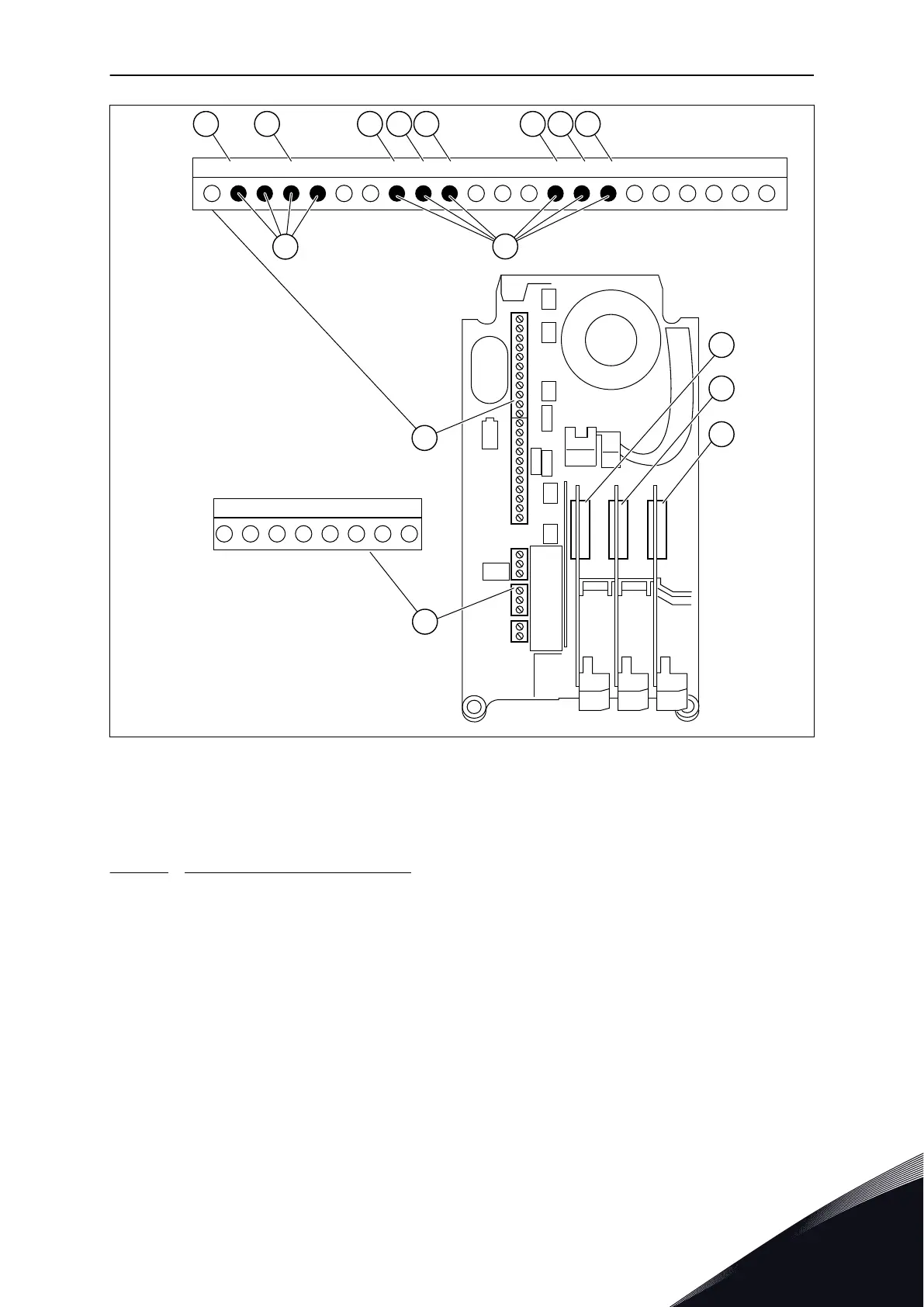

Fig. 52: The option board slots and programmable inputs
A. Standard board slot A and its terminals
B. Standard board slot B and its terminals
C. Option board slot C
D. Option board slot D
E. Option board slot E
F. Programmable digital inputs (DI)
G. Programmable analogue inputs (AI)
10.6.1.1 Programming of digital inputs
You can find the applicable functions for digital inputs as parameters in parameter group
M3.5.1. To give a digital input to a function, set a value to the correct parameter. The list of
applicable functions shows in Table 43 Digital input settings.
Example
PARAMETER DESCRIPTIONS VACON · 251
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
10

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
