0%
100%50%
C
B
A
D
[Hz]
[%]
0 mA 20 mA10 mA

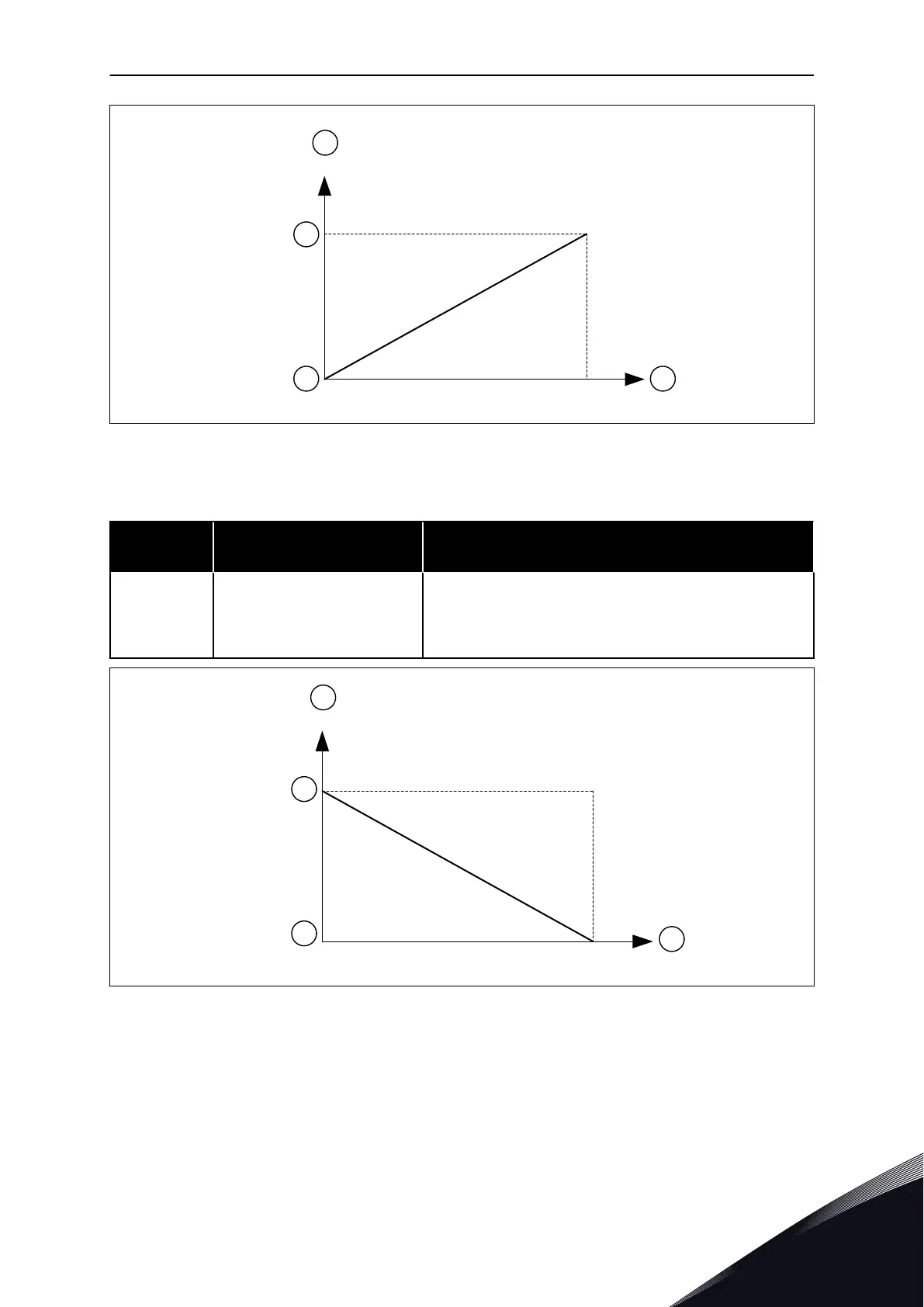

Fig. 61: AI1 signal inversion, selection 0
A. Frequency reference
B. Max freq reference
C. Min freq reference
D. Analogue input signal
Selection
number
Selection name Description
1 Inverted
Signal inversion. The value 0% of the analogue input signal
agrees to the Maximum Frequency Reference. The value
100% of the analogue input signal agrees to the Minimum
Frequency Reference.
0% 100%50%
C
B
A
D
[Hz]
[%]
0 mA 20 mA10 mA
Fig. 62: AI1 signal inversion, selection 1
A. Frequency reference
B. Max freq reference
C. Min freq reference
D. Analogue input signal
PARAMETER DESCRIPTIONS VACON · 271
