Vacon 100 flow Applications Manual

17:00:00
07:00:00
M3.12.1.3
ID:1466
STOP
READY I/O
Interval 1
Days
OFF Time
ON Time
0

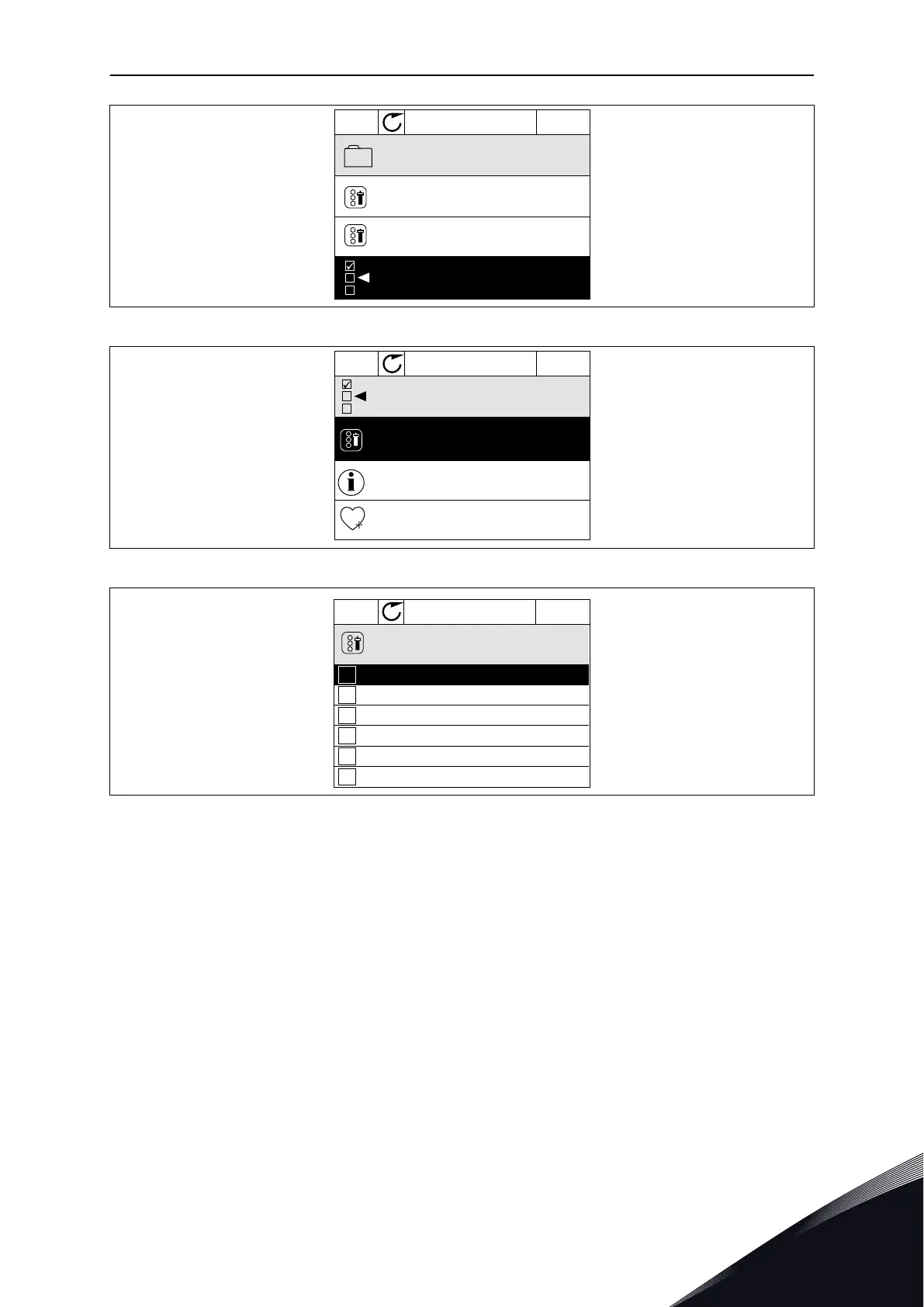

Fig. 76: Using timer functions to make an interval
M3.12.1.3
ID:
STOP
READY I/O
Edit
Help
Add to favourites
Days
Fig. 77: Going into the Edit mode
STOP
READY I/O
Days
M3.12.1.3.1ID:
Monday
Tuesday
Wednesday
Thursday
Friday
Sunday
Fig. 78: The checkbox selection for the weekdays
Interval 2
P3.12.2.1: ON Time: 09:00:00
P3.12.2.2: OFF Time: 13:00:00
P3.12.2.3: Days: Saturday, Sunday
P3.12.2.4: Assign to channel: Time channel 1
Timer 1
P3.12.6.1: Duration: 1800 s (30 min)
P3.12.6.2: Timer 1: DigIn SlotA.1 (The parameter is located in the digital inputs menu.)
P3.12.6.3: Assign to channel: Time channel 1
P3.5.1.1: Control signal 1 A: Time Channel 1 for the I/O Run command
