Vacon 100 flow Applications Manual

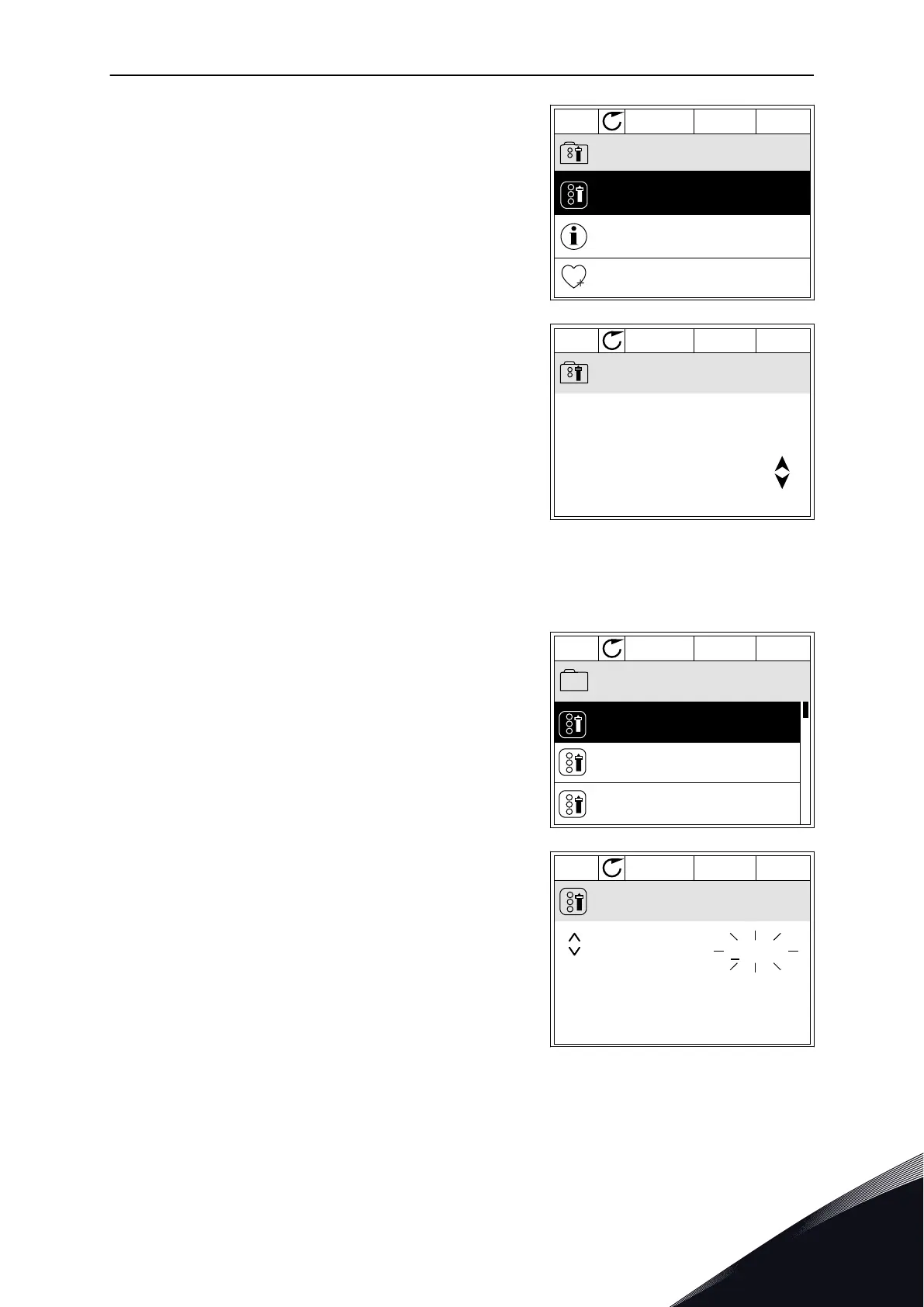

2 To go to the Edit mode, push the OK button 2 times
or push the arrow button Right.
STOP
READY
I/O
Rem Control Place
M3.2.1ID:
Edit
Help
Add to favourites
3 To set a new value, push the arrow buttons Up and
Down.
STOP
READY
I/O
Rem Control Place
M3.2.1ID:
FieldbusCTRL
I/O Control
4 To accept the change, push the OK button. To
ignore the change, use the Back/Reset button.
EDITING THE NUMERICAL VALUES
1 Find the parameter with the arrow buttons.
STOP
READY
I/O
Frequency Ref
P3.3.1.1ID:101
MaxFreqReference
0.00 Hz
MinFreqReference
50.00 Hz
PosFreqRefLimit
320.00 Hz
2 Go to the Edit mode.
STOP
READY
I/O
MinFreqReference
P3.3.1.1ID:101
0.00 Hz
Min: 0.00Hz
Max: 50.00Hz
USER INTERFACES VACON · 93
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
3

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
