17.10.5.3 Automatic setting/unsetting of other panel operations
Panel operations including triggers, enabling of users, zones, physical outputs can be automatically set or
unset using On/Off, True/False or Active/Inactive state configurations.
On/Off, True/False or Active/Inactive states can be assigned to an output that effectively turns on or off
and can be configured for any day of the week. State configurations have a maximum of 4 set times and 4
unset times. Configured times use the 24 hour clock (hh:mm). If the hour is 24, then minutes must be 00,
such as midnight is 24:00. Each configuration consists of a pairing of settings for On/Off, True/False,
Active/Inactive states. Any one setting without a respective corresponding setting is disregarded.
17.10.6 Change own PIN
To change a PIN, see Changing Engineer PIN and web password on page208.
17.10.7 Configuring advanced settings
This section covers:
l Cause and Effect below
l Mapping Gates below
l Triggers on the facing page
l Audio/Video Verification on page291
l Updating SPC Licenses on page294
17.10.7.1 Cause and Effect
1. Select Configuration > Advanced > Cause and Effect.

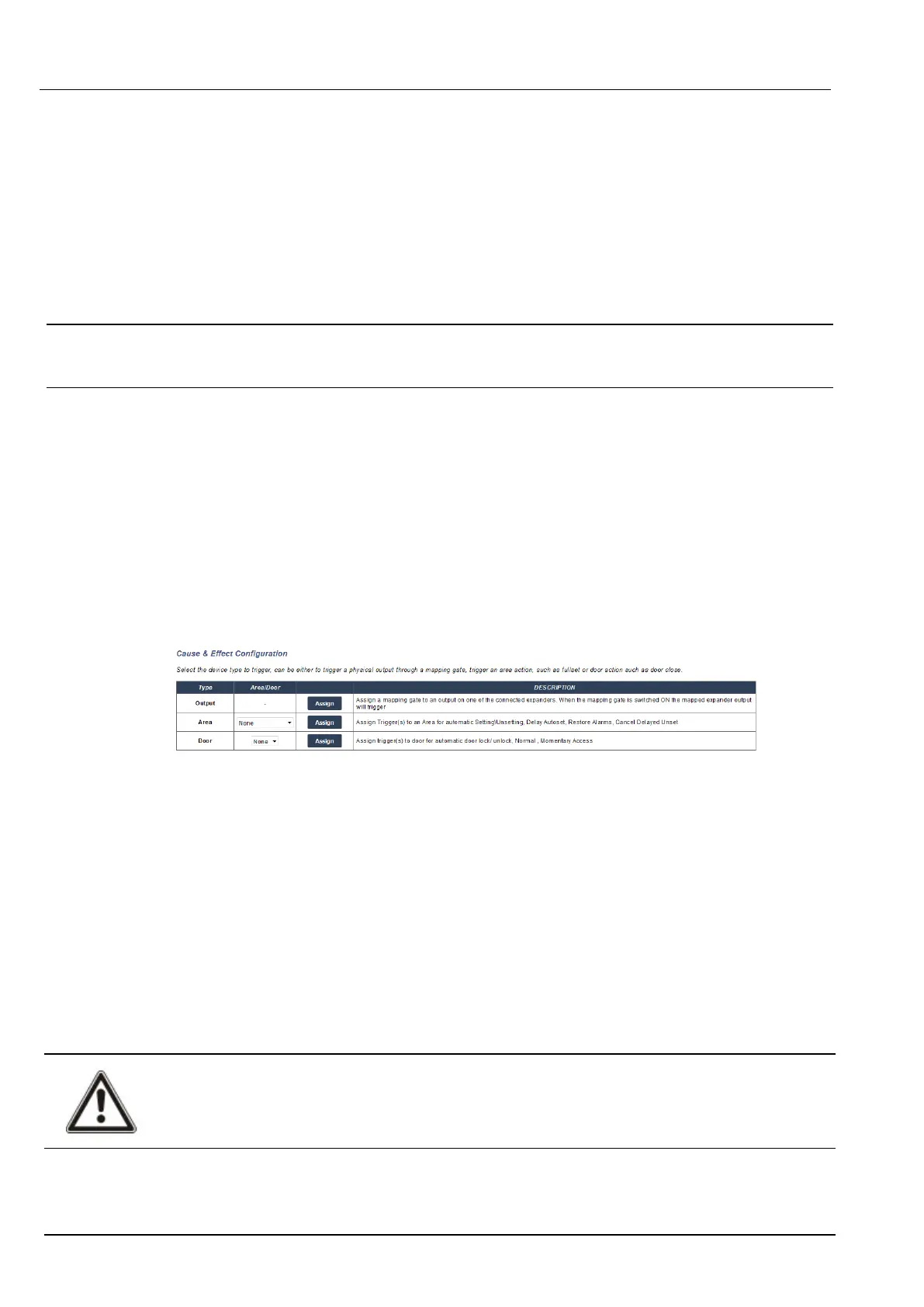

The following page will be displayed.
2. Click an Assign button to perform one of the following actions:
l Output: Assign a mapping gate (virtual output) to trigger a physical output. Select this option to
display the Mapping Gate - List page. For more information see Mapping Gates below.
l Area: Assign a trigger(virtual input) to trigger an area action. Choose an Area from the drop-
down list before you click the Assign button. For more information see Triggers on the facing
page.
l Door: Assign a trigger (virtual input) to trigger door action. Choose a Door from the drop-down
list before you click the Assign button.
To display the list of configured triggers and actions, select Configuration > Advanced > Cause &
Effect > Cause & Effect List.
The Cause & Effect List page displays only fully functioning cause & effects. For example, if a mapping
gate is not assigned to a trigger or to a quick key, it is not displayed in the list.
WARNING: Your system will not comply with EN standards if you enable a trigger to set the system
without a valid PIN being required.
17.10.7.2 Mapping Gates
Triggers are used with Mapping Gates, which are virtual outputs defined by the user that can be mapped to
a physical output. There can be a maximum of 512 Mapping Gates.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 287 A6V10276959-d
11.2018
