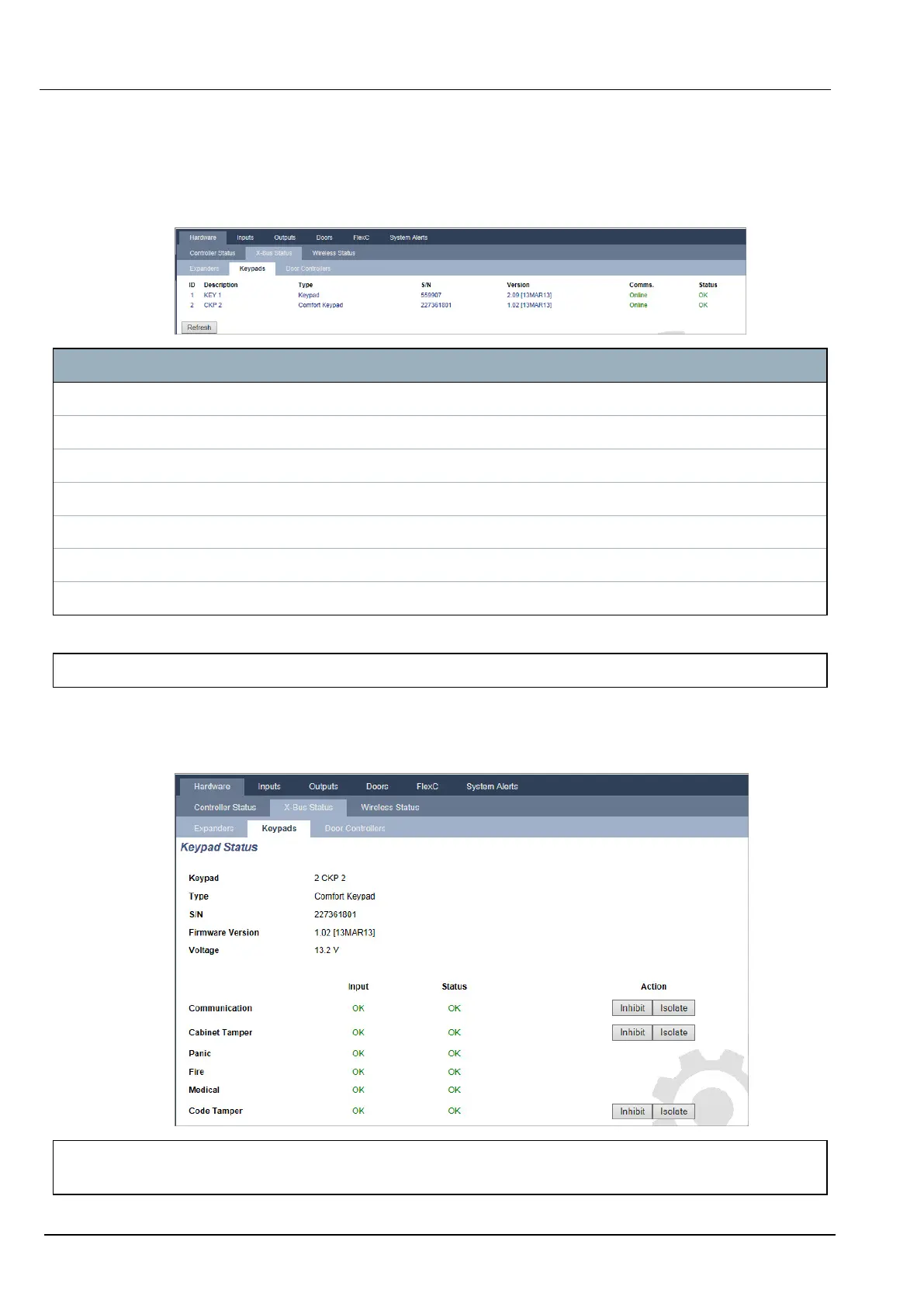

17.6.2.3 Keypad Status
1. Select Status > Hardware > X-Bus Status.
2. Select the Keypads tab.
A list of detected keypads is displayed.
Name Description
Expander ID This ID number is a unique identifier for the keypad.
Description Text description of the keypad (max. 16 characters).
Type The type of expander detected (=keypad).
S/N The serial number of the keypad.
Version The firmware version of the keypad.
Comms The status of the keypad (online or offline).
Status The status of the keypad (OK, Fault).
Performable actions
Refresh Click the Refresh button to update the list of detected keypads and their status.
To view more status information:
l Click a keypad’s identifying parameters (ID, description, type, serial number) to display further
status details.
Communication The physical status (OK, Fault) and the programmed status (OK, Isolated, Inhibited) of the
keypad cable connection to the expander.
