The battery flaps should be bent carefully as not to damage the battery. If any signs of a damaged
battery exist or any leakage of the electrolyte then the battery should be discarded as per the
current regulations and a new battery fitted.
6.3 Mounting a G5 housing
The SPC G5 housing comprises of a metallic base and front cover. The cover is attached to the base of
the housing by 4 securing screws located on the top and bottom of the front cover.
To open the housing, remove all the screws with the appropriate screwdriver and lift the cover directly
from the base.

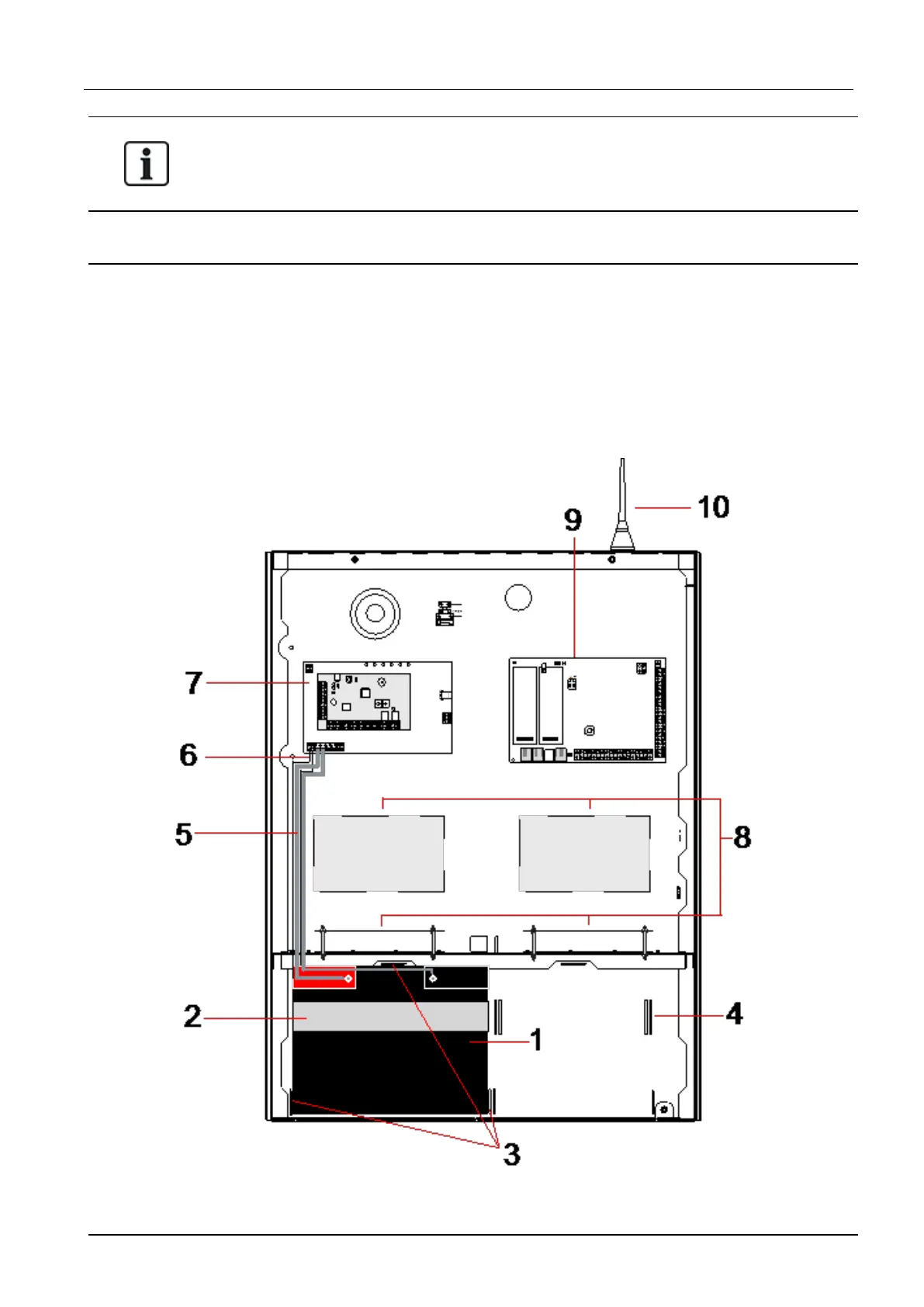

The G5 housing contains the controller PCB (Printed Circuit Board) and the SPCP355.300 Smart PSU,
both mounted on 4 support pillars. An 8 In/2 Output Expander is mounted on top of the PSU. Four extra
pillars are included to give you the option to mount the 8 In/2 Output Expander below the PSU board in
the G5 housing. Additional expanders can be installed in the housing as shown.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Mounting system equipment
© Vanderbilt 2018 51 A6V10276959-d
