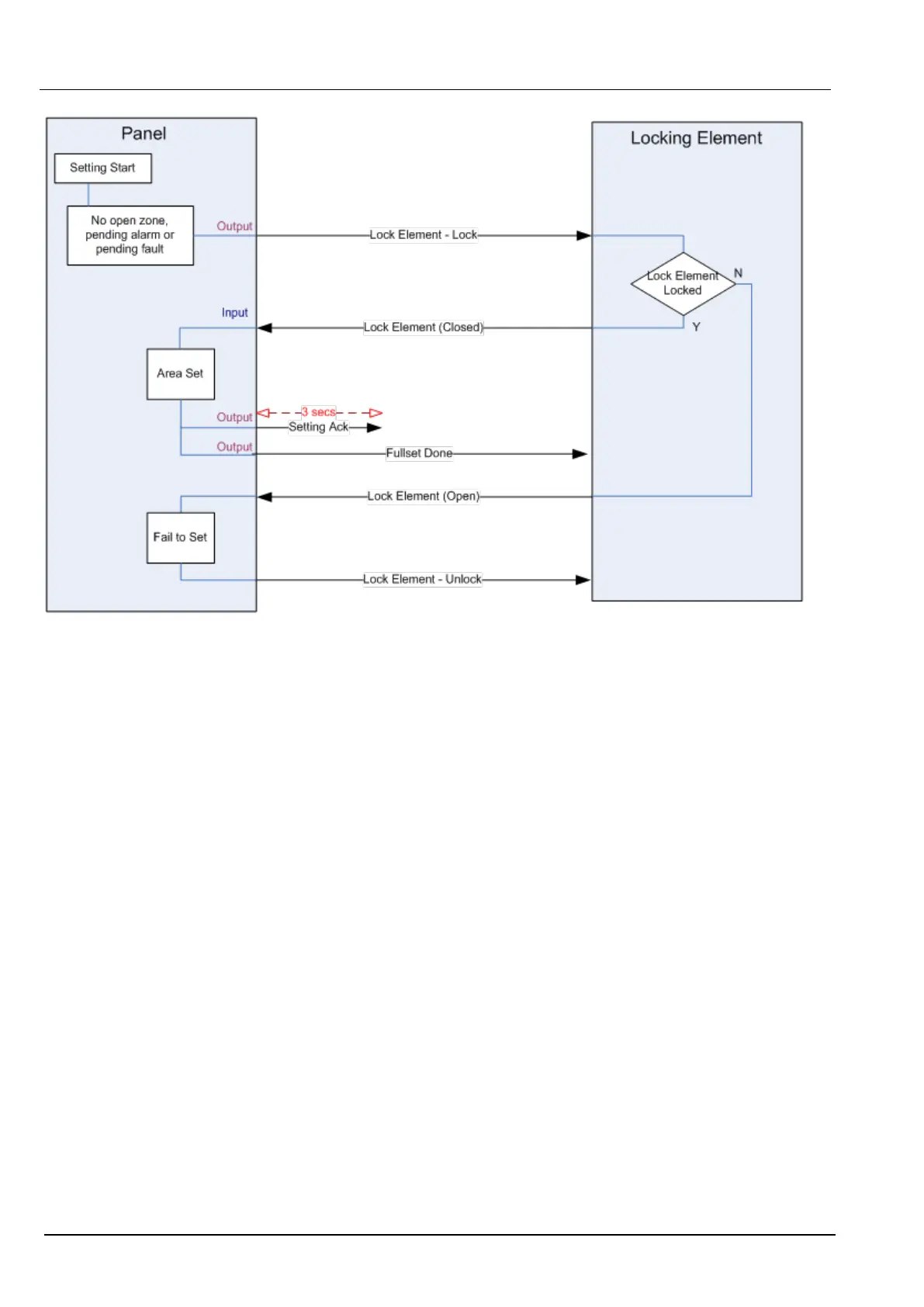

The configuration requirements for the lock element are as follows:

l Outputs:

– Lock Element – Lock

– Lock Element – Unlock

l Inputs

– Lock Element

SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Blocking Lock Operation

© Vanderbilt 2018 360 A6V10276959-d

11.2018
