Cable Type Distance
IYSTY 2x2x0.6(min) 400m

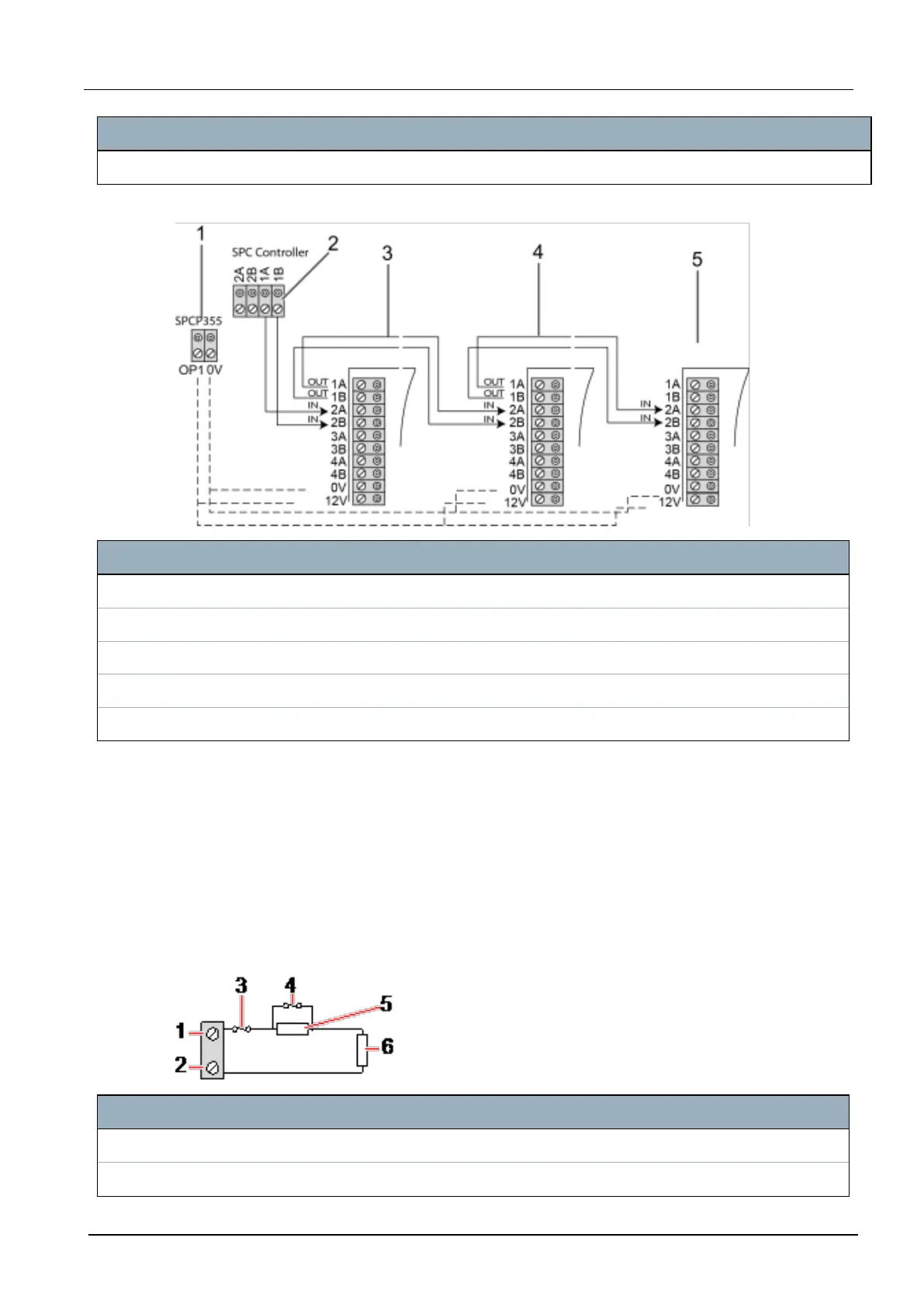

The following diagram shows an example of wiring the X-BUS:
Number Description
1 SPCP355.300 Smart PSU outputs
2 SPC Controller
3 SPCP355.300 Input/Output expander
4 Next expander
5 Next expander
7.1.3.1 Wiring the Inputs
The expander has 8 on-board zone inputs which can be configured as one of the following:
l No End of Line
l Single End of Line
l Dual End of Line
l Anti-Masking PIR
Default Configuration
The following diagram shows the default configuration, Double EOL 4k7:
Number Description
1 Input 1
2 COM
