Connect

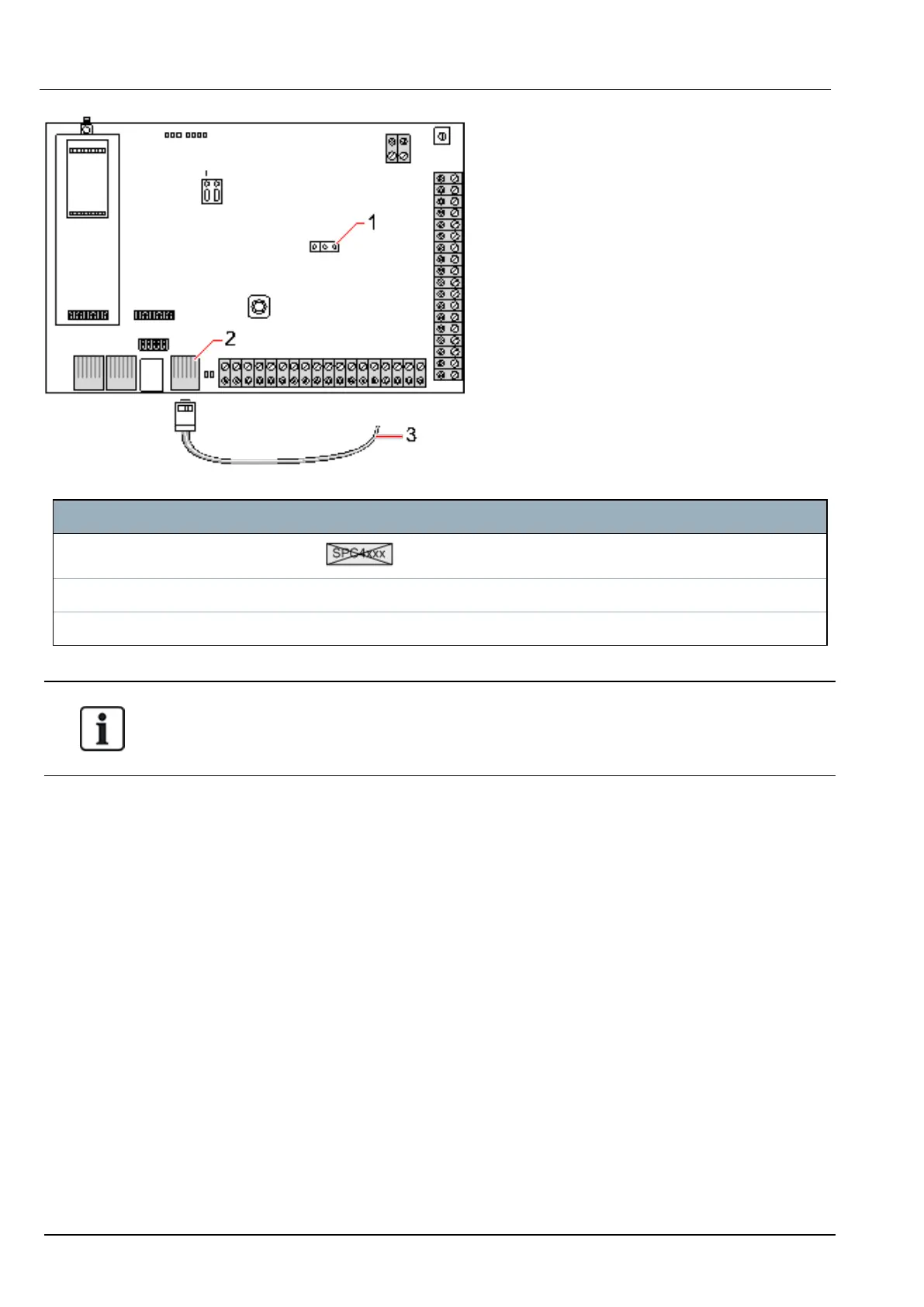

Number Description
1
JP9
2 Ethernet port
3 To Ethernet port on PC
If the SPC Ethernet interface is connected to an existing Local Area Network (LAN), consult the
network administrator for that LAN before connecting to the panel. Default IP Address:
192.168.1.100.
Connect the cable
l Connect an Ethernet cable from the Ethernet interface on the PC to the Ethernet port on the
controller board
– OR –
If connecting directly from a PC then a cross over-cable must be used. See Network cable
connections on page361.
The LEDs to the right of the Ethernet interface indicate a successful data connection (right LED on)
and Ethernet data traffic (left LED flashing).
Determine the IP address of the SPC controller
1. Entering the Engineer mode (see Engineer PINs on page106).
2. Using the up/down arrow keys, scroll down COMMUNICATION option and press SELECT.
3. Scroll to ETHERNET PORT and press SELECT.
4. Scroll to IP ADDRESS and press SELECT.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 173 A6V10276959-d
11.2018
